Help CenterPVC Cable
Related Products
Specifications
PVC cable1,Conductor: ALuminum,Copper
2,Insulation: XLPE
3,Jacket:PVC/PE
4,Armored:Option

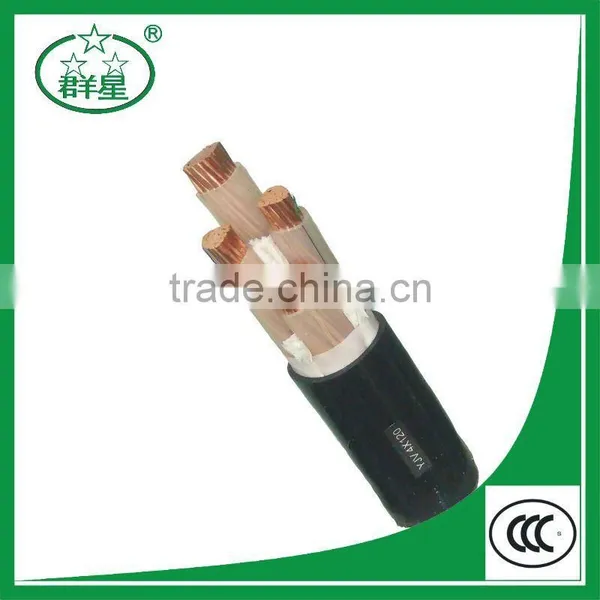

PVC cable
Conductor: copper (aluminum) stranded
Insulation: XLPE
Sheathed: PVC (PE)
Armored: steel tape/ steel wire /aluminum tape/ aluminum tape
Standard:
Products are produced and provided according to GB/T 12706.
>Not drop restriction on laying
>Stable & process performance
>Strong ability to adapt to the environment
>Short circuit (the longest duration of not more than 5s)
>The highest temperature of cable does not exceed 250 °C
>The maximum normal operating temperature of conductor 70°C
>Good flexibility, easy maintenance, installation, simple structure
>AC rated voltage 0.6/1kv,50 HZ for the fixed installation , transmission and distribution lines.
In cable laying, to ensure sufficient mechanical tension in the case of not drop restrictions, but the single core cable can’t be laid in the iron pipe, it’s also not permissible for using steel instrument around and fix the cable .During the cable laying ,its temperature is not less than zero, when the cable temperature is below zero, the appropriate method should be used cable heating to above zero.
Product Types:
copper(aluminum)conductor XLPE insulation PVC sheathed power cable (YJV,YJLV)
copper(aluminum)conductor XLPE insulation PE sheathed power cable (YJY,YJLY)
copper(aluminum)conductor XLPE insulation steel tape armored PVC s sheathed power cable (YJV22,YJLV22)
copper(aluminum)conductor XLPE insulation steel tape armored PE s sheathed power cable (YJY22,YJLY22)
copper(aluminum)conductor XLPE insulation thin steel-wire armored PVC sheathed power cable (YJV32,YJLV32)
copper(aluminum)conductor XLPE insulation thin steel-wire armored PE sheathed power cable (YJY32,YJLY32)
copper(aluminum)conductor XLPE insulation Thick steel-wire armored PVC sheathed power cable (YJV42,YJLV42)
copper(aluminum)conductor XLPE insulation Thick steel-wire armored PE sheathed power cable (YJY42,YJLY42)
10564
No.of Core ×Cross-sectional Area (mm2)
Approx.Outer Diameter (mm)
Approx.Weight kg/km
Non-armoured
Steel tape armoured
Steel wire armoured
YJV
YJLV
YJV22
YJLV22
YJV32
YJLV32
4×4
13
16
18
261
164
418
322
657
561
4×6
14
17
19
345
207
518
381
778
651
4×10
17
20
22
535
290
744
499
1064
819
4×16
20
23
25
783
390
1020
627
1532
1139
4×25
23
26
28
1167
550
1439
822
2029
1412
4×35
26
29
31
1547
694
1851
998
2502
1648
4×50
27
30
33
2090
912
2420
1241
3337
2158
4×70
31
35
37
2901
1214
3596
1909
4300
2613
4×95
35
40
42
3882
1570
4694
2382
5489
3177
4×120
39
43
46
4830
1927
5716
2913
7010
4108
4×150
43
48
51
6040
2395
7068
3423
8494
4848
4×185
48
53
56
7502
2961
8645
4104
10169
5628
4×240
54
59
62
9548
3695
10874
5022
12613
6761
4×300
59
65
68
11919
4554
13384
6019
15343
7979
4×400
66
72
77
15530
5859
171219
7548
20235
