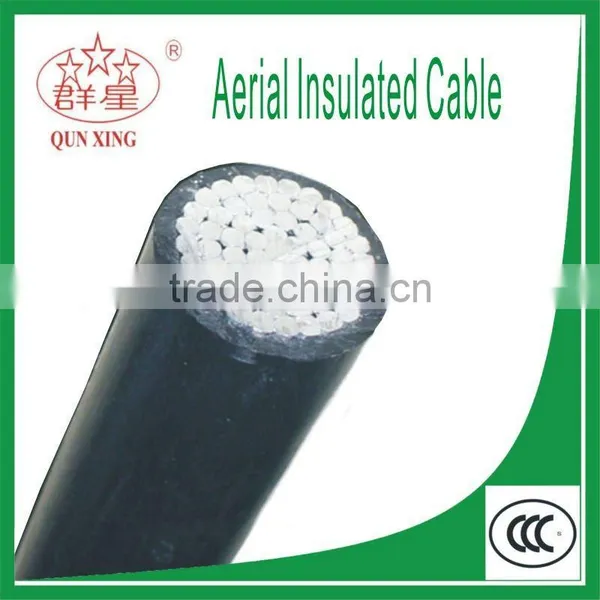

1. Standards:

Producing according GB 12527-90 and GB 14049-93 standards.

2. Application:

Aerial cables are mostly used for telecommunication systems or for power transmissions with voltages below 1000 volts. Aerial cable for voltages around 10000 volts have also been built, for the supply of farms, waterworks, transmitters and other facilities outside urban areas. A further common use is the replacement of overhead telecommunication lines, for example, along railway line, by aerial cables as they can be installed on existing poles and make the facility more reliable.

3. Features:

1). Rated Voltage: 1kV, 10kV

2). Operating temperature: 70 °C(PVC Insulated)

                                                                 70 °C(PE Insulated)

                                                                 75 °C(HDPE Insulated)

                                                                 90 °C(XLPE Insulated)

3). Max. temperature while short-circuit (within 5 seconds):

   160 °C(PVC Insulated)

   130 °C(PE Insulated)

   150 °C(HDPE Insulated)

   250 °C(XLPE Insulated)

4). Minimum Bending Radius: (for ≤1kV )

Overall diameter<25mm:4×overall diameter;

Overall diameter≥25mm: 6×overall diameter

Minimum Bending Radius: (for 10kV )

Single core cable:20×(overall diameter + overall conductor diameter) ±5%mm

4. Type and description:

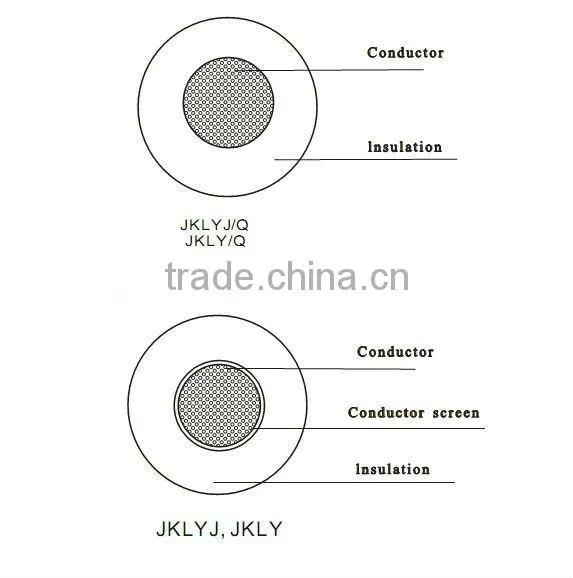

5. Aerial Insulated Cable Structrual Drawings:
