Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Control Flexible Cable
US$ 0.1 - 10
MOQ: 1 Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Qunxing
Model Number:
KVV,KVVP,KVV22
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangxi, China
Brand Name
Qunxing
Model Number
KVV,KVVP,KVV22
Insulation Material
PVC
Type
Low Voltage
Application
Industrial
Conductor Material
Copper
Jacket
PVC

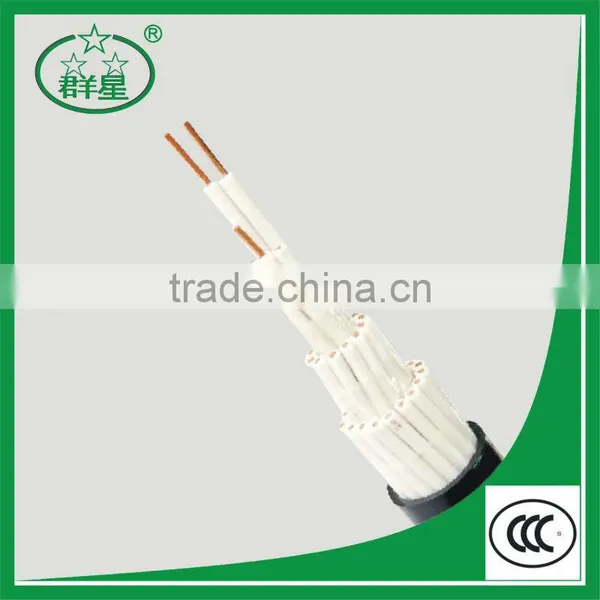

control flexible cable
Application:
Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected, and in dry or moist conditions indoors.
Standards:
GB9330
Conductor:
Flexible copper conductors to
Insulation:
PVC
Sheath:
PVC
Sheath Color:
Grey
Voltage Rating:
450/750V
Temperature Rating:
70°C
Minimum Bending Radius:
6 x overall diameter
Core Identification:
Black with White numbers. (3 cores and above to include Green/Yellow). Colored cores available.
| No. of Cores x Nominal Cross | Nominal Overall Diameter | Nominal Weight | No. of Cores x Nominal Cross | Nominal Overall Diameter | Nominal Weight |
| Sectional Area# x mm² | mm | kg/ Km | Sectional Area# x mm² | mm | kg/ Km |
| 2 x 0.50 | 4.7 | 32 | 3 x 16.00 | 18.2 | 653 |
| 2 x 0.75 | 5.1 | 39 | 4 x 0.50 | 5.4 | 46 |
| 2 x 1.00 | 5.3 | 49 | 4 x 0.75 | 5.9 | 59 |
| 2 x 1.50 | 6.2 | 61 | 4 x 1.00 | 6.5 | 69 |
| 2 x 2.50 | 7.3 | 92 | 4 x 1.50 | 7.4 | 92 |
| 3 x 0.50 | 5.1 | 39 | 4 x 2.50 | 8.5 | 148 |
| 3 x 0.75 | 5.4 | 50 | 4 x 4.00 | 10.2 | 219 |
| 3 x 1.00 | 5.6 | 60 | 4 x 6.00 | 12.3 | 323 |
| 3 x 1.50 | 6.5 | 79 | 4 x 10.00 | 15 | 513 |
| 3 x 2.50 | 7.7 | 119 | 4 x 16.00 | 19.2 | 844 |
| 3 x 4.00 | 9.3 | 176 | 4 x 25.00 | 23 | 1252 |
| 3 x 6.00 | 11 | 255 | 4 x 35.00 | 26.7 | 1658 |
| 3 x 10.00 | 14 | 411 | 4 x 50.00 | 31.5 | 2360 |
