Output 100 Ton/hour Sea Sand Desalination Machine ,sea Sand Washing Machine

output 100 ton/hour sea sand desalination machine ,sea sand washing machine

output 100ton/hour sea sand desalination machine product description:

1 why we need wash sea sand?

Sea sand  main character is itself have corrosive chloride ion etc alkaline material in it,so will corrosive building's reinforced,so will reduce building service life.Our company careful analysis sea sand's composition,also listen to customer using reaction,combining the experience of home and abroad,desing and produce new type sea sand washing and desalination equipment.

   Sea sand washing desalination equipment is a kinds of continue desalination assembly line equipment,first sea sand by belt conveyor from feeder transport to trommel screening the sea sand,by trommel screening sea sand,remove the shells and pebbles,then will enter nex layers vibrating screen,second time sieve the smaller shells and pebbles,then next will enter washing pools wash the sea sand.This sea sand washing machine general washing process.

sea sand washing and desalination wrok principle:

Sea sand washing machine work principle:use fresh water repeated wash,let sand chloride ion and other standard all can reach demand standard.

  This sea sand washing plant have very high automation,discharge sewage jsut have muds,no pollution,is a environment equipment.

washing sand plant work process:

(1) the raw material supply by customer self

(2) the raw sand first enter feeder,by conveyor belt transport it to the trommel screening the sand,separate shells and pebbles from the raw material,and at same time add water first time washing it.

(3) the qualified raw material will be transported to the rotary sand wahing plant/sprial sand washing plant,by knead and friction  destroy the sea sand surface biofilm,separate the biofilm from sea sand,using fresh water washed the falling off biofilm,this is second time washing sea sand.

(4) after rotary sea sand washing or sprial sea sand washing ,need by chian bucket sea sand wahing machine thorough washing off the biofilm,these time will soak sand ,then bucket lifting it on and dry it,these process need 3 times.

(5) the last step,by outlet transport finished fine sand to the dumping place.

this sea sand washing machine advantage and features:

1. sea sand washing machine sand washing machine is of simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2. When sea sand washing machine sand washing machine is used for cleaning sand in quarries, it has many advantages compared with the traditional spiral one.
3. There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as "sand for construction" and "cobble and broken stones for construction".
4. There are no other wearing parts except the screen mesh.
5. It features of long service life and few times for maintenance.

output 100ton hour  sea sand desalination machine detail specification list :

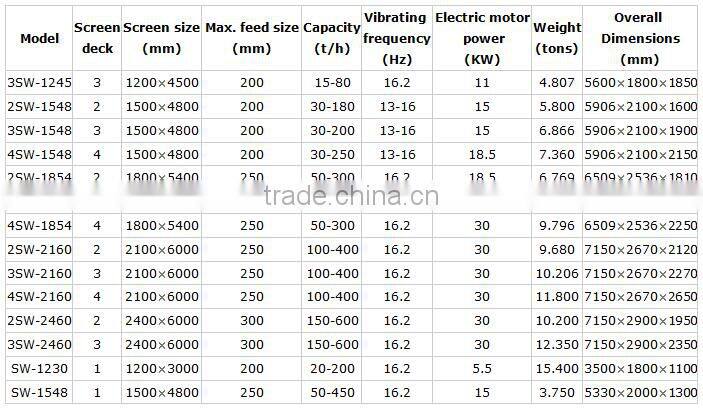

sand washing plant,sand sieve machine ,sand sieving machine,sand vibrating sieve machine some specification you can reference:

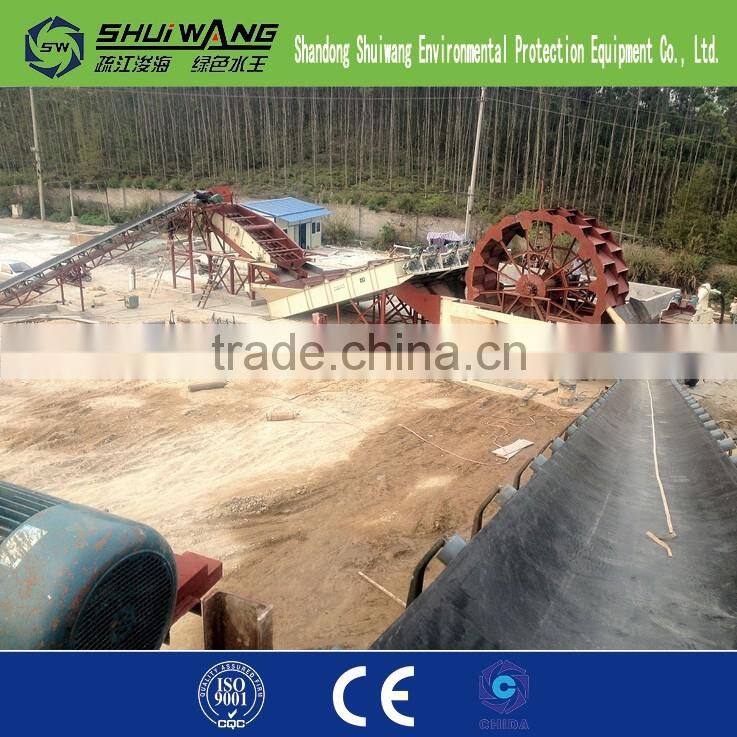

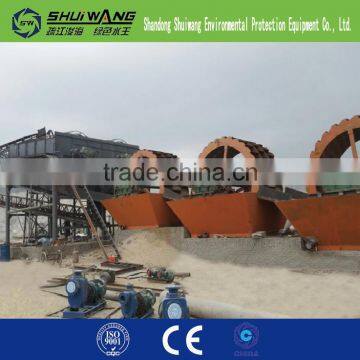

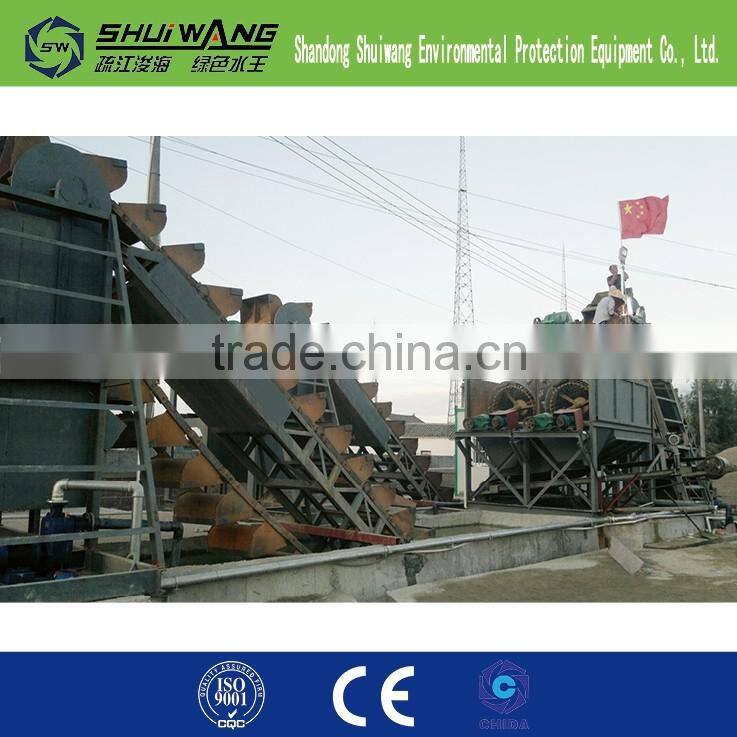

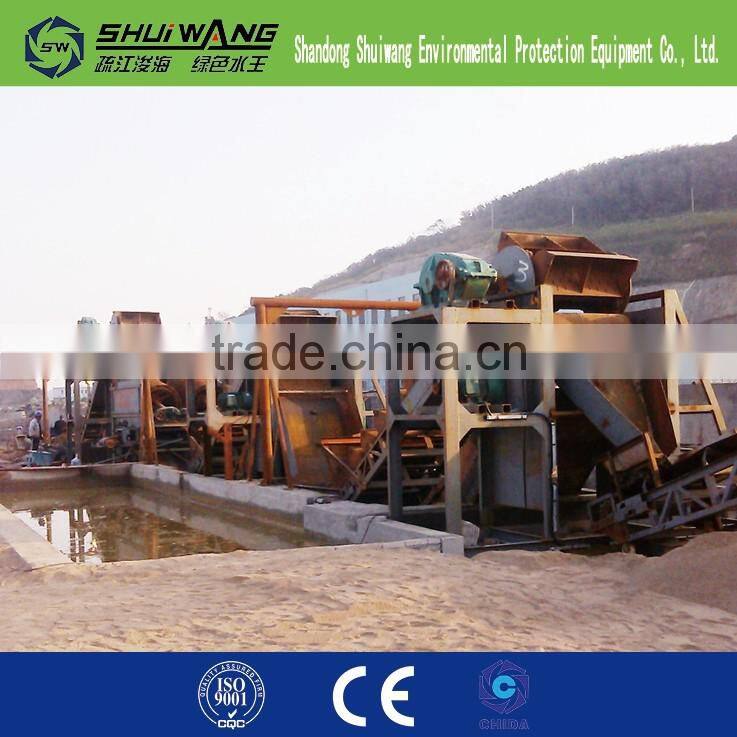

some of our sea sand desalination machine work picture you can see:

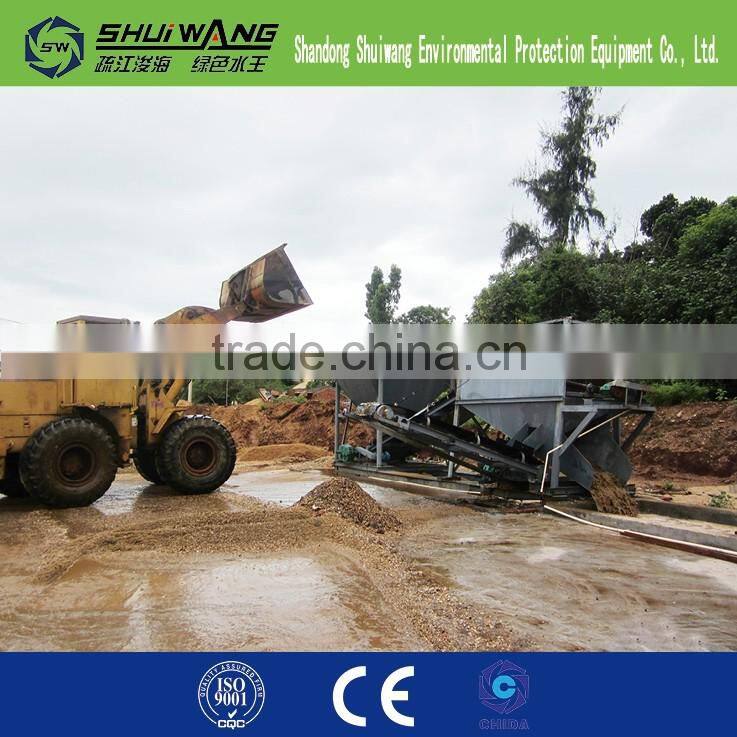

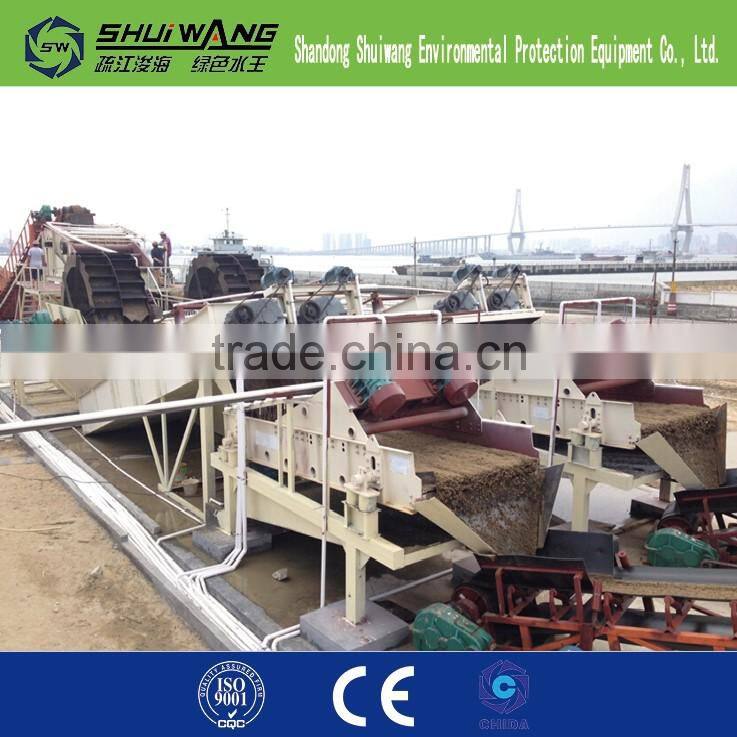

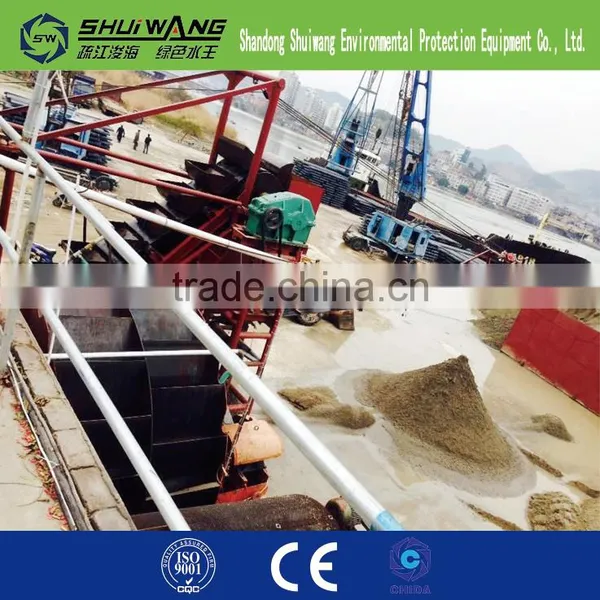

our sea sand desalination work in  Malaysia:

some of our sea sand desalination machine complements:

raw material feeder:

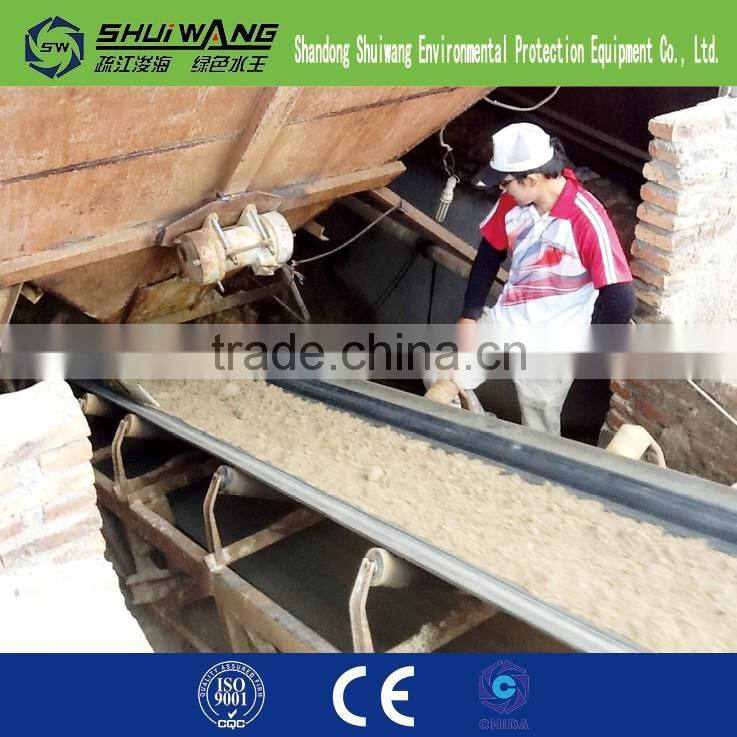

sand conveyor belt:

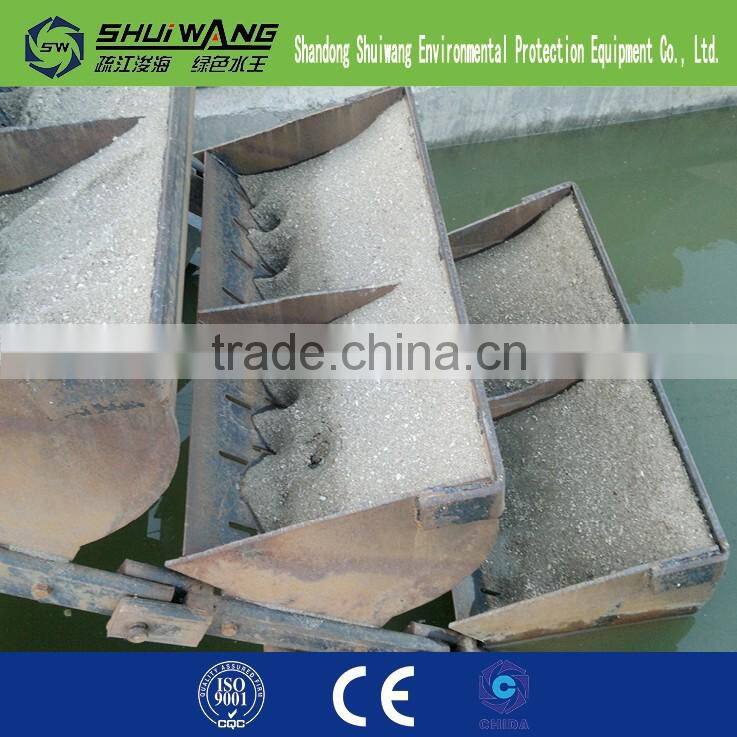

sand washing process bucket:

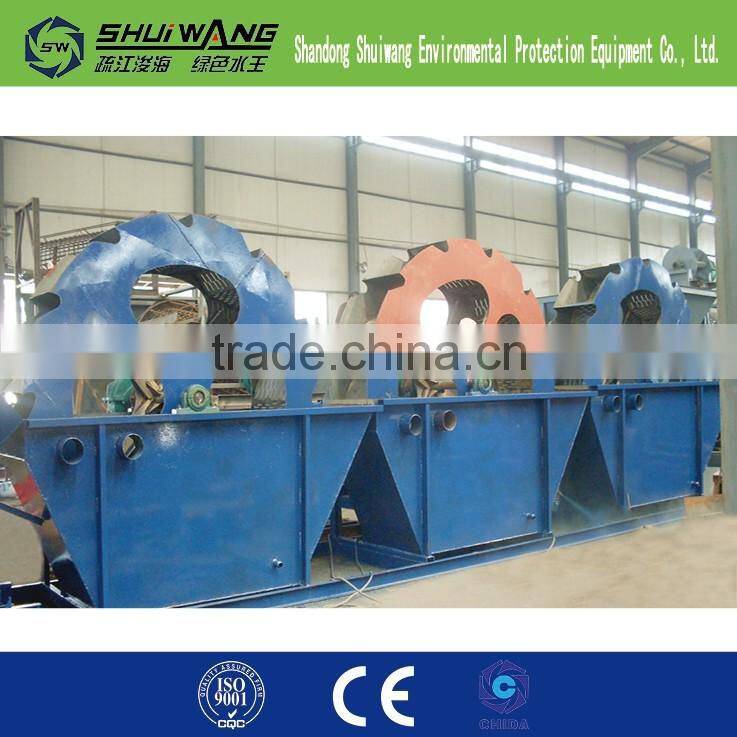

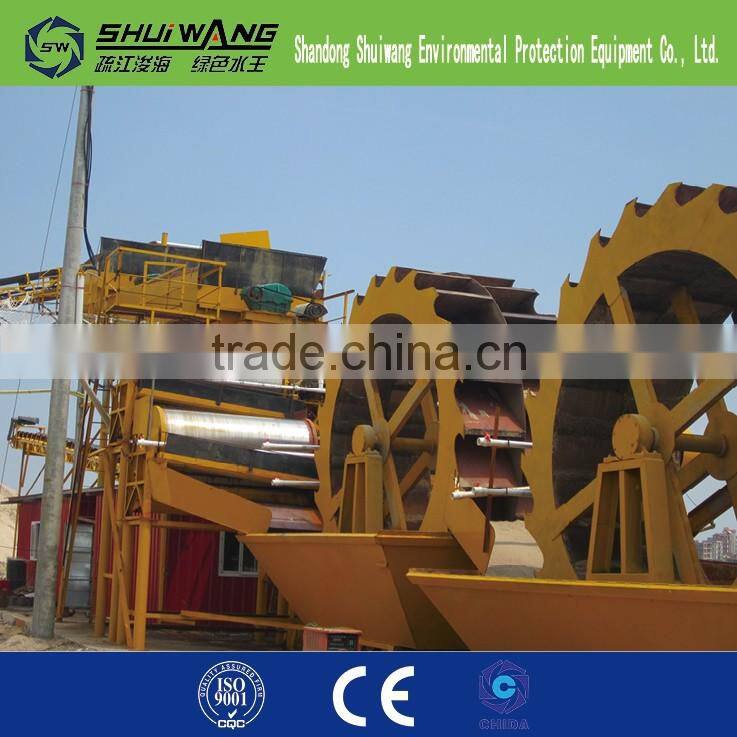

rotary type sea sand desalination machine:

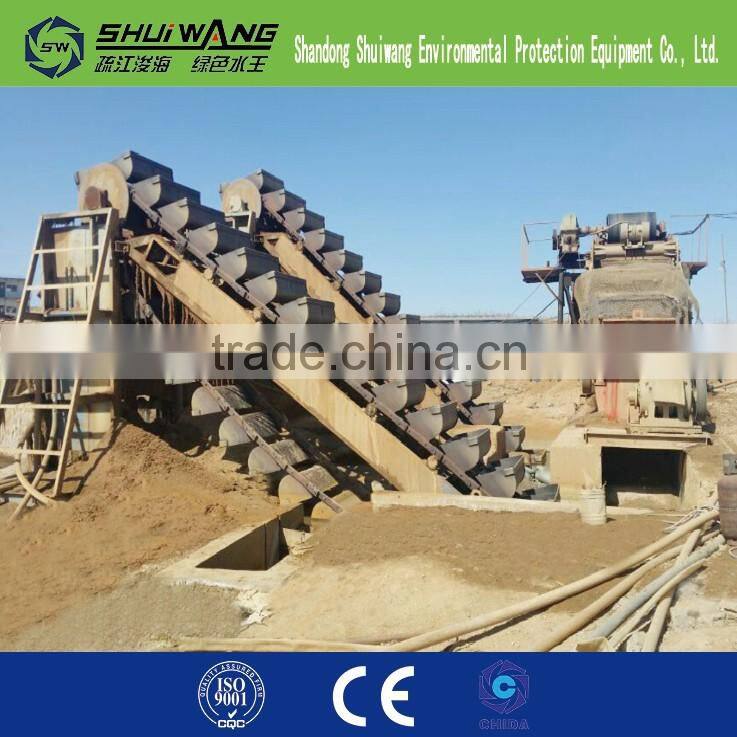

bucket type sea sand desalination machine:

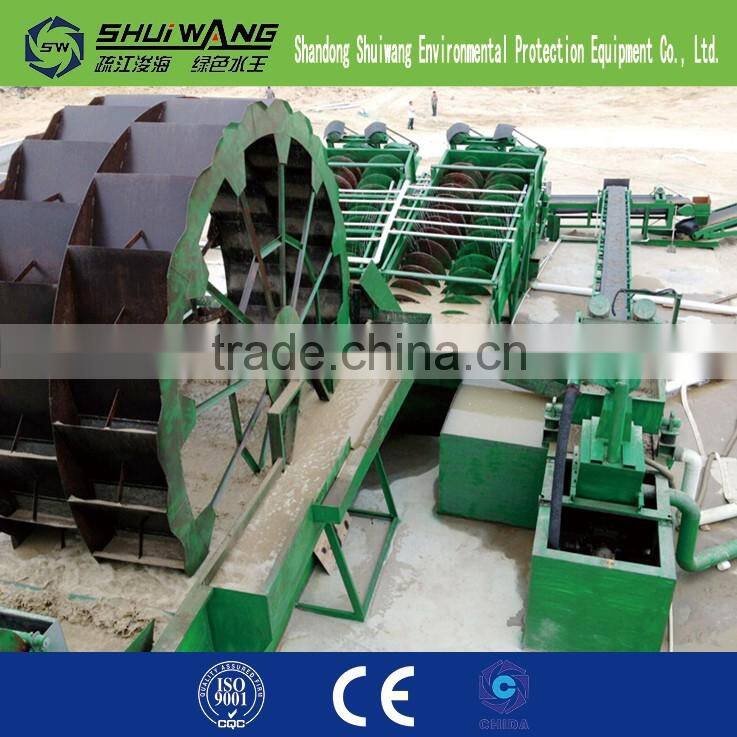

rotary type + sprial type  work together :

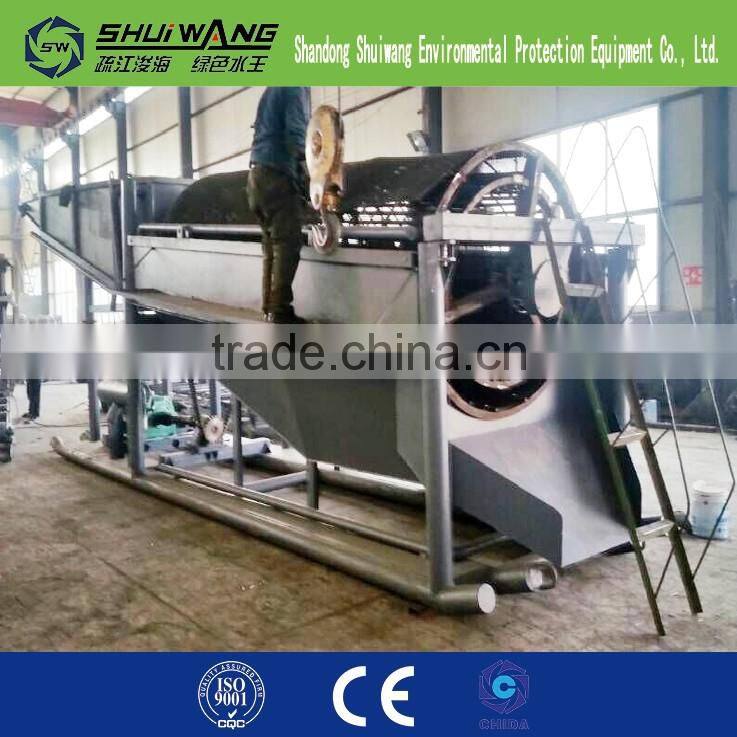

trommel type screening and washing sand machine :

sea sand dewatering machine:

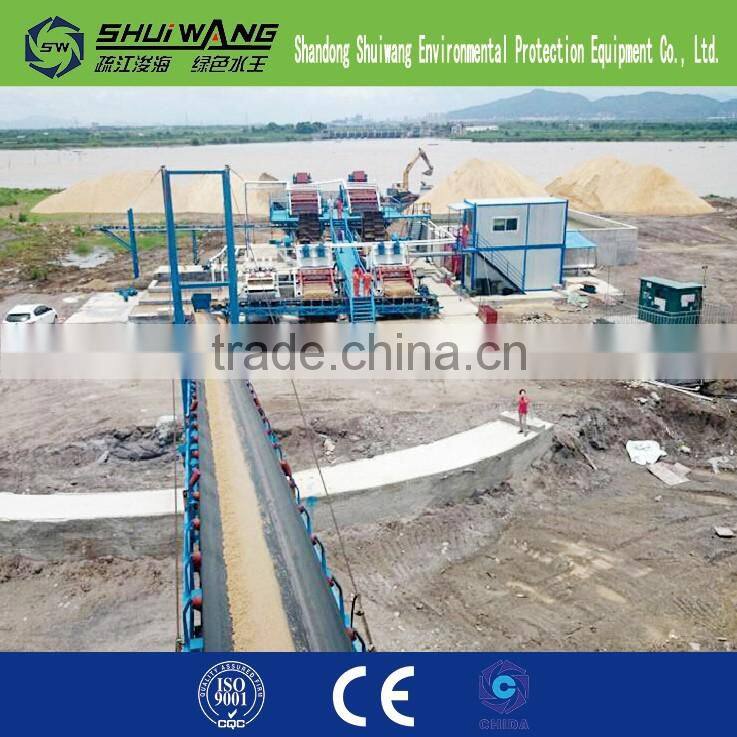

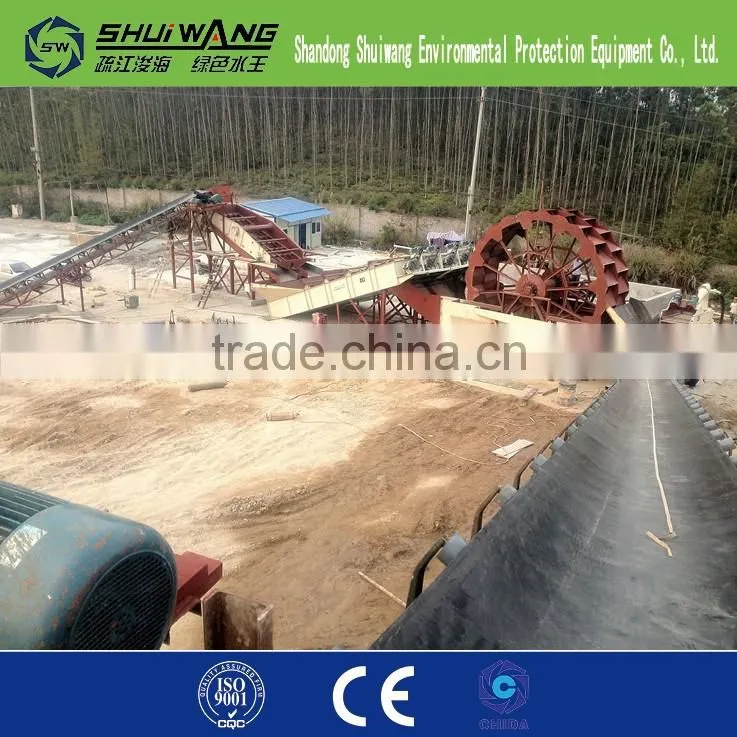

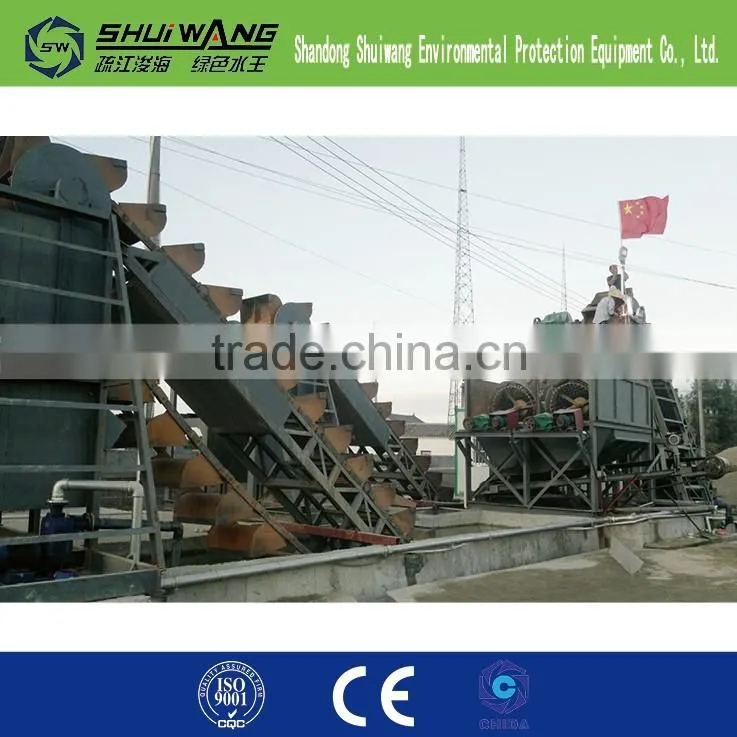

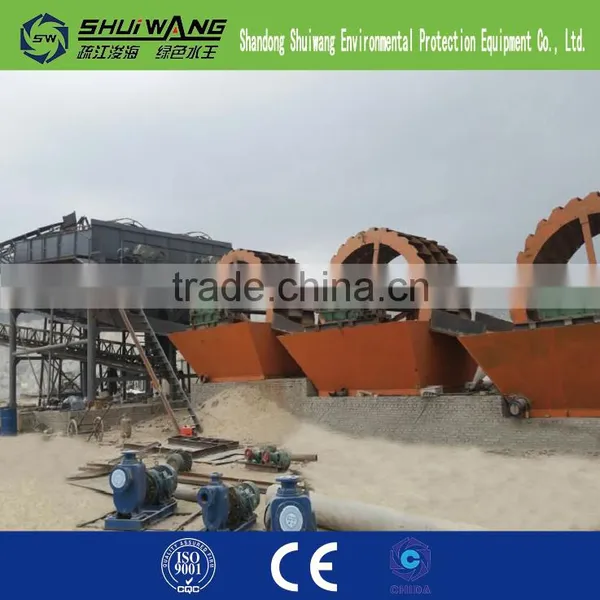

some of sea sand desalination production line:

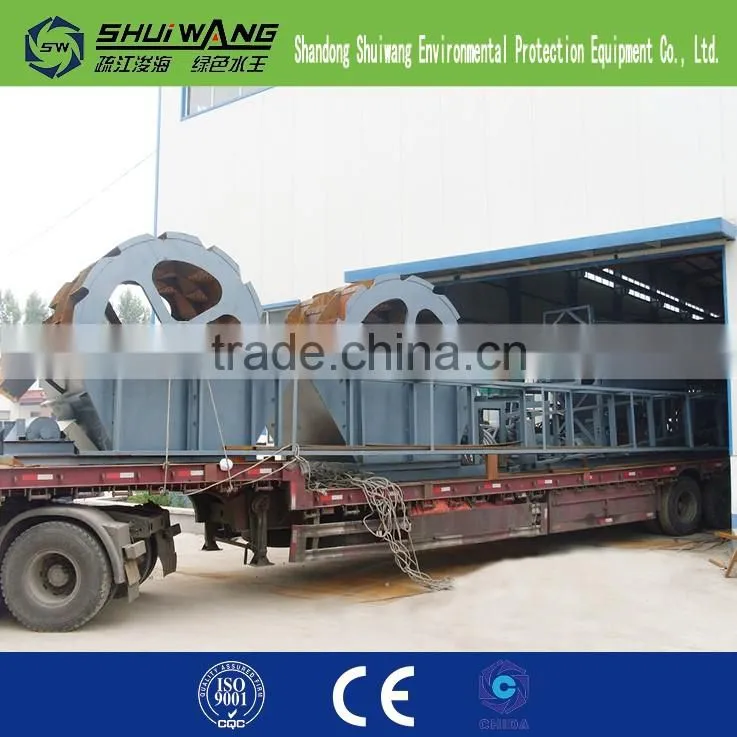

some of our sea sand desalination machine packing & shipping picture:

sea sand desalination machine some of our services:

1 we have very professional engineers,some question you can consult them,our engineer had in sea sand desalination area have many years experience

2 we have 1 years free warrant time

3 our engineers can go to your place guide and installation it

4  before you send inquiry to me,please must note how much salt your raw material sand have?
