china wheel loaders mini loader wheel loader sale good price
Features
Turbocharged engine conforms to National Stage II emission standards and has larger torque reserve and lower fuel consumption.
• Brand new design of cooling system meets the requirements for -20℃ ~ +43℃ ambient conditions.
• High pressure work system and steering hydraulic system provides shorter work cycle time and more convenient steering.
• Working pump, pilot valve and priority valve adopt products of world-famous brands, DIN/SAE standard high pressure hose is made at Caterpillar Wuxi plant, and the pipeline layout is optimized.
• Hydraulic system can choose either pilot or mechanical control, which features less efforts and quick operation.
• Self-made fixed axle transmission features multiple improvements for high reliability.
• One-piece 600 series enclosed cab has good vibration absorption and soundproof effect and a wide view.
• Enlarged booster pump further improves brake performance.
• New reinforced frame is designed with FEA process and is proven in use.
• Brand new design of electric system further improves reliability and comfort.
• Multiple variant working devices meet various needs and requirements for different work conditions.
• The overall design meets China’s mandatory noise and safety standards.
Parameters of SW50F- II
Model | SW50F-II |
Bucket Capacity | 2.7-4.5 m3 |
Rated Load Capacity | 5000 kg |
Operating Weight | 16200 kg |
Max. Drawbar Pull | 161 kN |
Max. Breakout Force | 177 kN |
Max. Gradeability | 28° |
Min. Turning Radius (Outside of Bucket) | 6780 mm |
Min. Turning Radius (Outer Tire) | 5772 mm |
Cycle Time (Bucket lifting, tipping and lowering) | 9.6 s |
Dump Height | 3142 mm |
Dump Reach | 1214mm |
Wheelbase | 3200 mm |
Overall Dimensions (L×W×H) (mm) | 7955×3068×3406 |
Engine | |
Model | Sinotruck Steyr D10.21AT21National Stage II emission standards |
Type | In-line, vertical, water cooling, 4-stroke |
Rated Power | 154 kW |
Max. Torque | 920 Nm |
Drive System | |
Torque Converter | YJ375 |
Type | Single stage, 3 elements, centripetal type |
Transmission Type | Fixed axle, constant engaged power shift |
Speed Gears | 4 forward, 4 reverse |
Max. Speed. | 41.3 km/hr |
Front/Rear Drive Axle | Xuzhou Meritor drive axle,4WD, fixed front axle, swing rear axle(±12°) |
Steering System | |
Type | Articulated frame, load sensing steering, steering priority |
Steering Angle (left/right) | 38°±1 |
Hydraulic System | |
Hydraulic System Pressure | 17 MPa |
Operation Mode | Hydraulic pilot proportional control/ mechanical control |
Brake System | |
Service Brake | Single circuit, air-over-oil 4-wheel caliper disc brake |
Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
Tires | |
Size | 23.5-25 |
Volume | |
Fuel Tank | 260 L |
Hydraulic System | 150 L |
Optional Devices | |
Weichai WD10G210E22National Stage II emission standards | |
side dump bucket/sand bucket/rock bucket /rock bucket with inclined cutting edge | |
Long reach arm / coal bucket and long reach arm | |
Desert tires | |
FOPS | |
Quick coupler and tools | |

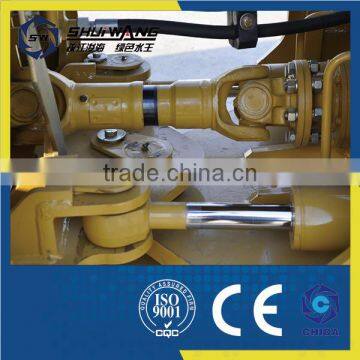

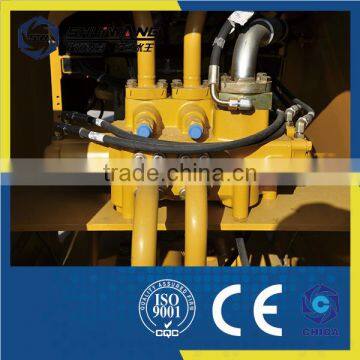

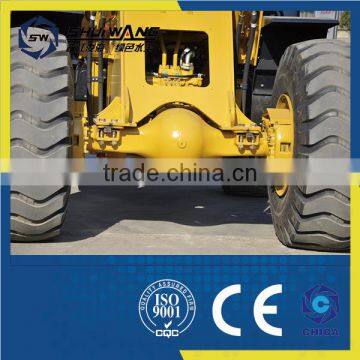

pictures of some parts
Shuiwang company can provide a complete package of spare parts, maintenance support,
equipment training programmes, operating advisory services and operators for hands-on instruction and commissioning.
1.Guarantee period: 1 year after the date of completion of unloading of the goods at the
port of destination.
2.After the warranty expires,our company promises that we will provide a pay-needed
maintenance service for life.
Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.
We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.
With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.
