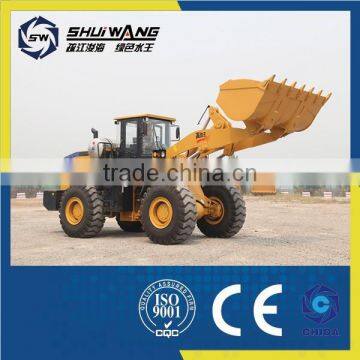

high quality SW new farm loader farm machinery on sale good price
Features
LNG engine saves energy by more than 30%.
• Green and environmental care, long engine overhaul interval.
• Specially designed LNG engine achieves perfect match with SW drive train system, and it can compete with diesel engines in terms of overall response performance.
• Specially optimized cooling system for LNG engine.
• Fluid reservoir is enlarged by more than 10%, which prolongs the time of single work shift.
• Fluid reservoir vibration absorption device is optimized according to work conditions and it effectively ensures safety under tough work conditions and speed up travel process, and it also prolongs the service life of the fluid reservoir.
• Rear camera is mounted as standard configuration, thus there is no blind angle and it is more safe.
• Based on 650B, it can meet the requirements for heavy load work conditions.
• Closed loop control system of world-famous brand precisely controls the intake and combustion, which is more energy saving.
• Electric throttle features precise control and quick response.
• High performance PS bucket features high durability, larger penetration force and high efficiency.
Parameters of SW650BLNG
Model | SW650BLNG |
Bucket Capacity | 2.7-4.5 m3 |
Rated Load Capacity | 5000 kg |
Operating Weight | 16700 kg |
Max. Drawbar Pull | 162 kN |
Max. Breakout Force | 163 kN |
Max. Gradeability | 30° |
Min. Turning Radius (Outside of Bucket) | 5917 mm |
Min. Turning Radius (Outer Tire) | 6931 mm |
Cycle Time (Bucket lifting, tipping and lowering) | 10.4 s |
Dump Height | 3089 mm |
Dump Reach | 1267 mm |
Wheelbase | 3300 mm |
Dimensions (L×W×H) (mm) | 8247×3068×3409 |
Engine | |
Model | Sinotruck Steyr D10.22AT21National Stage II emission standards |
Type | In-line, vertical, water cooling, 4-stroke |
Rated Power | 162 kW |
Max. Torque | 920 Nm |
Drive System | |
Torque Converter | YJ375 |
Type | Single stage, 3 elements, centripetal type |
Transmission Type | Fixed axle, constant engaged power shift |
Speed Gears | 4 forward, 4 reverse |
Max. Speed | 41 km/hr |
Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12°) |
Steering System | |
Type | Articulated frame, load sensing steering, steering priority |
Steering Angle (left/right) | 38°±1 |
Hydraulic System | |
Hydraulic System Pressure | 19 MPa |
Operation Mode | Hydraulic pilot proportional control |
Brake System | |
Service Brake | Single circuit, air-over-oil 4-wheel caliper disc brake |
Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
Tires | |
Size | 23.5-25 |
Volume | |
Fuel Tank | 273L |
Hydraulic System | 140L |
Optional Devices | |
Weichai WD10G210E22National Stage II emission standards | Shanghai C6121 National Stage II engine SC11CB220.1G2B1 |
Xuzhou Meritor drive axle | Rock bucket with inclined cutting edge/rock bucket/ sand bucket/side dump bucket/log grab |
Coal bucket and long reach arm | Desert tires |
ROPS/FOPS/Warning Light | Quick coupler and tools |
pictures of some parts
Shuiwang company can provide a complete package of spare parts, maintenance support,
equipment training programmes, operating advisory services and operators for hands-on instruction and commissioning.
1.Guarantee period: 1 year after the date of completion of unloading of the goods at the
port of destination.
2.After the warranty expires,our company promises that we will provide a pay-needed
maintenance service for life.
Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.
We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.
With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.
