small tractors agricultural use
- 100 Set / Sets per Month
- Qingdao
Product Details
Condition: | New | Brand Name: | shuiwang | Model Number: | 668 |
Place of Origin: | Shandong, China | Type: | Backhoe Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 8510*3092*3440(mm) | Rated Load: | 6 tons | Certification: | ISO9001 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
small tractors agricultural use
product description:
china Ⅱ emission,optimize powder system,improve the lift the ability,improve the produce efficient,better oil consumption efficient
18 Mpa work hydraulic system pressure,high efficient and save energy,single lever control,save time and quick
weight become bigger,load ability become bigger,fuel tank move back,machine's stability become better,more convenient to add oil
cat technology,electric control set shaft transmission,reliability and durabiloity more leading

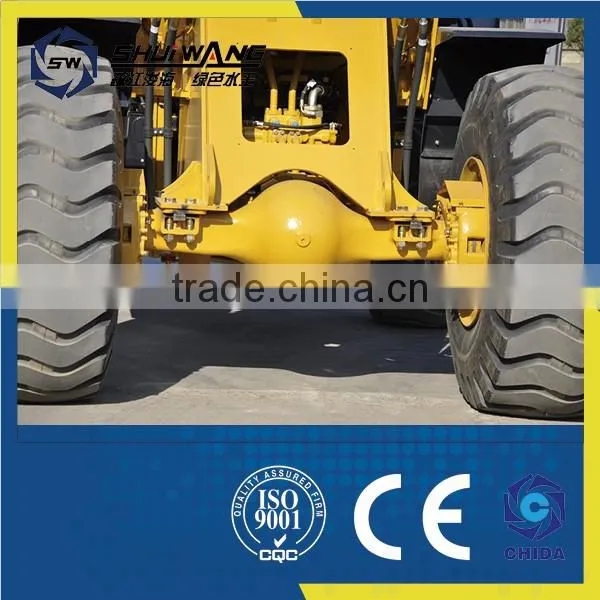

Cat technology,special design four chip front and after axle ,brake efficient high,reliability and durability more excellent
full new cooling system design,can satisfy -20°c-43°c environment temperature demand,also can satisfy 50°c high temperature demand cooling system
turn pressure improve ,turn become more relax and quick
engine installation reduce vibrating device,further improve the driveing room sealing function,reduce noise and vibrating
wuxi produce work pump,turn pump,SEA/DIN standard high pressure oil tube,and optimize tube design
brake assistor,brake gas tank move machine left center maintenance area,more convenient to maintenance

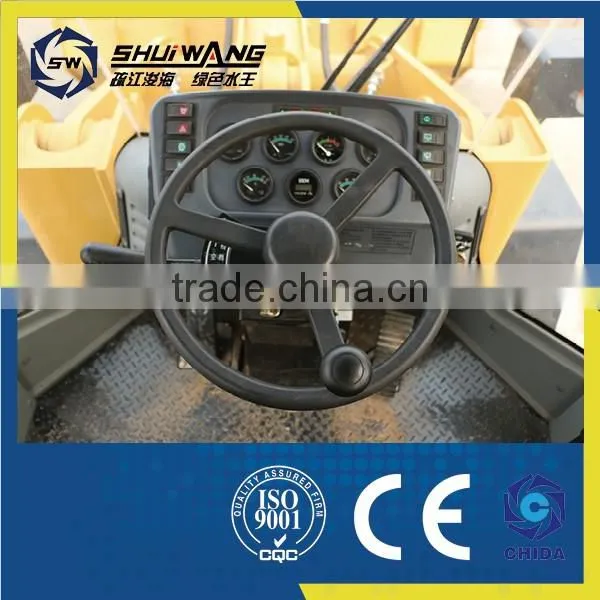

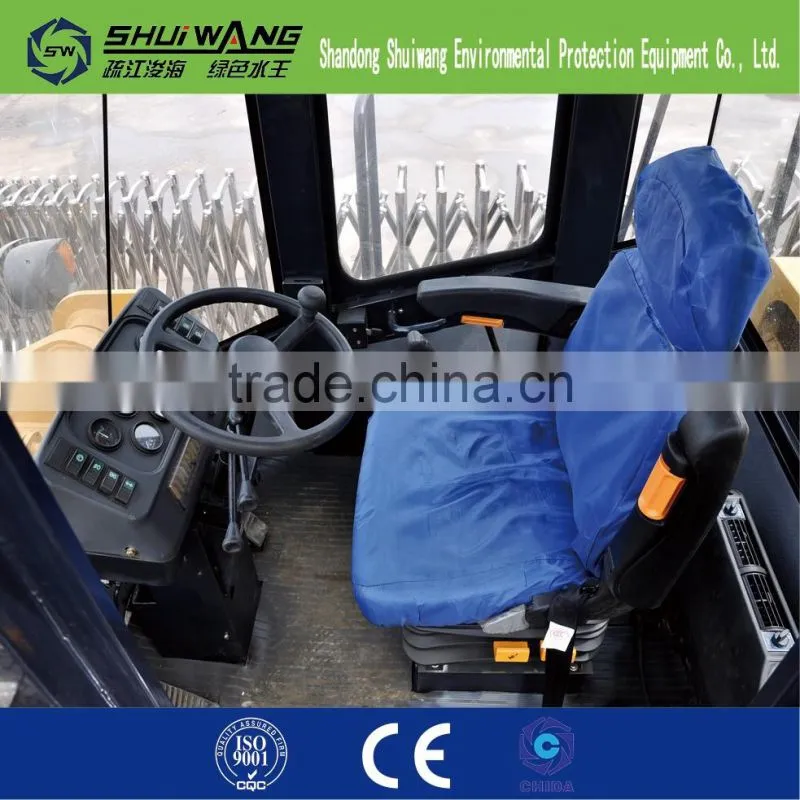

luxury driving room,seat,air condition and optimize control and operating system
the whole machine
the whole machine design can satisfy china's noise and safe standard
main technology datas:
model | 668c |
bucket capacity | 3.3-5.5m3 |
rated weight | 6000kg |
the whole machine operate weight | 19000kg |
max traction power | 170KN |
max climb ability | 30 ° |
min bending radius(outside of bucket) | 7050mm |
min bending radius(outside of tire) | 5940mm |
bucket lift ,tilting and falling down 3 items times | 10.2s |
dump height | 3050mm |
dump distance | 1280mm |
wheelbase | 3350mm |
dimensional | 8510*3092*3440mm |
engine | |

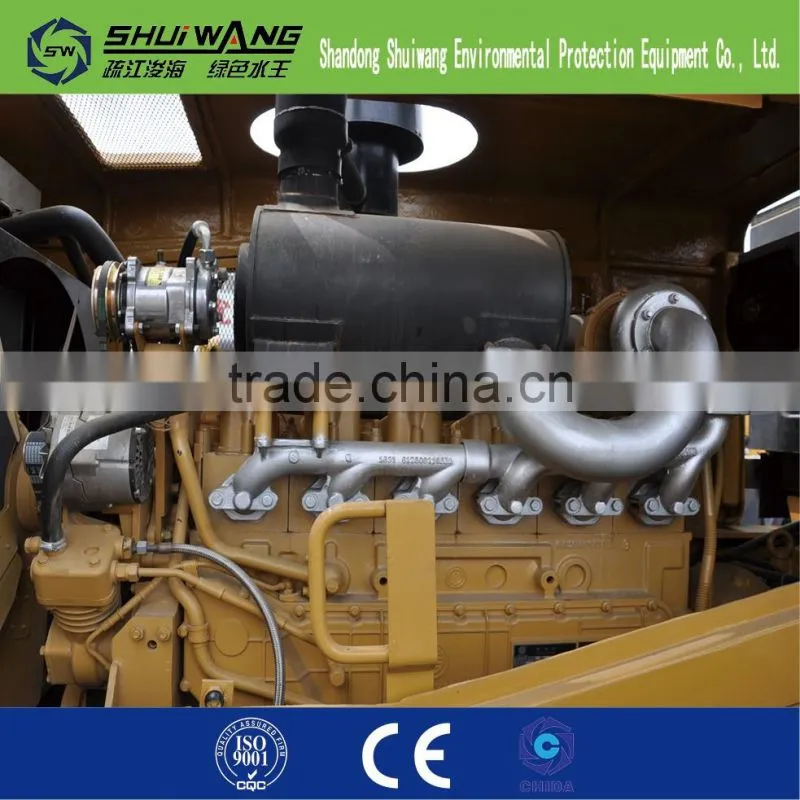

model | shangchaiSC11CB240 .1G 2B1 china Ⅱ emission |
form | inline,vertical,water-cooling,4 stroke |
rated powder | 175kw |
max torque | 950Nm |
transmission system | |
torque model | YJH340B |
type | single stage 3 complements and centrifugal type |
transmission form | electric control set shaft type |
gear | front 4 after 3 |
max speed | 33KM/h |
front and after axle | 4 wheel drive,front axle fixed,after axle swing(±12 °) |
turn system | |
type | coaxial flow amplifying steering |
turn Angel(left and right) | 38 ° ±1 |
work hydraulic system | |
work hydraulic system pressure | 18Mpa |
control system | hydraulic guide rate control |
brake system | |
crane brake | double circuit built-in wet type brake |
brake and emergency brake | barely able to mainpulate |
tire | |
specifications | 23.5-25-20PR |
oil tank capacity | |
oil tank capacity | 274L |
hydraulic system capacity | 230L |
can choose configuration and tools | |
Weichai WD10G240DE21 China Ⅱ emission inclined blade plate and rock bucket/rock bucket/load sand bucket/side dump hopper wooden fork/load coal bucket and extended arms/extended arms desert tire prevent roll device/prevent falling things device quick and tools
|

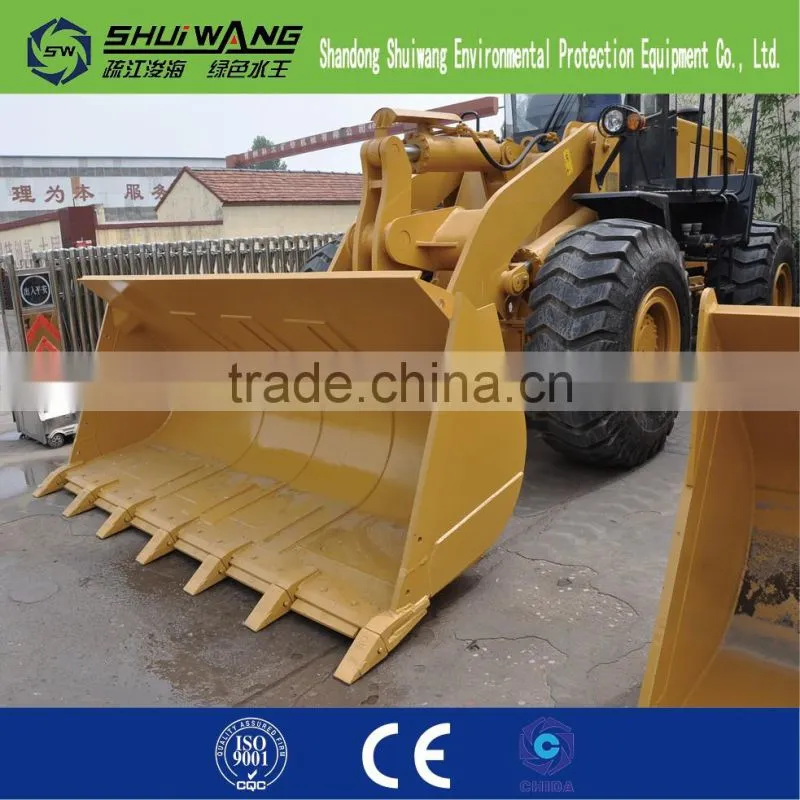

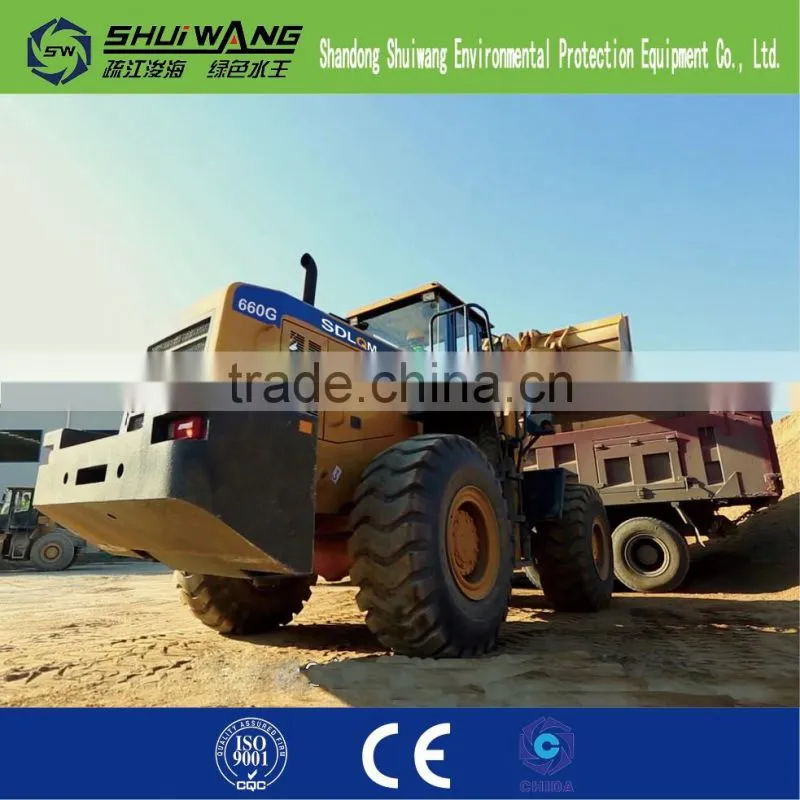

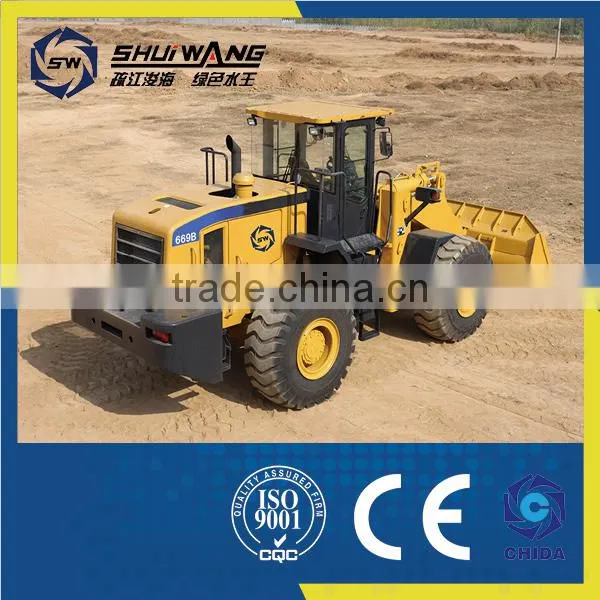

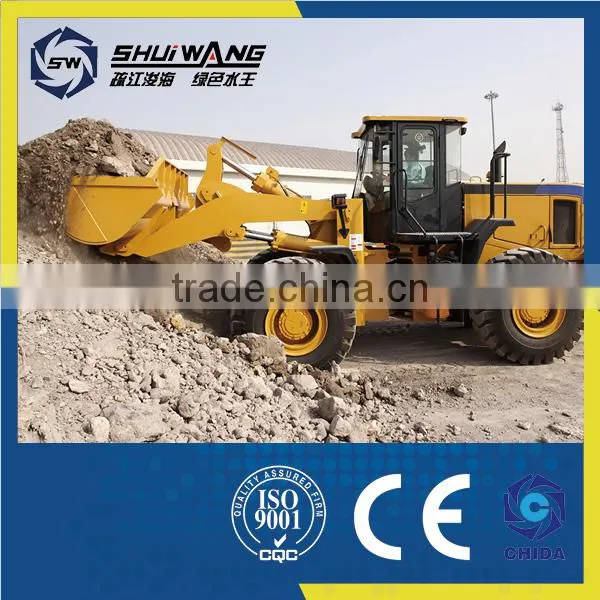

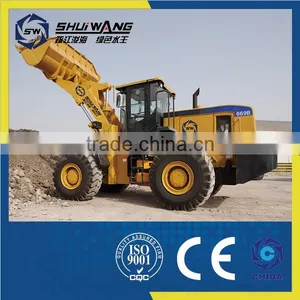

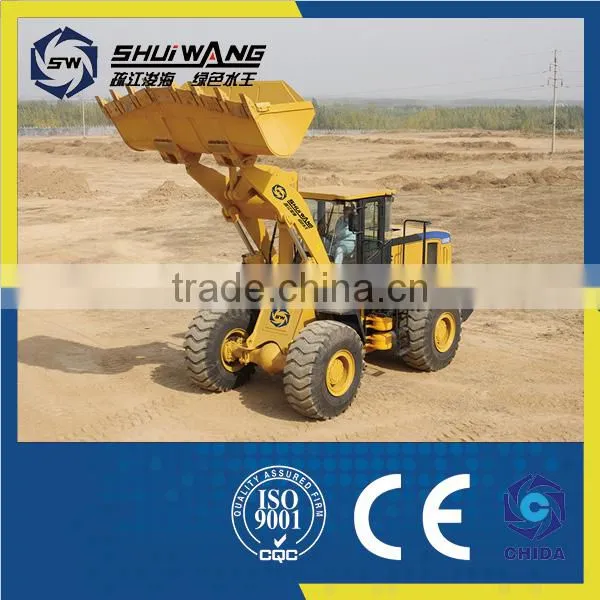

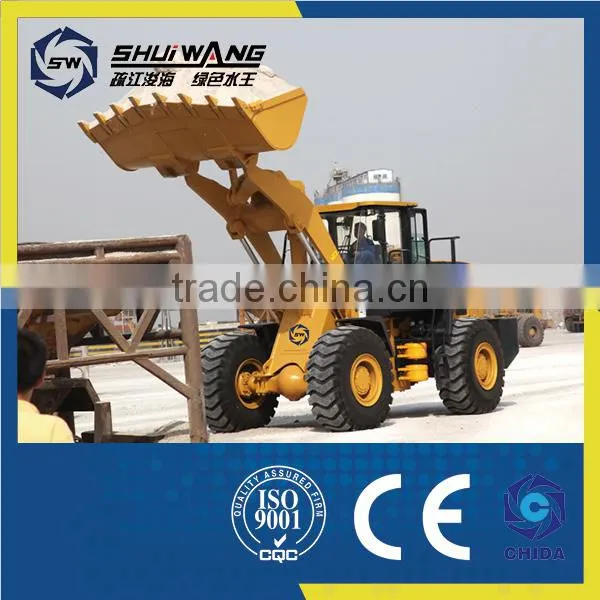

some other pictures of our wheel loader:

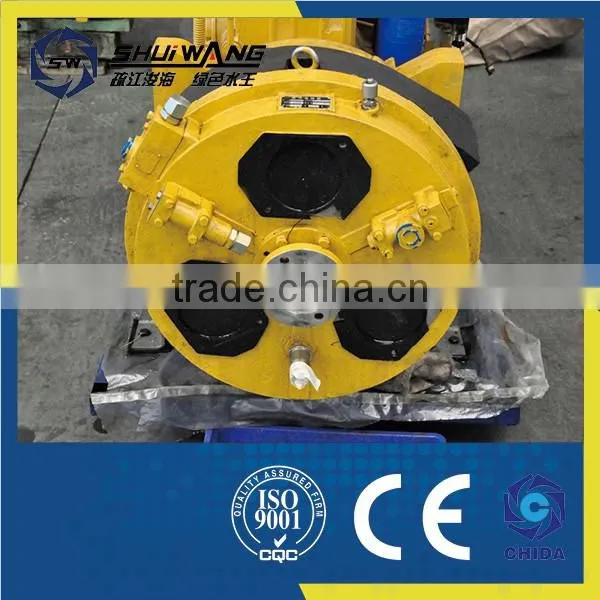

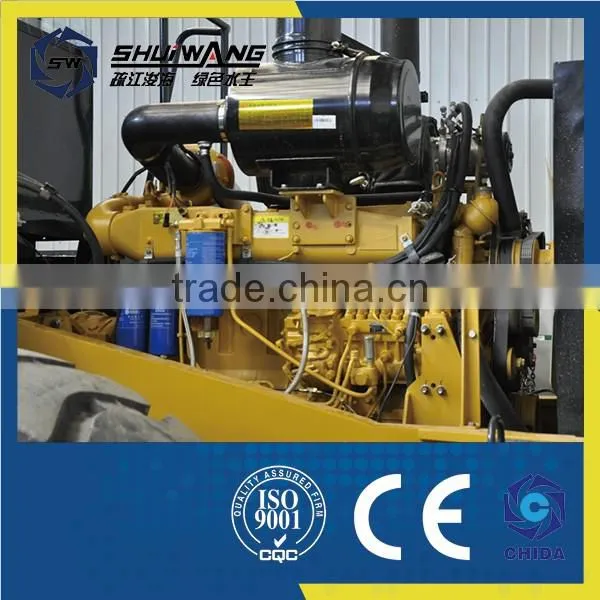

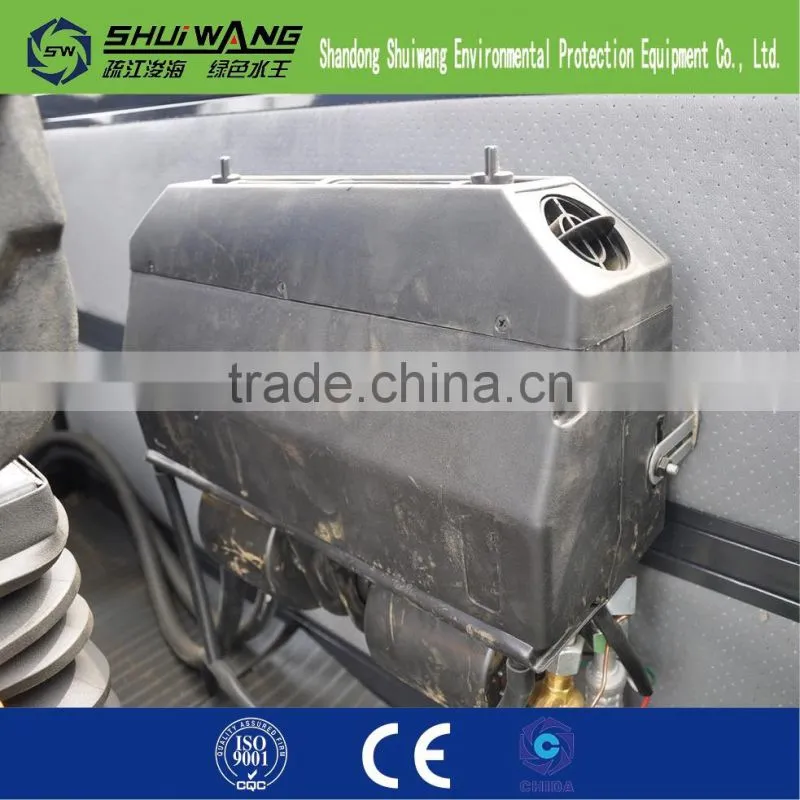

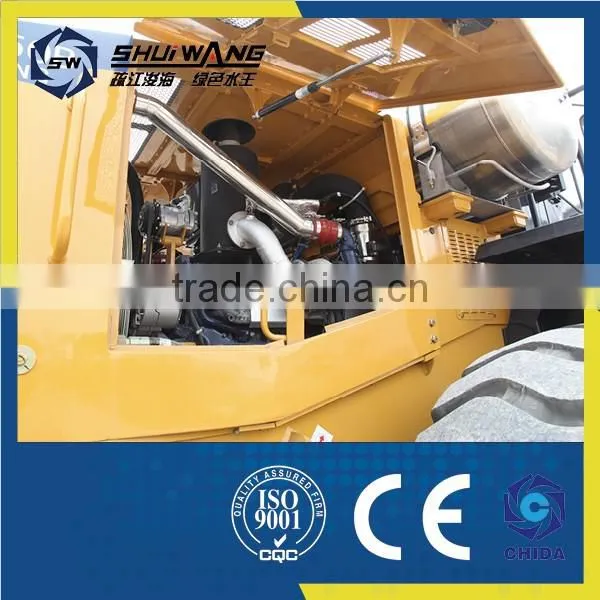

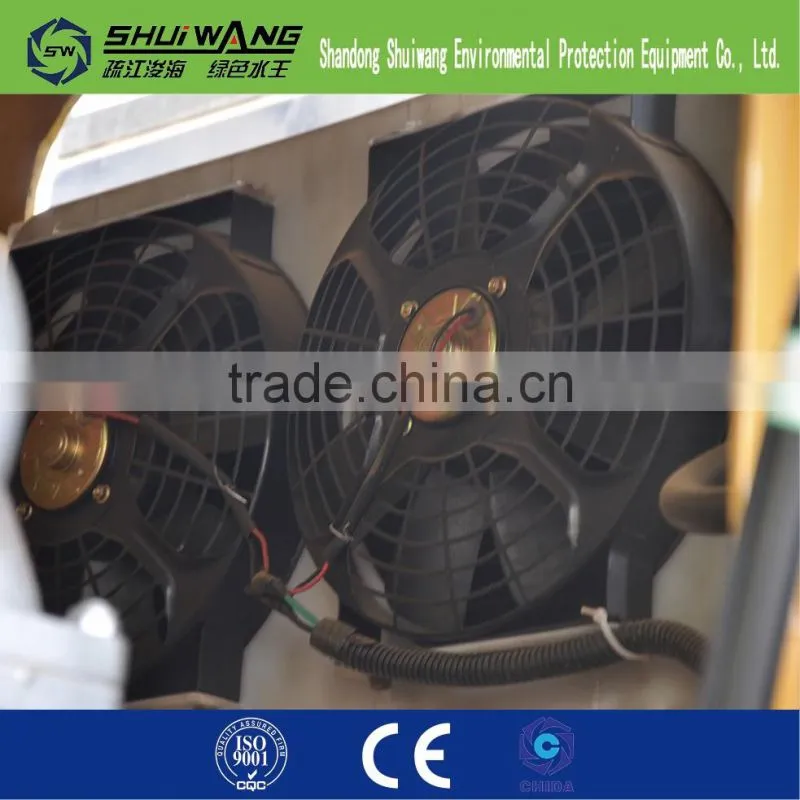

some complements of our wheel loader:

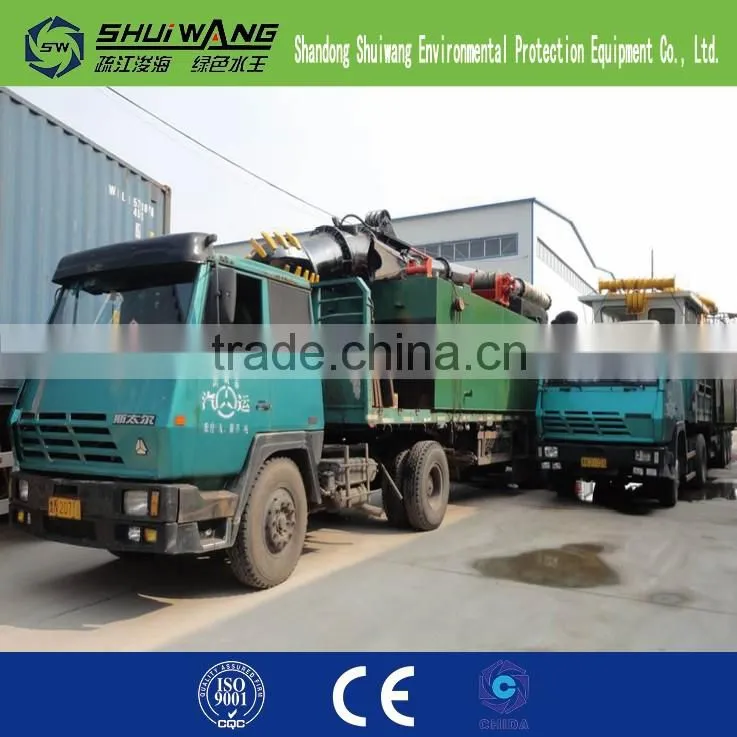

packing and shipping:
our services:
1.We provide reasonable and practical design according to customers' request.
2.We send engineers to assemble and test the machine within the period as agreed in the contract.
3.Within warranty period, we provide free repair if quality problems emerge.
4.We supply high quality accessories in low price.
why choose us?
1 High quality,our factory has many years experiences in this industry,and our wheel loader's quality is the best in same industry.Compare with other country's wheel loader,our wheel loader more pritical,longer use life,design more humanized.And we provide you the easy damaged parts
2 factory price,you know because we are factory,companre with other comapnies,we are the direclty supplier.You can get the direcly price from us,save many process in the middle,so choose us,you will save lots of money.
3 Easy to maintenance: the whole machine is designed with simple structure. all the mechanical parts are connected strongly and easy to change by the operators. During
the whole working life of the machine, the supplier will supply spare parts for the buyers.
Reliable performance: Shuiwang wheel loader machinery has a simple & tough structure. All the parts are from reputed brand and the main frame is made by strong steel
materials, all the equipments will be tested well before delivery.
company information:
customer visiting:
FAQ:
Dear sir/madam,when you send inquiry to me,please note how many tons wheel loader you need?and for brand ?do you have some request?
contact:
Contact Us
- Shandong Shuiwang Environmental Protection Equipment Co., Ltd.
- Contact nameMax Liu
- Address8th Floor, Bldg. B, Xinya Fortune Plaza, Crossing Of Fangongting Rd. And Haidai Road, Qingzhou
