1. Introduction

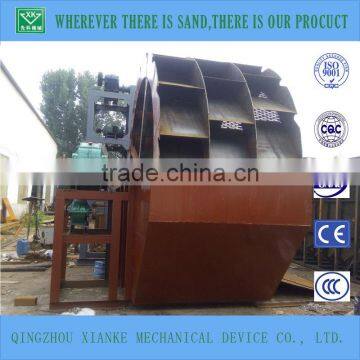

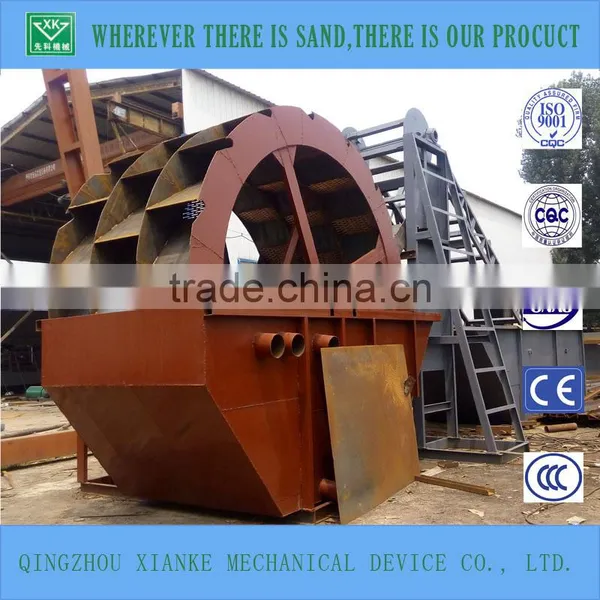

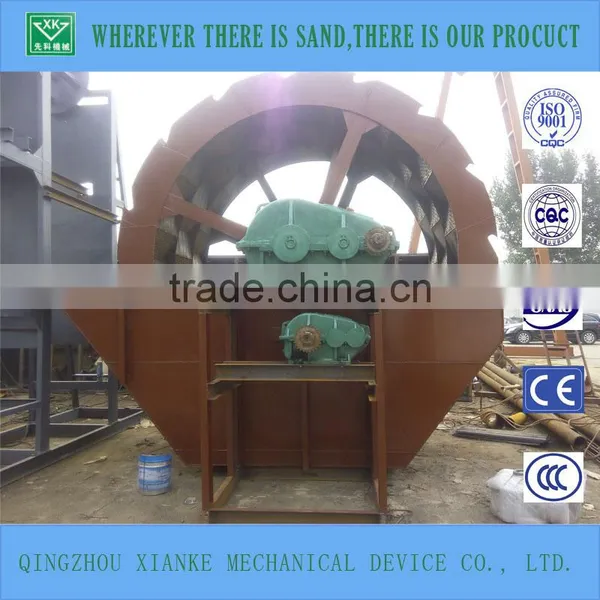

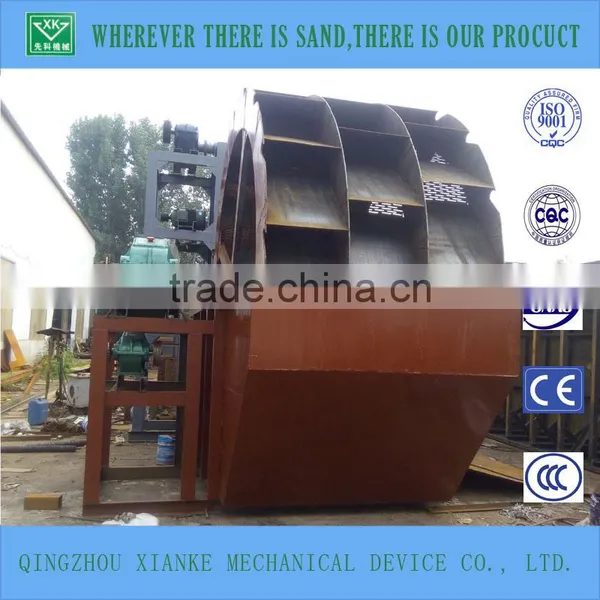

XK series sand washing machine, with wheel structure, is the compulsory sand washing product for sand making machine. It can wash stone powder and residual away from the mixed sands produced by sand making machine, improve the sand quality mostly.
2. Working principle
1. Can wash all kinds of rocks, sand, and the effect is good!
2. simple structure, convenient repair;
3. large capacity, low power consumption;
4. Less vulnerable parts consumption, low use cost.
3.The advantage of equipment
1) XK sand washing machine adopting advanced technology and taking the stone sand industrys practical condition into consideration.
2) It is applied to wash, grad and dehydrate in sandstone factory, construction site, hydroelectric station dam, glass manufacturing and oil well development.
3) These series sand washers are character as high clean ratio reasonable structure, low power, less sand away. Especially, the moving parts are separated from the water and water, so the stoppage is greatly less than the traditional machine, and it is the first choice for sand washing.
4. Main parameters:
This kind of dredger is used in the condition of clay proportion less than 10%.
Model Specification | Bucket wheel diameter (mm) | Processing capacity (t / h) | Motor Power ( kw ) | Weight (kg) |
XS2200 | 2200 | 20-80 | 7.5 | 2400 |
XS2600 | 2600 | 50-150 | 11 | 2900 |
XS2800 | 2800 | 160-250 | 11 | 3500 |
XS3200 | 3200 | 240-300 | 15 | 4500 |

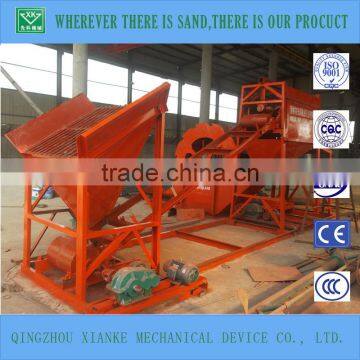

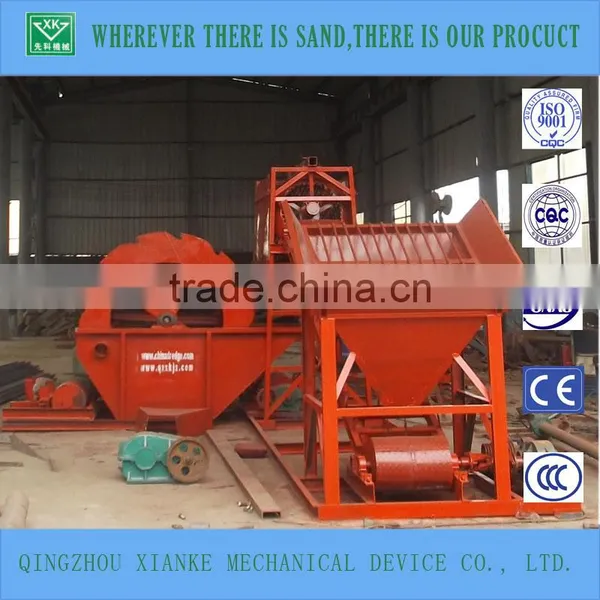

Usually in the front of the sand washer will install one roller sand screen to remove stones first and then comes into this sand washer to wash and then discharge by conveyor.
5. Our warranty
Erection and Commissioning
Operator Training
Spare Parts Supply
6. Customer Visiting Picture Show
