Introduction:
Xianke series sand washing machine, with wheel structure, is the compulsory sand washing product for sand making machine. It can wash stone powder and residual away from the mixed sands produced by sand making machine, improve the sand quality mostly.
Working principle:
1. Can wash all kinds of rocks, sand, and the effect is good!
2. simple structure, convenient repair;
3. large capacity, low power consumption;
4. Less vulnerable parts consumption, low use cost.
The advantage of equipment:
1 the machine is simple in structure, impeller transmission bearing device with water and water material isolation greatly avoids soaking, sand and pollutants bearing caused damage of the phenomenon.
2 to traditional spiral sand washing machine, it has obvious advantages compared to the following:
A. fine sand and cement loss is few.
B. the machine has less damageable parts.
C. has long service life.
3 large capacity, low power consumption;
4 long service life, convenient repair;
5 save water resources;
6 no pollution, high cleanliness
Main parameter:
This kind of dredger is used in the condition of clay proportion less than 10%.
Model |
XK3200 |
|
1 |
Overall dimension |
3.3*2.2.2.7m |
2 |
Wheel diameter |
3200mm |
|
Wheel width |
1500mm |
|
Wheel rolling speed(r/min) |
12 |
3 |
Wheel plate thickness |
8mm |
|
Water tank size |
4.0*1.4*1.4m |
|
Water tank plate thickness |
4mm |
4 |
Capacity(t/h) |
240-300 |
5 |
Power |
11kw |
6 |
Wheel reducer model |
JZQ650 |
7 |
Sand conveyor distance |
10m |
8 |
Weight |
4.5t |

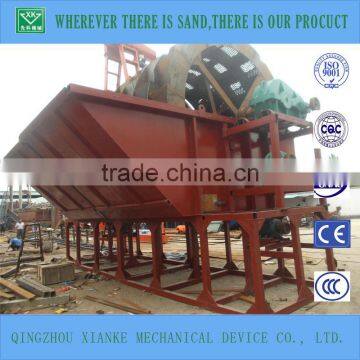

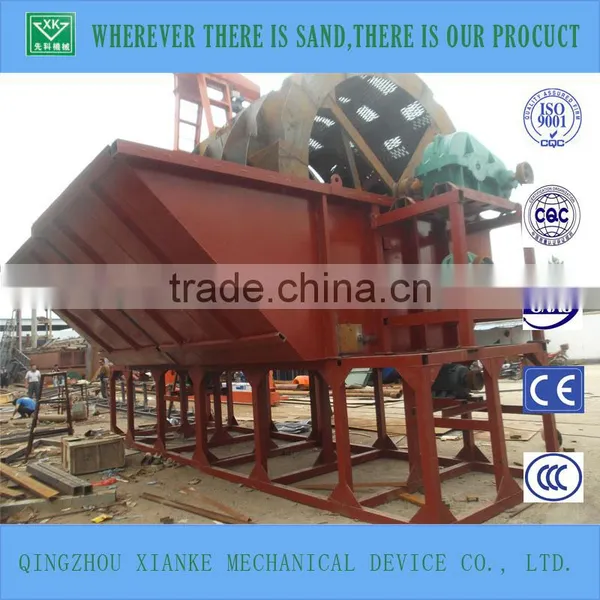

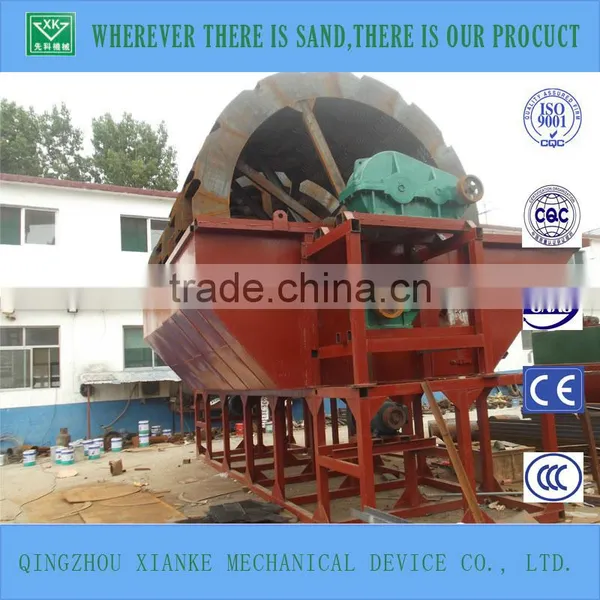

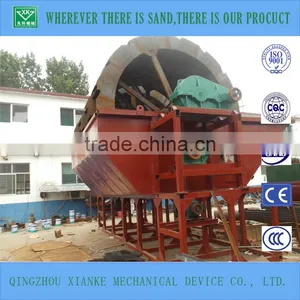

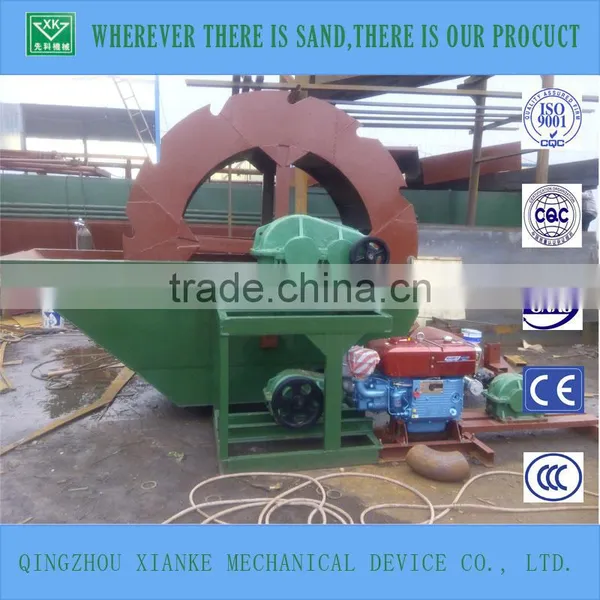

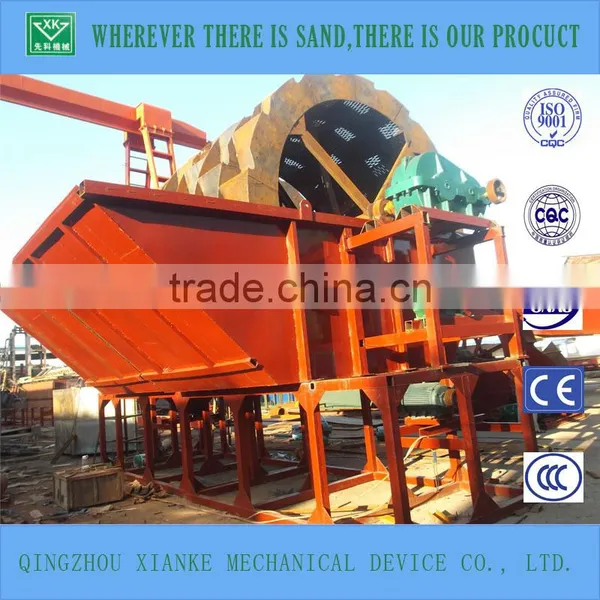

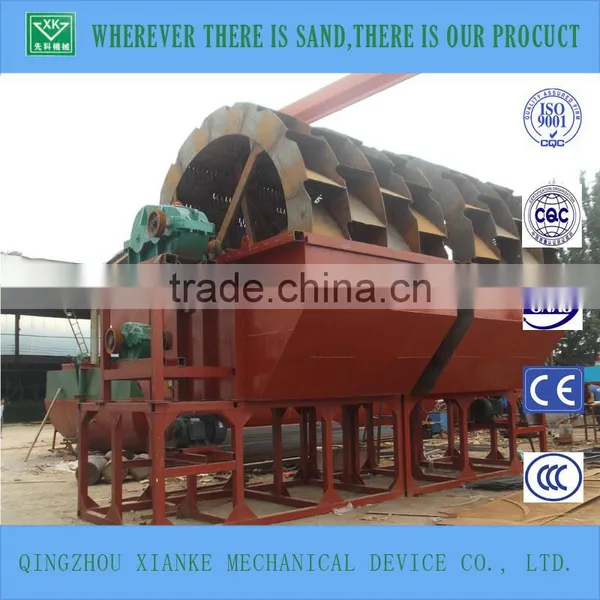

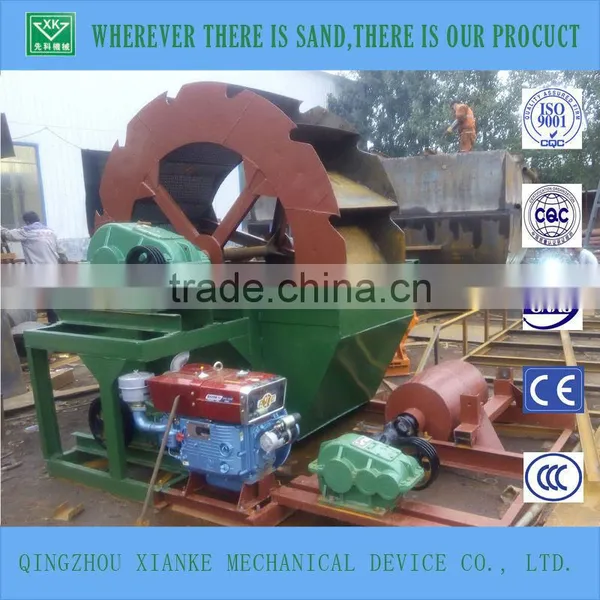

Pictures show:
♣ design digram
♣ producing in the workshop
♣ exported to Kenya
♣ transported to Hunan Provence, China
♣ working in the site
♣ customer visiting our company
