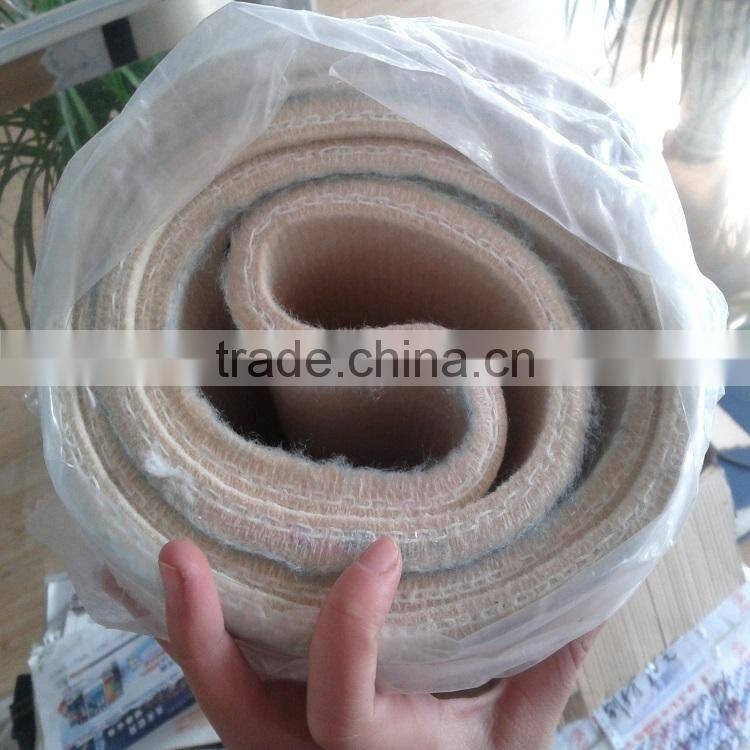

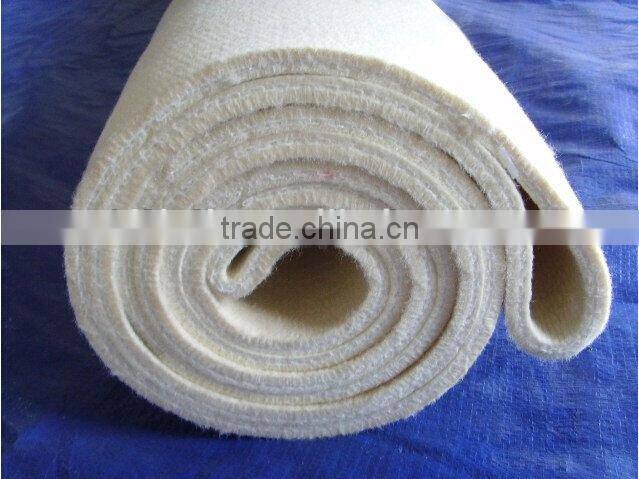

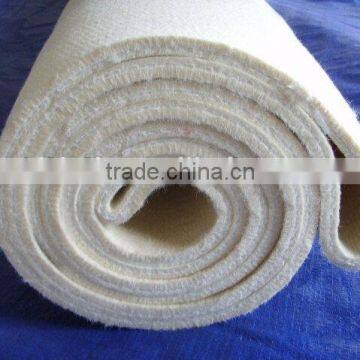

blanket for heat transfer for calendering press machine

Specifications

blanket for heat transfer for calendering press machine
1.PBO/nomex/kevlar
2.temperature 180-600

(1)PBO endless belt(endless/steel fastener)/CFL-02-550:

3mm PBO on the surface, 7mm nomex below

Applied to high-temp cooling bed. According to process of the client's operatio, we provide abrasive resistance and anti-tensile stronger belt, Maximum-temp resistance 550 ℃

(2)Kevlar: Maximum-temp resistance 480 ℃

(3)nomex: Maximum-temp resistance 280℃

(4) polyester: Maximum-temp resistance 180℃



TYPE	FEATURE	COLOR	MATERIAL	SPECIFICATION	WORKING TEMPERATURE
CFL-02-550	endless/steel fastener	surface brown/yellow bottom	PBO+ Kevlar	Length:1600mm-13800 Thickness:6mm-12mm Width: according to client's response	550 ℃
CFL-02-480		yellow	Kevlar		480℃
CLF-02-480		green	Kevlar		480℃
CFL-02-280		yellow	Nomex 100%		280℃
CFL-02-180		white	Ployester 100%		180℃
