ATV Front Axle Assembly,Used on HISUN, HS500,HS600,HS700 ATV
- 0 per Month
You May Like
-
ATV Rear Axle Assembly,Used on HISUN, HS500,HS600,HS700 ATV
-
UTV Rear Axle Assembly,Used on HS500UTV,HS600UTV HS700UTV
-
HISUN Crankshaft Assembly,HS700ATV,HS700UTV/13200-F39-0000/13200-007-0000
-
HISUN Crankshaft Assembly,Connecting Rod comp, Crank,HS500ATV,HS500UTV ,13200-F18-0000/13200-004-0000
-
CFMOTO Brake Pads Rear ATV X5 X6 X8 Cf500 Cf188 500cc ATV ;9010-080510
-
CFMOTO 800CC UTV Z8 ,OXYGEN SENSOR, 0800-176000
Product Details
| Brand Name | HISUN |
Product Description
ATV Front Axle Assembly,Used on HISUN, HS500,HS600,HS700 ATV

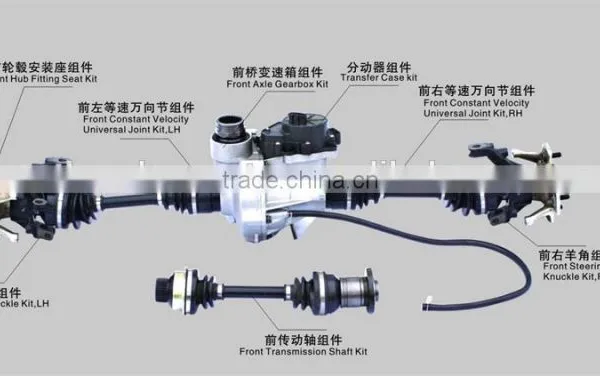

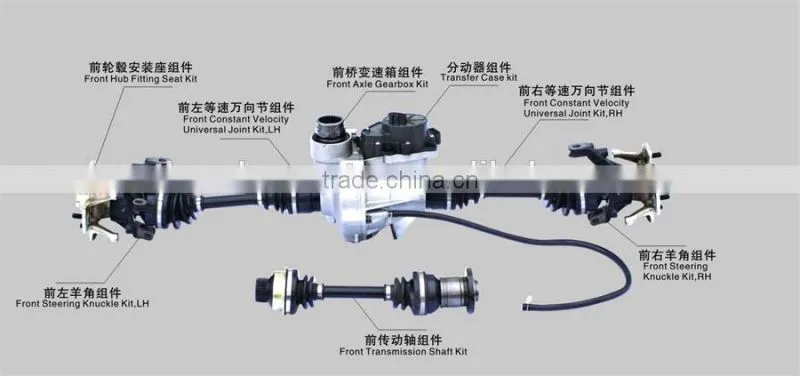

INCL.: Front Hub Fitting Seat Kit;Front Steering Knuckle Kit,LH & RH; Front Constant Velocity Universal Joint Kit,LH & RH ; Front Axle Gearbox Kit; Transfer Case Kit, Front Transmission Shaft Kit
DESC.: REAR AXLE ASSEMBLY
Chain Sprocket Gear Number: 9:33
WHEEL TRACK(MM): 719
DISTANCE (MM): 110
WHEEL BOLT:M10x 1.25
WIDTH(MM): 155.2
BRAKING MODE: DISC BRAKE
DIFFERENTIAL: NO

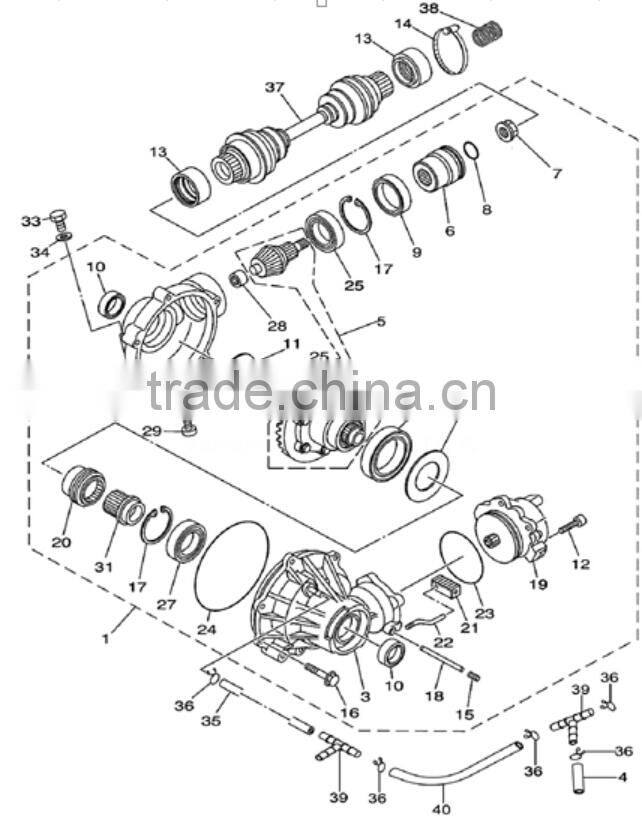

| 1 | 27200-058-0000 | 47100-107-0000 | 47100-107-0000 | FrontDifferentialAssy | 1 |
| 2 | 27201-058-0000 | 47102-107-0000 | 47102-107-0000 | FrontAxleDifferentialCaseⅡ | 1 |
| 3 | 27202-058-0000 | 47101-107-0000 | 47101-107-0000 | FrontAxleDifferentialCaseⅠ | 1 |
| 4 | 16525-107-0000 | 16514-107-0015 | RubberTube,Carburetorφ7×Φ11×90 | 1 | |
| 5 | 27207-058-0000 | 47103-115-0000 | 47103-115-0000 | Drive&DrivenGearsAssy(WithRearDifferentialStatus) | 1 |
| 6 | 27226-058-0000(L) | 47173-107-0000 | 47173-107-0000 | MountingBracket,DriveGears,FrontAxle | 1 |
| 7 | 6177.2-14-00 | B10-M14×1.25-27 | PB10-M14×1.5-27 | HexagonFlangeSelf-LockNuts(WithMetallicInsert)M14×1.5 | 1 |
| 8 | 27216-058-0000 | 47107-115-0100 | 47107-115-0100 | AdjustmentGasketΦ50×Φ61.5,Differential | 1 |
| 9 | 27218-058-0000 | 47105-115-0000 | 47105-115-0000 | OilSealφ48×Φ65×9,FrontAxleInputShaft | 1 |
| 10 | 27219-058-0000 | 47106-115-0000 | 47106-115-0000 | OilSealΦ24×Φ38×8,FrontAxleOutputShaft | 2 |
| 11 | 27213-058-0000 | 47107-115-0100 | 47107-115-0000 | AdjustmentGasketΦ50×Φ61.5,Differential | 2 |
| 12 | 70.1-8-20 | B15-M8×25-37 | B15-M8×25-37 | SocketHexagonScrewM8×25 | 3 |
| 13 | 27502-058-0000 | 26314-107-0000 | 26314-107-0000 | FrontDustproofRubberCover | 2 |
| 14 | 90743-107-0000 | 90751-107-0006 | HoopΦ33-57 | 1 | |
| 15 | 1977/8/10 | B15-M8×20-37 | B15-M8×20-37 | SocketHexagonScrewM8×20 | 1 |
| 16 | 16674-8-25 | B15-M8×25-37 | B15-M8×25-37 | SocketHexagonScrewM8×25 | 6 |
| 17 | 8930.1-62-00 | 47110-107-0000 | PB33-62-BB | SpringWasherD0=62 | 2 |
| 18 | 27273-058-0000 | 47111-115-0000 | 47111-115-0000 | Columnpniφ5×75 | 1 |
| 19 | 31500-058-0000 | 47130-115-0000 | 47130-115-0000 | TransferCaseAssembly | 1 |
| 20 | 27271-058-0000 | 47174-107-0000 | 47174-107-0000 | SlidingSleeve,DivideDeviceConnection | 1 |
| 21 | 27274-058-0000 | 47114-115-0000 | 47114-115-0000 | Rack | 1 |
| 22 | 27272-058-0000 | 47122-115-0000 | 47122-115-0000 | ShaftFork | 1 |
| 23 | 31501-058-0000(L) | 47115-115-0000 | 47115-115-0000 | O-RingΦ2×Φ81 | 1 |
| 24 | 27217-058-0000 | 47116-115-0000 | 47116-115-0000 | O-RingΦ2.4×Φ140 | 1 |
| 25 | 276-6007R | 47117-115-0000 | 47117-115-0000 | Bearing6007R | 2 |
| FRONTCASEPART | |||||
| No. | Old Part No. | 2013 Part No | ERPPartNo. | PartNameAndStandard | Q’TY |
| 26 | 276-6912(L) | 47118-115-0000 | 47118-115-0000 | Bearing6912 | 1 |
| 27 | 276-16007(L) | 47119-115-0000 | 47119-115-0000 | Bearing16007 | 1 |
| 28 | 290-HK152112(L) | 47120-115-0000 | 47120-115-0000 | BollingBearingHk152112 | 1 |
| 29 | 27231-058-0000(L) | 47109-115-0000 | 47109-115-0000 | OilDrainBoltM10×16 | 1 |
| 30 | 47121-107-0000 | 47121-115-0000 | CopperWasherφ1.5×Φ9 | 1 | |
| 31 | 27275-058-0000 | 47113-115-0000 | 47113-115-0000 | DivideDeviceConnection | 1 |
| 32 | 27214-058-0000 | 47107-115-0000 | 47107-115-0000 | AdjustmentGasketφ71×Φ83,Differential | 1 |
| 33 | 16674-14-10 | B06-M14×1.5×10-57 | B06-M14×1.5×10-57 | HexagonFlangeBoltM14×1.5×10 | 1 |
| 34 | 27234-058-0000(L) | 47121-115-0000 | 47133-107-0000 | CopperWasherφ14×1.5 | 1 |
| 35 | 27212-058-0000 | 47123-115-0000 | 47123-115-0000 | VentPipeL=700Mm | 1 |
| 36 | 90723-115-0000 | 90752-115-0002 | ClipΦ10 | 6 | |
| 37 | 27530-058-0000 | 26312-107-0000 | 26310-107-0000 | FrontTransmissionShaft | 1 |
| 38 | 27276-058-0000 | 26313-115-0000 | 26313-115-0000 | Springφ2×Φ18.5×30,FrontAxleTransmissionShaft | 1 |
| 39 | 16542-102-0000 | 16542-102-0000 | TripletJointIi | 2 | |
| 40 | 19052-115-0000 | 16514-115-0001 | SecondaryWaterTankRubberPipeⅡφ7×Φ11×750 | 1 |
