UTV Rear Axle Assembly,Used on HS500UTV,HS600UTV HS700UTV
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HISUN Crankshaft Assembly,HS700ATV,HS700UTV/13200-F39-0000/13200-007-0000NegotiableMOQ: 1 -
HISUN Crankshaft Assembly,Connecting Rod Comp, Crank,HS500ATV,HS500UTV ,13200-F18-0000/13200-004-0000NegotiableMOQ: 1
-
CFMOTO Brake Pads Rear ATV X5 X6 X8 Cf500 Cf188 500cc ATV ;9010-080510US$ 1 - 100MOQ: 10 Pieces
-
CFMOTO 800CC UTV Z8 ,OXYGEN SENSOR, 0800-176000NegotiableMOQ: 1 Piece
-
CFMOTO 800CC UTV Z8 SENSOR,AIR TEMP.&PRESSURE 0800-175000NegotiableMOQ: 1 Piece
Brand Name
HISUN
UTV Rear Axle Assembly,Used on HS500UTV,HS600UTV HS700UTV

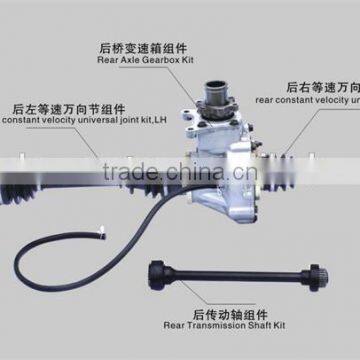

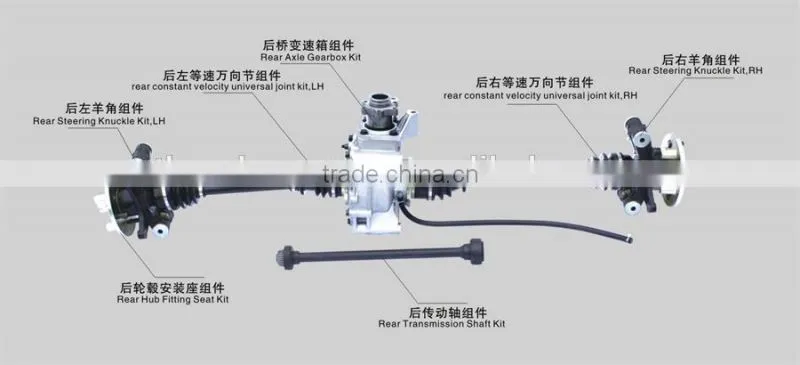

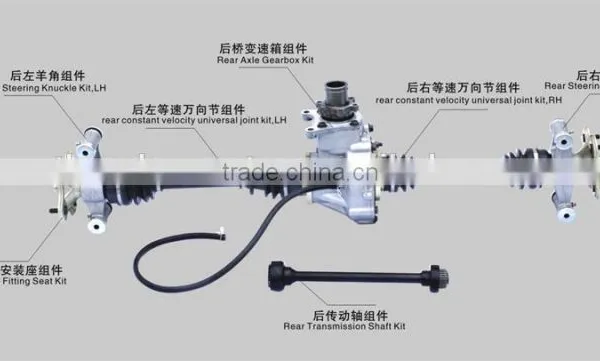

INCL.: Rear Hub Fitting Seat Kit;Rear Steering Knuckle Kit,LH & RH; Rear Constant Velocity Universal Joint Kit,LH & RH; Rear Axle Gearbox Kit;Rear Transmission Shaft Kit
DESC.: REAR AXLE ASSEMBLY
Chain Sprocket Gear Number: 9:33
WHEEL TRACK(MM): 1000
DISTANCE (MM): 110
WHEEL BOLT:M10x 1.25
WIDTH(MM): 131.5
BRAKING MODE: DISC BRAKE
DIFFERENTIAL: NO

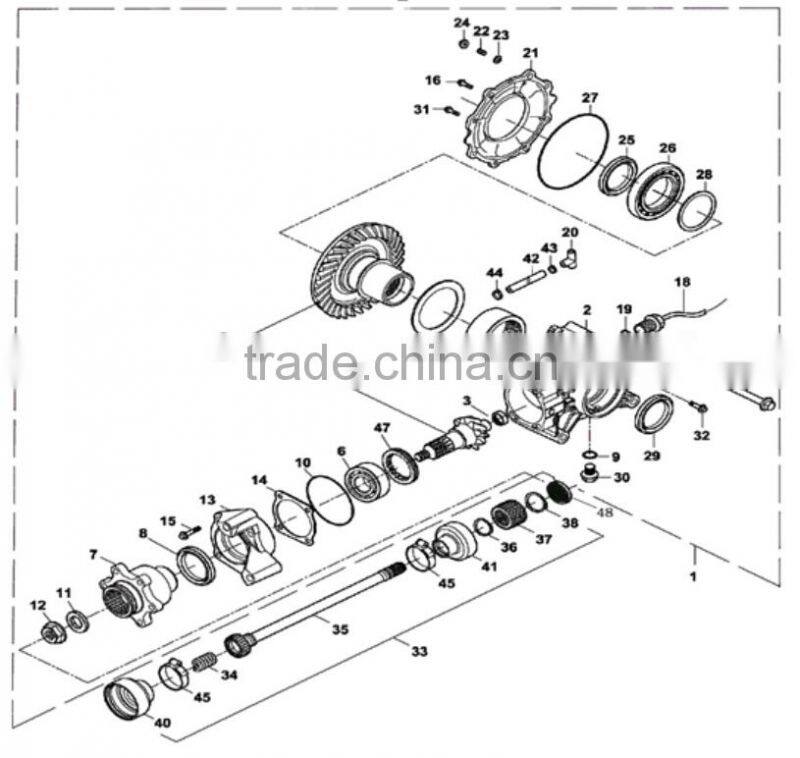

| No. | 2013 Part No | ERPPartNo. | Part Name and Standard | Q’TY |
| 1 | 46100-115-0000 | 46100-115-0000 | RearReducerAssy | 1 |
| 2 | 46116-115-0000 | 46116-115-0000 | RearReducerCaseⅠ | 1 |
| 3 | 46102-115-0000 | 46102-115-0000 | BearingHK223013Φ22Χφ30Χ13 | 1 |
| 4 | 46103-115-0000 | 46103-115-0000 | Bearing55Bm6720Φ55Χφ67Χ20 | 1 |
| 5 | 46104-115-0000 | 46104-115-0000 | Drive&DrivenGears | 1 |
| 6 | 46108-115-0000 | 46108-115-0000 | BearingΦ25Χφ62Χ17 | 1 |
| 7 | 46106-115-0000 | 46106-115-0000 | MountBracket,RearDiskBrakePlate | 1 |
| 8 | 46107-115-0000 | 46107-115-0000 | OilSealφ35×φ61×9 | 1 |
| 9 | 46136-115-0000 | 46136-115-0000 | FuelDrainO-RingSealφ1.5×φ13 | 1 |
| 10 | 46109-115-0000 | 46109-115-0000 | O-RingGasketφ3.1×φ63.8 | 1 |
| 11 | 46110-115-0000 | 46110-115-0000 | WasherΦ12Χφ30Χ4 | 1 |
| 12 | B10-M12×1.25-27 | PB10-M12×1.25-27 | HexagonFlangeNutM12×1.25 | 1 |
| 13 | 46111-115-0000 | 46111-115-0000 | MountBracket,RearBrakeCaliper | 1 |
| 14 | 46112-115-0000 | 46112-115-0000 | RearAdjustmentGasketⅠ | 1 |
| 15 | 46171-115-0000 | 46171-115-0000 | HexagonBoltWithWasherM8×35 | 4 |
| 16 | B15-M8×25-37 | PB15-M8×25-37 | SocketHexagonScrewM8×25 | 1 |
| 17 | 46113-115-0000 | 46113-115-0000 | RearAdjustmentGasketⅡφ55.2×φ66.8×1.7 | 1 |
| 18 | 36300-115-0000 | 36300-115-0000 | SpeedSensorComp. | 1 |
| 19 | 46114-115-0000 | 46114-115-0000 | O-RingGasket,FuelInjectionφ2.3Χφ19.4 | 1 |
| 20 | 46115-115-0000 | 46115-115-0000 | VentPipe,RearReducer | 1 |
| 21 | 46101-115-0000 | 46101-115-0000 | RearReducerCaseⅡ | 1 |
| 22 | 46169-115-0000 | 46169-115-0000 | SocketHexagonScrewM8×45 | 1 |
| 23 | 46168-115-0100 | 46168-115-0100 | Washerφ8×1 | 4 |
| 24 | B22-M8-27 | PB22-M8-27 | HexagonFlangeNutM8 | 2 |
| 25 | 46120-115-0000 | 46120-115-0000 | OilSealφ65×Φ90×9 | 1 |
| 26 | 46121-115-0000 | 46121-115-0000 | Bearing16017C2Φ85Χφ130Χ14 | 1 |
| 27 | 46122-115-0000 | 46122-115-0000 | O-Ringφ3.1×φ150 | 2 |
| 28 | 46123-115-0000 | 46123-115-0000 | AdjustmentGasketⅢφ86×φ100×0.5 | 1 |
| 29 | 46120-115-0000 | 46120-115-0000 | OilSealφ65×Φ90×9 | 1 |
| 30 | 46137-115-0000 | 46137-115-0000 | FuelDrainScrewPlugM20×1.5×14 | 1 |
| 31 | B06-M10×1.25×25-57 | PB06-M10×1.25×25-57 | HexagonFlangeNutM10×1.25×25 | 1 |
| 32 | 46172-115-0000 | PB05-M8×12-57 | HexagonFlangeBoltM8×12 | 4 |
| 33 | 26330-115-0000 | 26330-115-0000 | RearTransmissionShaftComp | 1 |
| 34 | 26331-115-0000 | 26331-115-0000 | Springφ18.5×Φ2×30 | 1 |
| 35 | 26332-115-0000 | 26332-115-0000 | RearTransmissionShaft | 1 |
| 36 | B20-19-BB | PB20-19-BB | CirclipD0=19 | 2 |
| 37 | 26333-115-0000 | 26333-115-0000 | Jointsleeve,RearAxleTransmissionShaft | 1 |
| 38 | B20-22-BB | PB20-22-BB | ElasticityBlockRingD0=22 | 1 |
| 39 | B10-M10×1.25-27 | B10-M10×1.25-27 | HexagonFlangeNutM10×1.25 | 2 |
| 40 | 26334-115-0000 | 26334-115-0000 | FrontDustCoverφ25×φ53×35,RearAxleTransmissionShaft | 1 |
| 41 | 26335-115-0000 | 26335-115-0000 | RearDustCoverφ20.5×φ48×30,RearAxleTransmissionShaft | 1 |
| 42 | 46128-115-0000 | 46128-115-0000 | VentPipe,RearReducer530mm | 1 |
| 43 | 46127-115-0000 | 46127-115-0001 | SteelWireClampφ8 | 1 |
| 44 | 90725-115-0000 | 46174-115-0001 | Clipφ11 | 1 |
| 45 | 90742-102-0000 | 90751-102-0002 | Clampφ20-32 | 2 |
| 46 | B06-M10×1.25×120-57 | B06-M10×1.25×120-57 | HexagonFlangeBoltM10×1.25×120 | 2 |
| 47 | 46118-115-0000 | 46118-115-0000 | ImpactionRing | 1 |
| 48 | 94102-115-0000 | Rubberwasherofshaft | 1 |
