ATV Rear Axle Assembly,Used on HISUN, HS500,HS600,HS700 ATV
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UTV Rear Axle Assembly,Used on HS500UTV,HS600UTV HS700UTVNegotiableMOQ: 1 -
HISUN Crankshaft Assembly,HS700ATV,HS700UTV/13200-F39-0000/13200-007-0000NegotiableMOQ: 1
-
HISUN Crankshaft Assembly,Connecting Rod Comp, Crank,HS500ATV,HS500UTV ,13200-F18-0000/13200-004-0000NegotiableMOQ: 1
-
CFMOTO Brake Pads Rear ATV X5 X6 X8 Cf500 Cf188 500cc ATV ;9010-080510US$ 1 - 100MOQ: 10 Pieces
-
CFMOTO 800CC UTV Z8 ,OXYGEN SENSOR, 0800-176000NegotiableMOQ: 1 Piece
Brand Name
HISUN
ATV Rear Axle Assembly,Used on HISUN, HS500,HS600,HS700 ATV

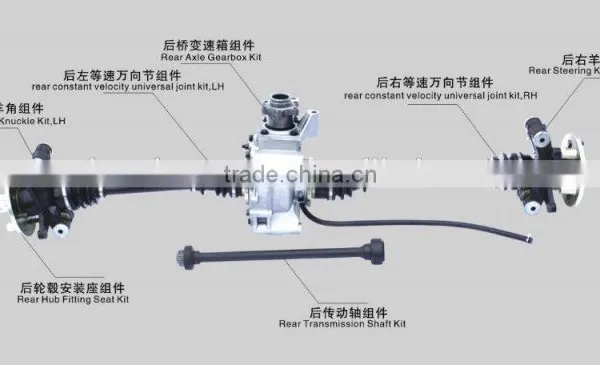

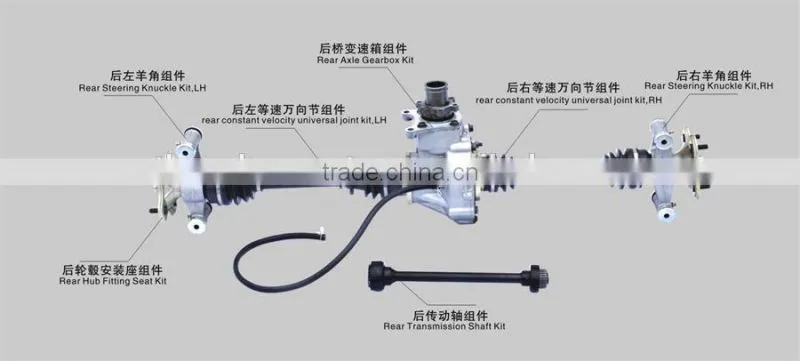

INCL.: Rear Hub Fitting Seat Kit;Rear Steering Knuckle Kit,LH & RH; Rear Constant Velocity Universal Joint Kit,LH & RH; Rear Axle Gearbox Kit;Rear Transmission Shaft Kit
DESC.: REAR AXLE ASSEMBLY
Chain Sprocket Gear Number: 9:33
WHEEL TRACK(MM): 1000
DISTANCE (MM): 110
WHEEL BOLT:M10x 1.25
WIDTH(MM): 131.5
BRAKING MODE: DISC BRAKE
DIFFERENTIAL: NO

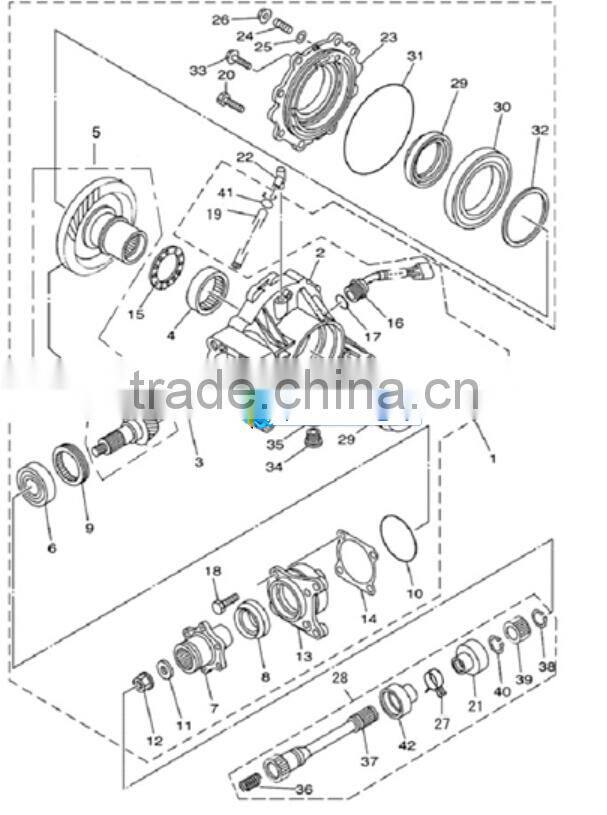

| No. | Old Part No. | 2013 Part No | ERPPartNo. | PartNameAndStandard | Q’TY |
| 1 | 26200-058-0000 | 46100-107-0100 | 46100-107-0100 | RearDifferentialAssy | 1 |
| 2 | 26201-058-0000 | 46101-107-0000 | 46116-107-0000 | RearAxleDifferentialCaseⅠ | 1 |
| 3 | 5801-HK223013 | 46102-115-0000 | 46102-115-0000 | NeedleBearingHk223013 | 1 |
| 4 | 5801-HK556720 | 46103-115-0000 | 46103-115-0000 | NeedleBearingHk556720 | 1 |
| 5 | 26207-058-0000 | 46104-115-0000 | 46104-107-0000 | DrivingAndDrivenGears,RearAxle | 1 |
| 6 | 276-6305 | 46108-115-0000 | 46108-115-0000 | Bearing6305 | 1 |
| 7 | 26239-058-0000 | 46106-115-0000 | 46106-115-0000 | MountingBracket,RearDiskBrake | 1 |
| 8 | 26218-058-0000 | 46107-115-0000 | 46107-115-0000 | OilSealΦ61×Φ35×9,InputShaft | 1 |
| 9 | 46125-115-0000 | 46118-115-0000 | Bushing | 1 | |
| 10 | 26216-058-0000 | 46109-115-0000 | 46109-115-0000 | O-Ringφ3×Φ71,RearDrvingGear | 1 |
| 11 | 26234-058-0000 | 46110-115-0000 | 46110-115-0000 | WasherΦ12×Φ30×4 | 1 |
| 12 | 6174-12-00 | B10-M12×1.25-27 | B10-M12×1.25-27 | HexagonFlangeSelf-LockNuts(WithMetallicInsert)M12×1.25 | 1 |
| 13 | 26226-058-0000 | 46111-115-0000 | 46111-115-0000 | MountBracket,RearDrivingGear | 1 |
| 14 | 26213-058-0000 | 46112-115-0000 | 46112-115-0000 | RearAdjustmentGasketⅠ | 2 |
| 15 | 26214-058-0000 | 46113-115-0000 | 46113-115-0000 | RearAdjustmentGasketⅡ | 1 |
| 16 | 36510-058-0000 | 36300-107-0000 | 36300-107-0000 | SpeedSensor | 1 |
| 17 | 26222-058-0000 | 46114-115-0000 | 46175-107-0000 | O-RingGasketFuelInjection | 1 |
| 18 | 9074.1-8-35 | B15-M8×25-37 | B15-M8×25-37 | SocketHexagonScrewM8×25 | 4 |
| 19 | 26233-058-0000(L) | 46128-107-0000 | 46128-115-0000 | VentPipe530mm,RearAxle | 1 |
| 20 | 16674-8-25 | B15-M8×25-37 | B15-M8×25-37 | SocketHexagonScrewM8×25 | 6 |
| 21 | 26503-058-0000 | 26338-115-0000 | 26335-115-0000 | RearDustCover,RearAxle | 1 |
| 22 | 26236-058-0000 | 46115-115-0000 | 46115-115-0000 | NozzleJoint | 1 |
| 23 | 26202-058-0000 | 46116-107-0000 | 46101-107-0000 | RearDifferentialCaseⅠ | 1 |
| 24 | 70.1-8-45 | 46169-115-0000 | 46169-115-0000 | HexagonBoltM8×45 | 4 |
| 25 | 90602-000-0000 | 46168-115-0100 | 46168-115-0100 | WasherΦ8.5 | 1 |
| 26 | 6177.1-8-00 | B22-M8-27 | B22-M8-27 | HexagonFlangeNutM8 | 1 |
| 27 | 90742-102-0000 | 90751-102-0002 | ScrewHoopΦ20-32 | 2 | |
| 28 | 26330-107-0000 | 26330-107-0000 | FrontTransmissionShaftAssy | 1 | |
| 29 | 26219-058-0000 | 46120-115-0000 | 46120-115-0000 | OilSealΦ65×Φ90×9,OutputShaft | 2 |
| 30 | 276-16017 | 46121-115-0000 | 46121-115-0000 | Bearing16017C2 | 2 |
| 31 | 26217-058-0000 | 46122-115-0000 | 46122-115-0000 | O-RingΦ3.1×Φ150 | 1 |
| 32 | 26215-058-0000 | 46123-115-0000 | 46123-115-0000 | AdjustmentGasketⅢ | 2 |
| 33 | 16674-10-25 | B06-M10×1.25×25-57 | B06-M10×1.25×25-57 | HexagonFlangeNutM10×1.25×25 | 2 |
| 34 | 46137-115-0000 | 46137-115-0000 | FuelDrainPlugM20×1.5×12 | 1 | |
| 35 | 47121-115-0000 | 46136-115-0000 | Copperwasherφ1.5×φ13 | 2 | |
| 36 | 26508-058-0000(L) | 26331-115-0000 | 26331-115-0000 | Springφ14×φ1.8×46 | 1 |
| 37 | 26501-058-0000 | 26332-107-0000 | 26332-107-0000 | RearTransmissionShaft | 1 |
| 38 | 894.1-17.5-00 | B20-22-BB | B20-22-BB | ATypeCirclipD0=22 | 4 |
| 39 | 26504-058-0000 | 26333-115-0000 | 26333-115-0000 | Jointsleeve,RearAxleTransmissionShaft | 1 |
| 40 | 894.1-20.5-00 | B20-19-BB | B20-19-BB | ATypeCirclipD0=19 | 1 |
| 41 | 26109-058-0000 | 90726-115-0000 | 90752-115-0003 | ClipΦ14 | 1 |
| 42 | 26502-058-0000 | 26334-115-0000 | 26334-115-0000 | FrontDustCover,RearAxle | 1 |
