bakery refrigerator temperature controller humidity data logger model S261

Standard Package list:
GSM Controller X 1
Power supply adapter X 1 (12V 1.5A)
CD (Pc programmer tool) X 1
GSM Antenna X 1
Gross Weight: 1.0Kg
15pcs per carton

bakery refrigerator temperature controller humidity data logger model S261

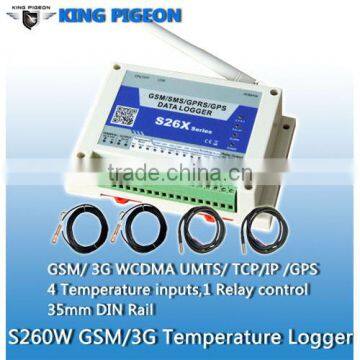

The King Pigeon S260 S261 Temperature Logger inbuilt industrial Quad-band GPRS Engine,and GPS module optional. 4 Channel temperature inputs support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.

One digital relay output with NC/NO contacts controlled by alarm event, SMS commands or Rejected Caller-ID(charge free).

With Internal memory, S260 S261 save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS TCP/IP, and tracking the real time GPS location with optional GPS module.

Daily report, schedule upload, event upload via GPRS to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.

S260 S261 used for field monitoring in worldwide, we offer GPRS protocol for clients to build their own monitoring software/applications.

 itch, GSM controller, Automation,Remote Controller S130/S140/S150 work as a wireless remote switch or Automation by GSM network.Also called GSM Remote Controller in industry a

 >>>>>>GSM GPRS 3G Temperature Logger Features:

Specifications:

Features:

Applications:

1.Security Alarm System applications;

2.Supervision and monitoring alarm systems;

3.Automatic monitoring system;

4.Vending Machines security protection;

5.Pumping Stations, Tanks, Oil or Water levels;

6.Buildings and Real Estate;

7.Weather Stations;

8.River Monitoring and Flood Control;

9.Oil and gas pipelines;

10.Corrosion protection

11.Temperatures, water leakage applications;

12.Wellheads, boat, vehicle;

13.Energy saving, street lights control system;

14.Valve controls;

15.Transformer stations;

16.Unmanned machine rooms;

17.Control room application;

18.Automation System, M2M;

19.GSM Access Control System, GSM Gate Opener, etc.

Typical Project

A. Temperature Alarm and Record

Save temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, download the historical data by to PC Programming Software by USB every few months or half a year.

Suitable for: Server room,Warehouse,Cold room, Medicine center, Drug store,Seafood storage,Villa,Holiday house, Aquarium, Supermarket, Hospital, Hotel, Billboard,Ads Signs LED,etc.

What you need:

S260 Standard Kit + SIM Card

PC Programming Software

Mobile Phone number for receiving alert

Computer with WinXP or Win7/8 OS

Steps:

1: Install S260 on site

2: Setting alert value and record interval time

3: Download historical data

B. Real Time Temperature Monitoring and Record

Save temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, remote monitoring real time temperature and download historical data anytime anywhere by KingCenter CMS-02 via GPRS TCP/IP.

Suitable for: Server room,Warehouse,Cold room, Medicine center,Drug store,Seafood storage,Chain store,Shopping mall,Hospital,Water supplier,Fuel pipe,BTS station,etc.

What you need:

S260 Standard Kit + SIM Card

PC Progrramming Software

Mobile Phone number for receiving alert

KingCenter CMS-02 System

DNS or Server IP address and Port

Computer with WinXP or Win7/8 OS

Steps:

1: Install S260 on site

2: Setting alert value and record interval time & GPRS

3. Remote monitoring real time Temperature value and Power

4: Download historical data

C. Real Time Temperature Monitoring and Record with GPS Tracking

Save temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, get GPS tracking information on Google Map, Remote monitoring real time temperature and download historical data anytime anywhere by KingCenter CMS-02 via GPRS/UMTS TCP/IP.

Suitable for: Refrigerated transport,Cold truck,Seafood transportation,Logistics Management, Chain store,Food market,Hospital management,Water supplier,Fuel pipe,BTS station,etc.

What you need:

S260+GPS Standard Kit + SIM Card

PC Progrramming Software

Mobile Phone number for receiving alert

KingCenter CMS-02 System

DNS or Server IP address and Port

Computer with WinXP or Win7/8 OS

Steps

1: Install S260 on site

2: Setting alert value and record interval time& GPRS/UMTS parameters

3. Remote monitoring real time temperature value,power and GPS location

4: Download historical data remotely

PC Programming Software

S26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:

• Ø  Authorized users setting
• Ø  GPRS Parameters setting
• Ø  Server IP and Port setting
• Ø  Ultra-Low/Low/High/Ultra-High alarm thresholds
• Ø  Query current values
• Ø  Data recording interval
• Ø  Historical data inquiry and export( .csv format)
• Ø  SMS Daily report interval
• Ø  GPRS data upload interval
• Ø  Relay action setting
• Ø  Relay test
• Ø  Date & Time adjustment
• Ø  GPRS data transceiving debug

Download S26x series GPRS GPS Temperature & Analog logger's programming software:

King Pigeon S260 GSM GPRS GPS Temperature and Analog data logger programming tool_en_V1.19.rar

Download Address: /EnproductShow.asp?ID=325#.Vxii0zF50Uk

>> Packing List

1)      Main unit x1

2)      100~240VAC/12VDC 2A Power adaptor x1

3)      DS18B20 temperature triode x2

4)      GSM Antenna x1

5)      GPS Antenna x1 (*for GPS model optional) x1

6)      User Manual & PC Software CD x1

       Packing Size: 235 x 225 x 65mm

      Gross Weight: 0.75KG

Optional:

GPS Module

DS18B20 Temperature probe with 1/5/10meters wire

DS18B20 Temperature probe with anticorrosion packing
