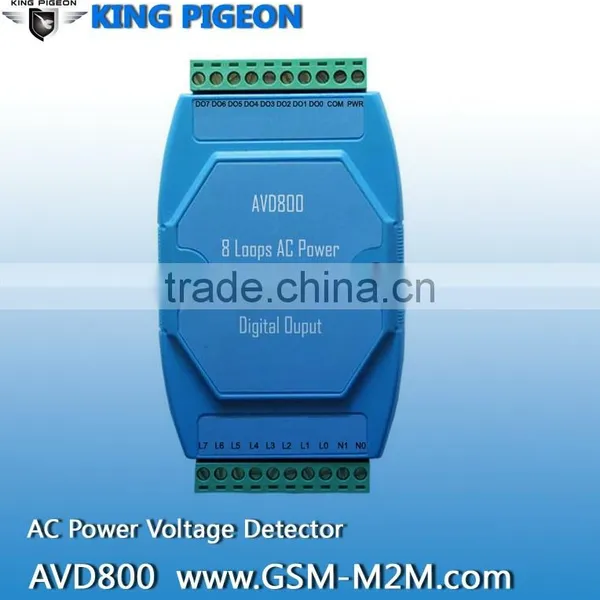

AC Power voltage transducer FOR Base Transceiver Station

Dimension: (HxWxD) 104x72x27mm;
Net weight:140g.

Name: AC Power voltage transducer FOR Base Transceiver Station

Model:AVD800

The AVD800 is special for monitoring 8 loop 140~240VAC 50Hz power voltage status and output dry contact, if detected voltage loss then will output an alarm signal. It is an industrial class, high reliability, low-power consumption, high stability and high precision digital detector.

The AVD800 is used widely as an AC power status monitoring of Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.

The AVD800 with fire retardant shell, standard 35mm DIN rail mounting makes it easy to install in fields.

Specifications:

Ø  Input Voltage:8 loop 140~240VAC 50Hz,no need external power source to power on it.

Ø  Output Type: 8 Dry contact.

when the AC power voltage is normal, the relay will be closed, and the impedance<50Ω;

When the AC Power voltage is failure, the relay will be opened and transmits an alarm signal to alarm units.

Ø  Input/output insulation: >1000V

Ø  Operating temperature: 0~50°C;

Ø  Relative humidity:  0~100%RH.;

Ø  Dimension: (HxWxD) 104x72x27mm;

Ø  Net weight:140g.
