mobile refrigerator vegetable refrigerator remote control model S261

Packing List
1) Main unit x1
2) 100~240VAC/12VDC 2A Power adaptor x1
3) DS18B20 temperature troide x2
4) Antenna x1
5) GPS Antenna x1 (*for GPS model optional) x1
6) User Manual & PC Software CD x1
Packing Size: 235 x 225 x 65mm
Gross Weight: 0.75KG
Optional:
GPS Module
DS18B20 Temperature probe with 1/5/10meters wire
DS18B20 Temperature probe with anticorrosion packing

mobile refrigerator vegetable refrigerator remote control model S261

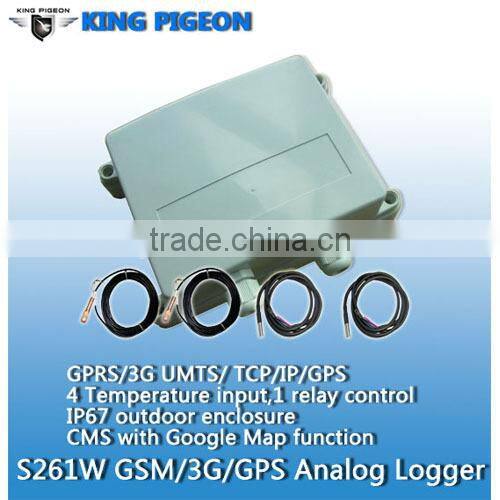

The King Pigeon S261W Temperature Logger inbuilt industrial GSM and 3G WCDMA module, GPS optional, 4 Channel temperature inputs support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.

One digital relay output with NC/NO contacts controlled by alarm event, SMS command or Rejected ller-ID(charge free).

With Internal memory, S260W S261W save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS/UMTS TCP/IP, and tracking the real time GPS location with optional GPS module.

Daily report, schedule upload, event upload via GPRS/UMTS to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.

S260W S261W used for field monitoring in worldwide, we offer GPRS/UMTS protocol for clients to build their own monitoring software/applications.

Features

1)      GSM and 3G WCDMA band,distribute worldwide applications available

2)      –55°C to +125°C (–67°F to +257°F) measurement range

3)      SMS command or PC Software programming

4)      User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)

5)      6 numbers for receiving temperature alert and relay control

6)      Relay control programmable when alarm thresholds exceed

7)      Relay control by Caller-ID with free of charge, SMS, GPRS,UMTS/HSDPA(*work with KingCenter CMS-02)

8)      Record temperature data on internal memory:

a)      Min interval: per 5mins, can save data on unit more than 6 months

b)      Max interval: per 255mins,can save data on unit more than 10 years

9)      Historical data download to PC (MS Excel format) via USB

10)    Historical data query and download remotly by GPRS,UMTS/HSDPA (*work with KingCenter CMS-02)

11)    Supports 2 Server(Master and Slave) via GPRS,UMTS/HSDPA

12)    Daily report, schedule upload, event upload program mable

13)    AC/DC Power status monitoring, AC ON/OFF alert by SMS

14)    Rechargeable Backup Battery inside(Approx.8hours standby)

15)    IP67 Environmental protection enclosure(S261W)

16)    GPS tracking module optional

Specifications

1)       Frequency:   2G:GSM900/1800MHz, 3G: 900/2100MHz UMTS  (default)

                              2G:GSM850/900/1800/1900MHz,3G: 850/1900MHz UMTS   (optional)

          S260W S261W: the W is an identify letter of S260 S261, all of these models with the same CE certificates.

1)      Input Channel: 4*DS18B20 temperature input

2)      Output:  1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC

3)      Temperature range: -55~+125°C°(–67°F to +257°F)

4)      Accuracy: 0.5~1°C from –10°C to +85°C

5)      Power Supply :  9~24VDC 2A

6)      Power Consumption:  12V input Max.50mA/Average

7)      SIM Card Supporting:  3V SIM Card

8)      GSM Antenna:  50 ohm SMA Antenna interface

9)      Backup Battery:  3.7V/1200mAH

10)    Relative Humidity:  90%(condensation free)

11)    Installation:  35mm DIN Rail (S260W)  IP67 Enclosure (S261W)

12)    Connecting Wires:  2.5mm

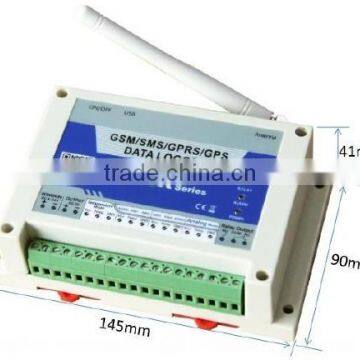

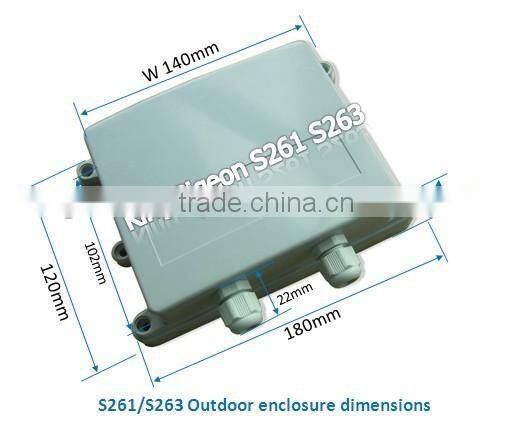

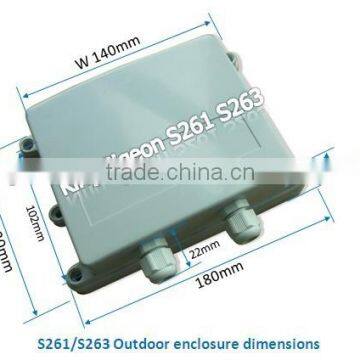

13)    Exterior Dimensions:  145*90*41mm (S260W)  180*140*60mm (S261W)

14)    Net Weight:  250g

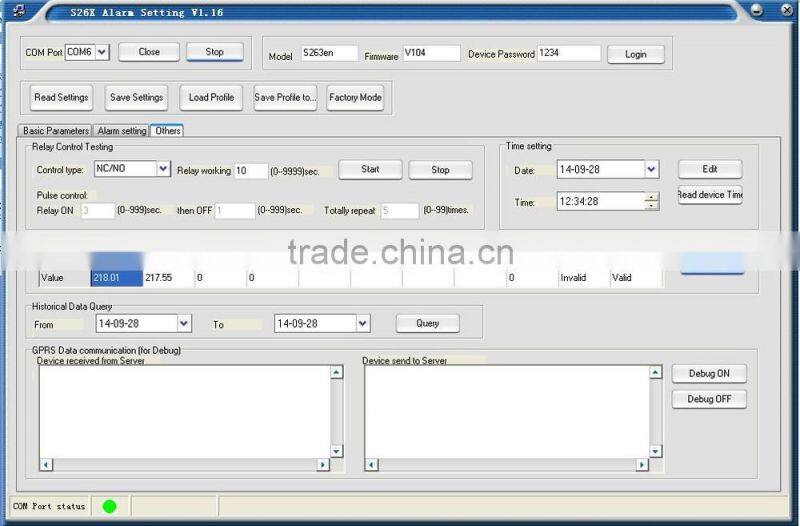

PC Programming Software

S26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:

a)      Authorized users setting

b)      GPRS/UMTS Parameters setting

c)      Server IP and Port setting

d)      Ultra-Low/Low/High/Ultra-High alarm thresholds

e)      Query current values

f)       Data recording interval

g)      Historical data inquiry and export(MS Excel format)

h)      SMS Daily report interval

i)       GPRS/UMTS data upload interval

j)       Relay action setting

k)      Relay test

l)       Date & Time adjustment

m)     GPRS/UMTS data transceiving debug

Packing List

1)      Main unit x1

2)      100~240VAC/12VDC 2A Power adaptor x1

3)      DS18B20 temperature troide x2

4)      Antenna x1

5)      GPS Antenna x1 (*for GPS model optional) x1

6)      User Manual & PC Software CD x1

Packing Size: 235 x 225 x 65mm

Gross Weight: 0.75KG

Optional:

GPS Module

DS18B20 Temperature probe with 1/5/10meters wire

DS18B20 Temperature probe with anticorrosion packing

Typical Project

Typical Project

A. Temperature Alarm and Record

Storage temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, download the historical data by to PC Programming Software by USB every few months or half a year.

Suitble for: Server room,Warehouse,Cold room, Madicine center, Drug store,Seafood stroge,Villa,Holiday house, Aquarium, Supermarket, Hospital, Hotel, Billboard,Ads Signs LED,etc.

What you need:

S260W Standard Kit + SIM Card

PC Progrramming Software

Mobile Phone number for receiving alert

Computer with WinXP or Win7/8 OS

Steps:

1: Install S260W on site

2: Setting alert value and record interval time

3: Download historical data

B. Real Time Temperature Monitoring and Record

Storge temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, remote monitoring real time temperature and download historical data anytime anywhere by KingCenter CMS-02 via GPRS or UMTS/HSDPA TCP/IP.

Suitble for: Server room,Warehouse,Cold room, Madicine center,Drug store,Seafood stroge,Chain store,Shopping mall,Hospital,Water supplier,Fuel pipe,BTS station,etc.

What you need:

S260W Standard Kit + SIM Card

PC Progrramming Software

Mobile Phone number for receiving alert

KingCenter CMS-02 System

DNS or Server IP address and Port

Computer with WinXP or Win7/8 OS

Steps:

1: Install S260W on site

2: Setting alert value and record interval time & GPRS

3. Remote monitoring real time temperature value and Power

4: Download historical data

C. Real Time Temperature Monitoring and Record with GPS Tracking

Storge temperature data on local unit,get alert SMS and phone call when temperature exceed pre-setting value, get GPS tracking information on Google Map, Remote monitoring real time temperature and download historical data anytime anywhere by KingCenter CMS-02 via GPRS/UMTS TCP/IP.

Suitble for: Refrigerated transport,Cold truck,Seafood transport,Logistics Management, Chain store,Food market,Hospital managerment,Water supplier,Fuel pipe,BTS station,etc.

What you need:

S260W+GPS Standard Kit + SIM Card

PC Progrramming Software

Mobile Phone number for receiving alert

KingCenter CMS-02 System

DNS or Server IP address and Port

Computer with WinXP or Win7/8 OS

Steps

1: Install S260W on site

2: Setting alert value and record interval time& GPRS/UMTS parameters

3. Remote monitoring real time temperature value,power and GPS location

4: Download historical data remotely
