monitoring system GSM GPRS RTU fish display refrigerator with OPC Server to SCADA model S261
The King Pigeon S261 Data Logger inbuilt industrial Quad-band GPRS Engine,GPS module optional. 4 channel Analog inputs (0-20mA,4-20mA,0-5V) support Ultra-Low/Low/High/Ultra-High limit alarm monitoring.
One digital relay output with NC/NO contacts controlled by alarm event,SMS command or Rejected Caller-ID(charge free).

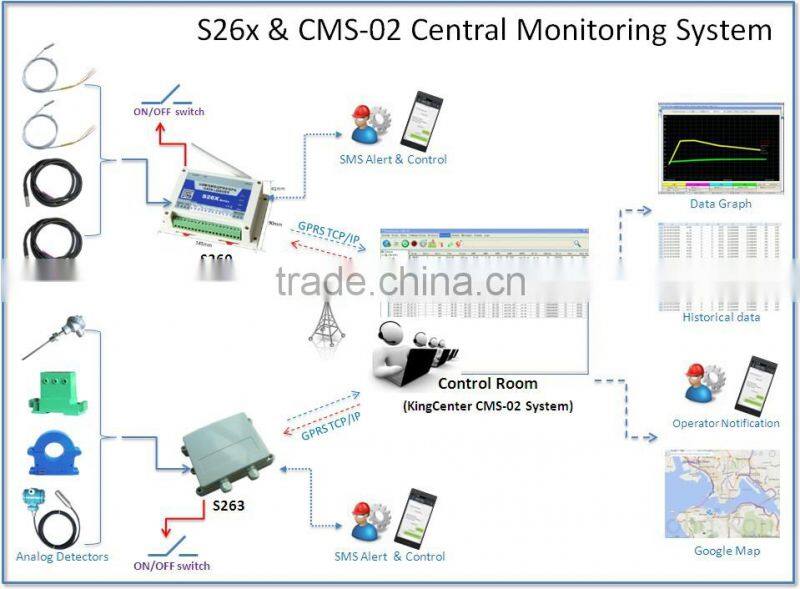

With Internal memory, S261 save historical data half a year for inquiry & download by PC software via USB cable or KingCenter CMS-02 Remote Monitoring System via GPRS TCP/IP, and tracking the real time GPS location with optional GPS module.
Daily report, schedule upload, event upload via GPRS to remote monitoring center (TCP/IP) or by SMS to users mobile phone available.
S261 used for field monitoring in worldwide, we offer GPRS protocol for clients to build their own monitoring software/applications.
S26x ordering table | ||||||
1) S26x models compatible with the Real time remote Central Monitoring System---KingCenter CMS-02 via GPRS/UMTS TCP/IP,and support KingCenter CMS-01 via SMS. 2) GPS module optional for all S26x models. The model number will plus G as identification, e.g.: S260G, S260WG; 3) S26x series programming by SMS or PC Configurations via USB Port. | ||||||
Model | Band | GPS | Relay | Input | Enclosure | Applications |
S260 | GSM GPRS | O P T I O N A L | 1 NC/NO | 4 Temp Probe | Indoor | S260/S261/S260W/S261W: Temperature Monitoring, Temperature Logging, Remote Control. E.g.: warehouse, green room, refrigerators, freezers, cold room, medicine drug room, museum, refrigeration van / truck etc. S262/S263/S262W/S263W: Remote Monitoring, Data acquisition, data logger, Remote Control, supports 0~20mA,4~20mA, 0~5V transducers. Temperature, Humidity, Voltage, Current, pressure, Level, speed, weight, carbon monoxide, carbon dioxide, gas transducers, etc. *The W is the identify code of models, all of the 26x with same CE/RTTE certificates. |
S261 | Outdoor | |||||
S262 | 4 Analog | Indoor | ||||
S263 | Outdoor | |||||
S260W | 3G WCDMA UMTS | 4 Temp Probe | Indoor | |||
S261W | Outdoor | |||||
S262W | 4 Analog | Indoor | ||||
S263W | Outdoor | |||||
Features
- Ø GSM Quad-Band,distribute worldwide applications available
- Ø 4 channel analog input: 0-20mA,4-20mA,0-5V
- Ø SMS command or PC Software programming
- Ø User-programmable alarm thresholds (Ultra-Low/Low/High/Ultra-High)
- Ø 6 numbers for receiving input alert and relay control
- Ø Relay control programmable when alarm thresholds exceed
- Ø Relay control by Caller-ID with free of charge, SMS, GPRS(*work with KingCenter CMS-02)
- Ø Recording data on internal memory:
Min interval: per 5mins, can save data on unit more than 6 months
Max interval: per 255mins,can save data on unit more than 10 years
- Ø Historical data download to PC (MS Excel format) via USB
- Ø Historical data query and download remotly by GPRS(*work with KingCenter CMS-02)
- Ø Supports 2 Server(Master and Slave) via GPRS
- Ø Daily report, schedule upload, event upload programmable
- Ø AC/DC Power status monitoring, AC ON/OFF alert by SMS
- Ø Rechargeable Backup Battery inside(Approx.8hours standby)

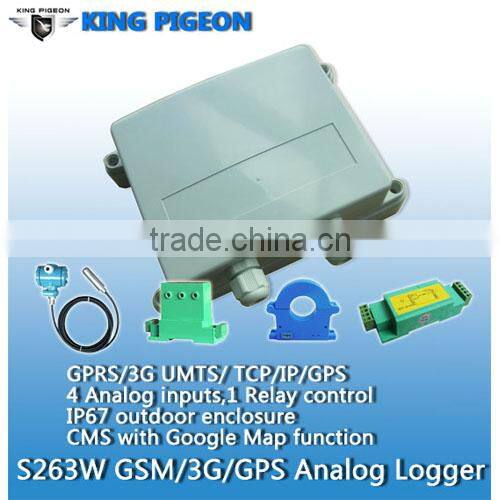

- Ø IP67 Environmental protection enclosure(S263)
- Ø GPS tracking module optional
Specifications
1) GSM Frequency: Quad-band 850/900/1800/1900MHz
2) Input Channel: 4 Analog, 0-20mA, 4-20mA, 0-5V
3) Output: 1 Relay, NC/NO contacts, 7A/125V AC, 5A/250VAC,20A/14VDC
4) Power Supply : 9~24VDC 2A
5) Power Consumption: 12V input Max.50mA/Average
6) SIM Card Supporting: 3V SIM Card
7) GSM Antenna: 50 ohm SMA Antenna interface
8) Backup Battery: 3.7V/1200mAH
9) Relative Humidity: 90%(condensation free)

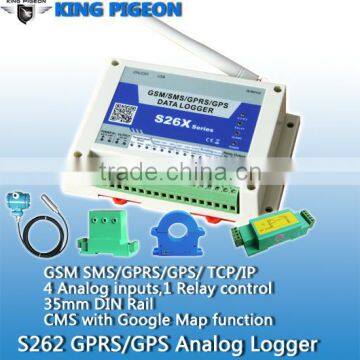

10) Installation: 35mm DIN Rail (S262), IP67 Enclosure (S263)
11) Connecting Wires: 2.5mm
12) Exterior Dimensions: 145*90*41mm (S262)
i. 180*140*60mm (S263)
13) Net Weight: 250g
Packing List
ü Main unit x1
ü 100~240VAC/12VDC 2A Power adaptor x1
ü GSM Antenna x1
ü GPS Antenna x1 (*for GPS model optional) x1
ü User Manual & PC Software CD x1
ü Size: 235 x 225 x 65mm
ü Gross Weight: 0.75KG
Optional accessories:
-200~500 Temperature transducer with anticorrosion packing
Fuel/Water level transducer
Current/Voltage transducer
PC Programming Software
S26x Series PC Programming Tool (Windows XP and Windows 7/8 OS) Functions:
a) Authorized users setting
b) GPRS/UMTS Parameters setting
c) Server IP and Port setting
d) Ultra-Low/Low/High/Ultra-High alarm thresholds
e) Query current values
f) Data recording interval
g) Historical data inquiry and export(MS Excel format)
h) SMS Daily report interval
i) GPRS/UMTS data upload interval
j) Relay action setting
k) Relay test
l) Date & Time adjustment
m) GPRS/UMTS data transceiving debug
