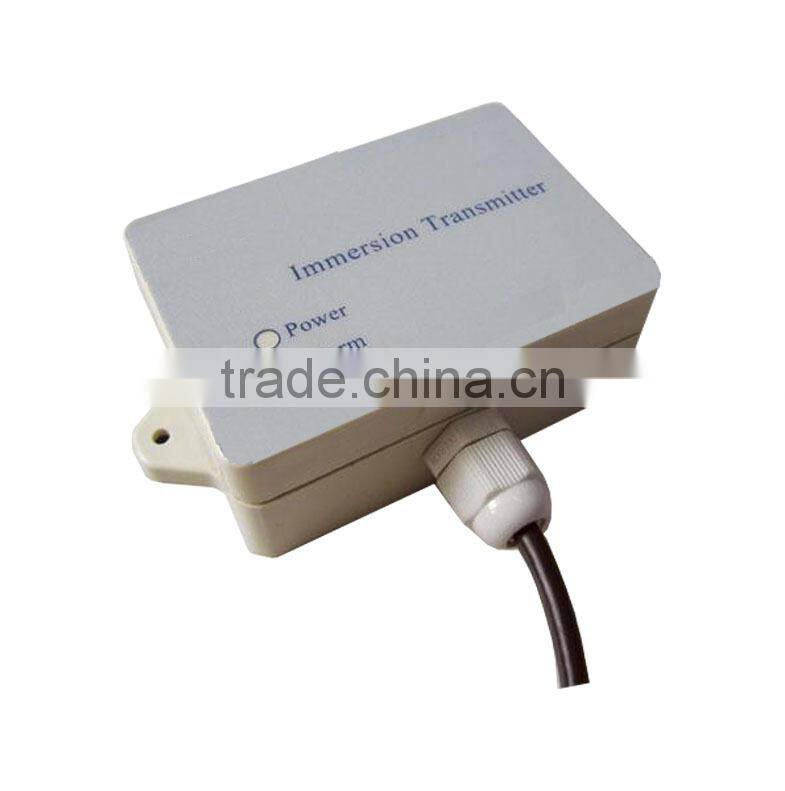

Immersion transmitter water alarm detector water leakage detector King Pigeon WLD101
NAME: waterlogged detector,Water Leakage Immersion Detector
Model:WLD101
The WLD101 is a hermetically sealed isolated water leakage Immersion detector, it is special for detection water leakage and water immersion and waterlogged in one point,
when detected the water, it will output an alarm signal. It is an industrial class, photoelectric isolation, coil isolation, isolation relays, high reliability, low-power consumption, high stability and high precision digital det
Introduction:
The WLD101 is special for detection water leakage, water immersion and waterlogged in one area. It is an industrial class, photoelectric isolation, coil isolation, isolation relays, high reliability, low-power consumption, high stability and high precision digital detector.
The WLD101 is used widely as a front-end detector of an alarm system of Laboratory, museum, warehouse, wareroom, storehouse, depot, depository, depositary, generator room, machine room, engine room, Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.
The WLD101 with fire retardant shell, Electrode-detection, according to electrodes changes in water resistance principle, ground mounting makes it easy to install in fields.
Specification as below:
Items | Specifications |
Rated Power Input | 12VDC(Optional: 9~36V) |
Output Type | Dry Contact, Default: NO(Alarm will close), Optional: NC; |
Installation Type | Ground mounting |
Relative Humidity | 20~100%RH.; |
Operation Temperature | 0~55℃; |
Power Consumption | <65mA |
Dimension | 108X58X34mm(WxLxH) |
Net Weight | 160g. |
Features:
Ø Stability , high precision;
Ø Directly immerse into the measured medium, very easy to install and use;
Ø Solid-state structure, no moving parts, high reliability , long life from the water;
Ø Standard 0-5V DC output for RTU, PLC and acquisition equipments;
Ø Wide range for measurements from 100mm~2000mm.
Ø With power reverse polarity protection and overload current limit protection .
CE/EMC, CE/RTTE certificate.
