kitchen cooking gas leak detector GL-100A
skype: gsmrtusystem

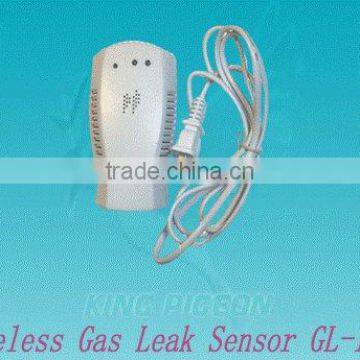

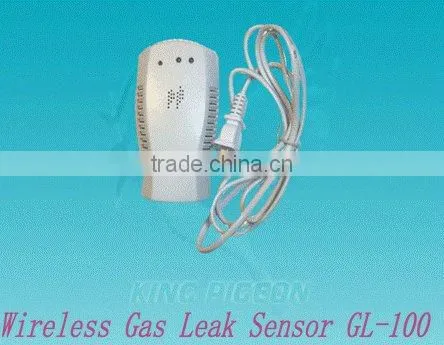

Name: wireless gas leak detector
Model:GL-100A
The wireless gas leak detector is special for security alarm system. It is an industrial class, high reliability, low-power consumption, high stability and high precision switch.
The wireless gas leak detector is used widely as a security alarm of commercial/residential area, factory, hotel, bank, apartment, villa, farm, supermarket, warehouse, garage, home, etc.
The wireless gas leak detector with fire retardant shell, wall mounting makes it easy to install in fields.

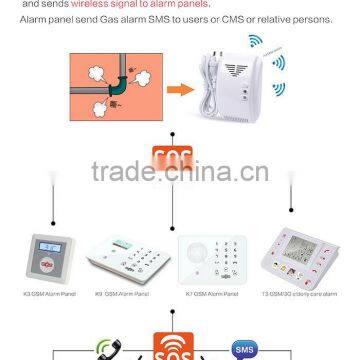

The Wireless Gas Leakage Detector is an INPUT DEVICE designed for natural gas,LPG detection. It can use independently or as a front-end detector of an alarm system. Upon detection of natural gas and LPG, the GL-100A automatically generates an alarm signal to control panel and sound & flash alarm. The unit is RF and EMI Immunity to interferences produced by radio device.
Product Features
- Newly-developed sensory sensor unit inside;
- Independently or as a front-end detector of an alarm system;
- Wireless transmitting digital signal to control panel;
- Intelligent logic control, eliminate false alarm;
- Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
- Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust, Worm, it is dustproof, mothproof and anti-white light;
- Strong adaptability to circumstance requirements;
- SMT adopted, RF and EMI Immunity;
- Manual test, auto-reset, and low power consumption;
- Thin structure design.
Specifications:
Operating Voltage | AC85V-265V |
Standby Current | ≤90mA |
Alarm Current | ≤100mA |
RF Immunity | > 20 V/m 10 – 1000 MHz |
Alarm Sensitivity | 10%+/-5 LEL |
White Light Immunity | > 8000 lux |
Noise(Vp-p) | <200mV, (mVp-p)(25°C) |
Transmitting Freq. | 433.92MHz |
Transmitting Distance | minimum 100m( in the open area) |
Alarm Output | sound & flash alarm |
Temperature Range | -10°C to +50°C |
Relative Humidity | Less than 95% (25 °C ) |

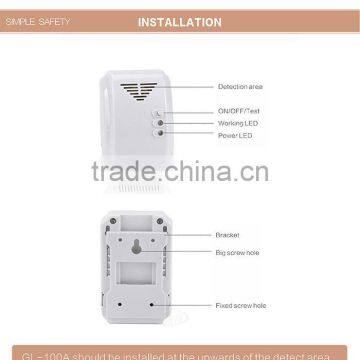

Installation Mode | Wall Mounted |
Housing | High-impact ABS |
Dimensions | 115mm x 72mm x41mm (HxWxD) |
Applications | For indoor use. |
Other sensors:
Wireless Button series---- Necklace Type Waterproof Panic Button EM-60
Wireless door contact series---- wireless alarm system elevator door contact gsm magnetic door sensor alarm alarm door lock SDM-100
Wireless door contact series---- Home alarm security Ceiling 360 Passive Infrared PIR Motion Detector CPIR-03
Wireless signal repeater---- RF Signal Repeater Wireless Transmitter RPT-3000
GSM signal repeater---- gsm booster antenna Special for increasing GSM Signal AT-25
Wired push button series---- wired panic button push button switch foot panic button EM-01
Wired door contact series----wired alarm system door contact magnetic door sensor anti theft door alarm DM-01
Wired door contact series---- wired pir motion sensor dual element intrared detector PIR -01
Wire and wireless smoke sensor---- smoke detector wholesale smoke detector gsm smoke detector alarm WSM-01
Wire and wireless alarm siren----wired and wireless alarm siren 120db
Other wired and wireless sensors and detectos:
Immersion transmitter water alarm detector water leakage detector King Pigeon WLD101
Real Time monitoring TMI300 surface temperature Sensor Adhered Temperature Transducer monitoring solid Detector
Liquid Level Detector,100-2000mm,factory price,King Pigeon,WLV102
We are professional manufacturer in:
1. Door Contact, Emergency,PIR Motion, Vibration, Shock, Glass Break, Smoke Fire Gas Leakage Detectors
2. Water Leakage, Water Oil Overflow, Water Oil Level Detectors and Tranducers
3. Temperature, Humidity,
4. Temperature & Humidity Detectors and Tranducers
5. Equipment Running Status, Current, Voltage Detectors and Tranducers
6. For more accessory price, please contact us.
Related WIFI/3G GSM Controllers:
wifi home security wlan camera outdoor wireless camera WIFI+3G/GSM remote camera alarm W12
GSM SMS Gate Opener Wireless Door Access Remote Control by Mobile Phone (model: RTU5025)
RS485 modbus RTU Controller S275 with RJ45 for SCADA/WEB Applications
rs232 to wifi converter Serial to Wifi/Ethernet Converter (RS232/485+RJ45) WF-01 china low price
Other related wifi/3G GSM controller:
GSM SMS switch Relay remote controller FOR pump controller S130
room sms temperature alarm controller data logger S270
GPRS data logger with 4 analogue inputs and free web server ( S260/S262)
Data Acquisition Module,4DIN+8AI+4DO Module,DAM124
GPRS MODEMN /DTU converting wired data to GPRS Wireless transmission D221
Your any requests would be much appreciated, please do not hesitate to contact us.
skype: gsmrtusystem
mobile/whatapp: 0086 18300081896
Wechat:sporting512
QQ:2373223430
Something You should know about King Pigeon
King Pigeon is a professional GSM Wireless Alarm, GSM Home Alarm System, GSM SMS Alarm, GSM SMS Controller, GSM Home Automation system, Industrial Remote Controller, GPRS RTU Data Logger, GSM Telemetry, Temperature Measurement Logger, Power Monitoring Alarm, GSM M2M Products Manufacturer since 2005.
Based on more than 9 years rich experiences, King Pigeon provide Professional High Quality and Reliable OEM/ODM service for the market in worldwide!
