4G SMS Alarm, 3G SMS alarm, GSM SMS Alarm

King Pigeon is a professional Design and manufactuer of GSM Controller, GPRS Telemetry Data Logger, 3G RTU and other Industrial Automation Systems.

We provide lots of GSM/GPRS/3G/WiFi Automation solutions to customers sinice 2006.

We are sure one or more of our products can meet what you needs.

We can develop Products accroding to you requirements with reasonable Price!

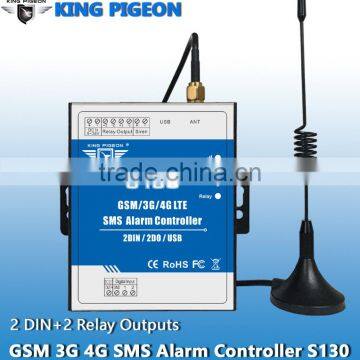

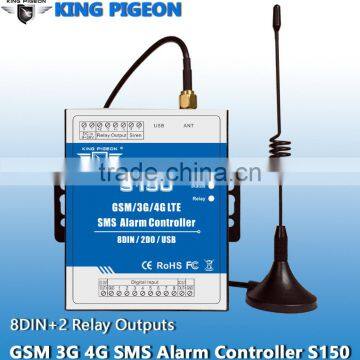

Model: S130 S140 S150

Name: GSM 3G 4G SMS RTU Controller-Alarm (2/4/8DI/2O/USB Ports)

Remote switching machines with a SMS text from your mobile phone!

Remote Monitoring your assets in the worldwide by your mobile Phone!

The GSM 3G 4G SMS RTU Controller-Alarm is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipments, car parking systems. Actually the GSM 3G 4G SMS RTU Controller can be used in places which require turning ON/OFF your system, machines, equipments remotely with a SMS text from your mobile phone and protect your assets.

Moreover, the GSM 3G 4G SMS RTU Controller-Alarm with 2/4/8 digital inputs, when any one of the inputs triggered, will start the siren or switch on the light automatically. in the meanwhile, the GSM 3G 4G SMS RTU Controller will send SMS Alert the to owners immediately. This is very useful if you need protect your assets with low cost solution.

Mainly Features of the GSM 3G 4G SMS RTU Controller-Alarm:

 Quad band 850/900/1800/1900Mhz GSM GPRS Module inside;

 3G UMTS/HSDPA/4G Modules are optional.;

32 bit MCU, reliable performance with in-built watchdog;

1 Relay output (240VAC@3A) can be switched ON/OFF by sending a SMS text;

 1 relay output (240VAC@3A) can be switch on 4minutes if any inputs triggered;

 8 Alarm logic inputs, supports dry contact and wet contact;

 Dry contact type: NC, NO,EOL(End resistor of line, to avoid disconnection event);

 Wet contact type: 0~0.5VDC consider as short circuit, +3~+30VDC consider as open circuit;

 3 SMS Alert numbers and 5 auto-dial numbers can accept to the alarm message;

 Supports armed, disarmed, inquiry status, switch on or off relay output by SMS Commands;

 Supports input status recovery, external power failure alert by SMS texts;

 Password protected, prevents unauthorized user;

 Can be set up and programmed from PC Programmer by USB cable;

 Backup rechargeable battery inside, can work for 24hours when power off;

 Based on GSM,3G,4G cellular Network, can be operated from anywhere, no distance limitation;

 Widely rated voltage range  from 9~36VDC, supports over voltage protection and phase-reversal protection;

 Wall mount or 35mm standard DIN rail Design, convenient installation, external dimensions 70*88*30mm.

Why KING PIGEON?

King Pigeon is a professional GSM/GPRS/3G wireless Alarm System, GSM elderly alarm,SMS Controller, Industrial Remote Controller, RTU Data Logger, Telemetry, Temperature Measurement Logger, Power Monitoring, M2M products Designer & Manufacturer in China since 2005.

Welcome OEM/ODM Service

Put Your LOGO on Unit and Package Available!

1.  How to make sure the quality?

•  Process Quality Control
•  Final Quality Control
•  Outgoing Quality Control

2.  How to get the order?

• First,Tell us the model and quantity of the products you want.
• Second ,we will make a PI for you.
• Third, After confirm everything,the payment will be arranged (Paypal, Western Union,T/T or Ali Trade Assurance for your money safety are welcomed)
• Fourth, we will send you the goods within the promissory time.

3.  How about the Shipping?

• The DHL,UPS,Fedex,TNT usually calculate the shipment based on measure size or weight. They compare the measurement size in Cube meters and Gross weight, and choose the large value to calculate the shipment cost.  (Calculation Formula is : L*W*H/5000=Measurement Size weight, unit is cm)

•  Reference Shipment Cost

        For example, ship to Denmark from China.

•  Our recommends:

          For samples, ship by Express, usually 3-5days.

          While place small order, try to make the finial weight more than 21Kg.

          If the order weight less than 100Kg, recommend to ship them by Express.

          If the weight is 101kg~200kg recommend to ship them by Air-cargo or express;

          If the weight is above 200kgs, recommend to ship them by air cargo or by sea.

• For small order by express, 20-30 pcs per order is the best.

4.  What's the delivery time?

• Sample within 1-3days;
•  Wholesales 4-7days according different quantities;
•  OEM 7-14 days after all info confirmed.
• ODM depends on the detail requirements.

5.  What is the warranty of your company?

• 2~3 years warranty for the main unit; one year warranty for the accessories.
• Please send back the defective goods within the warranty period, we will repair them or send you new free.
• Please send to us some pictures and video about it need to confirm your problem then we will send you free new goods or parts instead.

6.   Can you do the design for us?

Yes, Just tell us your idea (logo,text., etc) and our professional R&D team will help to carry out your ideas into reality.
