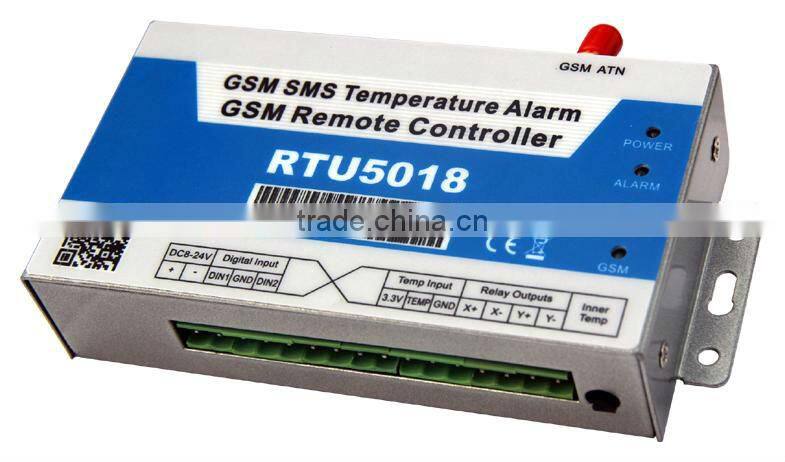

GSM SMS Temperature Controller with DS18B20 Temperature Probe
SMS Remote Controller, Home Automation
Turn Relay ON OFF by Mobile Phone/SMS Text Command
Model: RTU 5018 (2DIN,2Dout,1PIN,1AIN,1Temp)
Name: GSM SMS Controller (GSM RTU)
Remote switching machines with a FREE call from your mobile phone!
Remote inquiry the Unit status with a FREE Call from your mobile phone!
Inquiry the Data Acquisition Value with a FREE Call from your mobile phone!
Ultra-Low Cost & Multifunctional & Programmable GSM RTU
The RTU5018 can meet your requirements!
The GSM SMS Controller RTU5018 is a very simple programmable I/O ports (2DIN, 2DOUT, 1 PIN, 1 AIN, 1Temp. Input) and cost effective GSM RTU which can be used for data acquisition, remote switching machine, temperature monitoring, Pulse Counter, automation system and other applications.
Just dial from Authorized User number then 1 or 2 relay output will be switched ON/OFF. There are no communication costs, the GSM SMS Controller Alarm rejects the call from authorized number (Call-ID) then carries out the turn ON/OFF action.
The RTU5019 also supports interval time to report the Analog input value, Digital output status, pulse counter and temperature to the authorized numbers, and also can report the value of them while the threshold of the ultra-high----high, low ---- ultra-low occurrence.
Moreover, the RTU5018 with 2 digital inputs for digital outputs, when any one of the inputs triggered, will activate one or both of the relay outputs, in the meanwhile, the RTU5018 will send SMS Alert to owners immediately. This is very useful if you need protect your assets with low cost solution.
In one word, the GSM SMS Controller RTU5018 is the best choice for lots of applications.
Main Features:
2 digital inputs for water level, magnet contact,motion detect,heat detect,smoke detect,etc.
1 temperature input for cold room,water pool,warehouse,storeroom,refrigerator turck,refrigeration storage,vila,house temperature monitoring.
1 pulse counter input for vending machine,vending room,visitors flow rate monitoring.
2 relay controlled by authorized phone call(Call-ID),SMS command,Timer,or controlled by input’s activation.
Up to 6 authorization phone number.
Backup battery inside.
King Pigeon RTU5016~5019 comparison table for reference
ITEM | TYPE | SPECIFICATION | RTU5016 | RTU5017 | RTU5018 | RTU5019 |
INPUT | Digital | Dry contact, NC/NO | 2 | 2 | 2 | 2 |
Analog | 4-20mA,or 0-5V,or 0-20mA,10bits | / | 1 | / | 1 | |
Pulse Counter | Interval/total: 00000~99999 | 1 | / | / | 1 | |
Temperature | DS18B20, Accuracy:0.5*, detect range:-55~+125 Centigrade, -67 to +257 Fahrenheit) | / | / | 1 | 1 | |
OUTPUT | Digital | Dry contact Relay, capacity:250V/10A | 2 | 2 | 2 | 2 |
APP | Android | Download on our website | Yes | Yes | Yes | Yes |
iOS | Download iKeypad on APP STORE | Yes | Yes | Yes | Yes |
Specifications of the GSM SMS Controller:
Parameter item | Reference scope |
DC Power supply | 8~24VDC 2A |
Power consumption | 12V input Max. 50mA/Average 50mA |
Frequency range | Dual band 900/1800 MHz (Default) |
SIM Card | Supporting 3V SIM Card |
Antenna | 50 Ω SMA Antenna interface |
Temperature range | -20-+60 Centigrade |
Humidity range | Relative humidity 90% (condensation free) |
Relay Output | 2, Dry Contact, NO type, 10A/250V AC |
Digital Input |
|
Pulse Input |
|
Analog Input |
|
Temperature Input | 1, Internal included, exteranal is optional, 12bits, measure range :–55 to +125 Centigrade (–67 to +257Fahrenheit), 0.5°C accuracy from –10 to +85 Centigrade |
Backup Battery | 900mAH, last 18hours |
Exterior dimension | 150mm*71mm*30.30mm |
Net Weight | 600 g |
Standard Packing list of the GSM SMS Controller RTU5018:
GSM SMS Controller RTU5019 main panel X 1
AC100~240V to DC 12V/2A Power Adaptor X1 (UK,EU,AU,USA power plug available)
DS18B20 Temperature probe X1(Inbuilt)
Backup Battery X 1 (Inbuilt, 900mAH)
GSM Antenna X 1
Connection socket X 1set
User Manual CD X 1
Note: The package does not include any SIM card.
