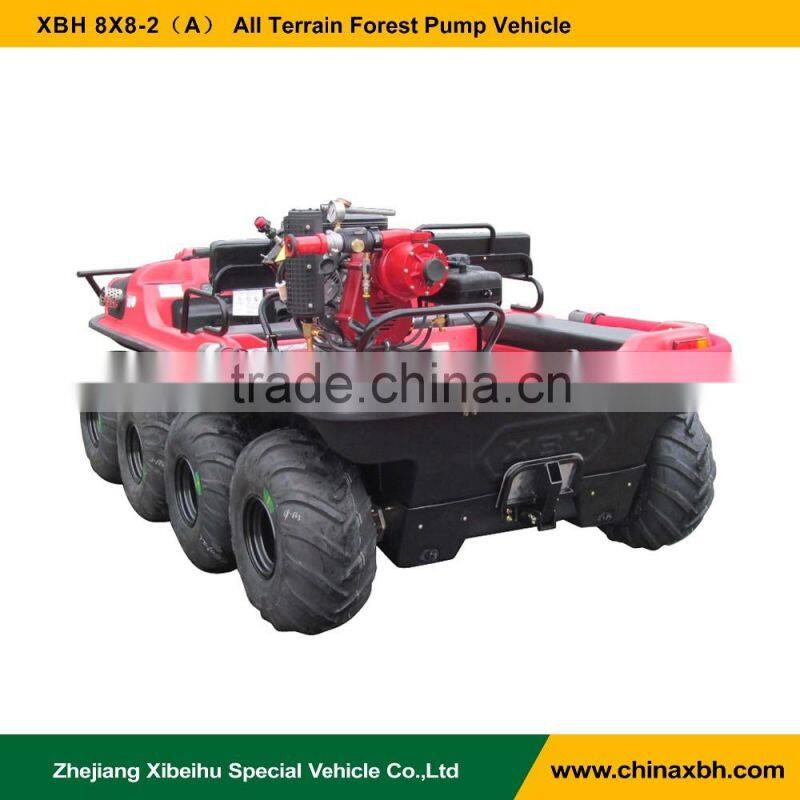

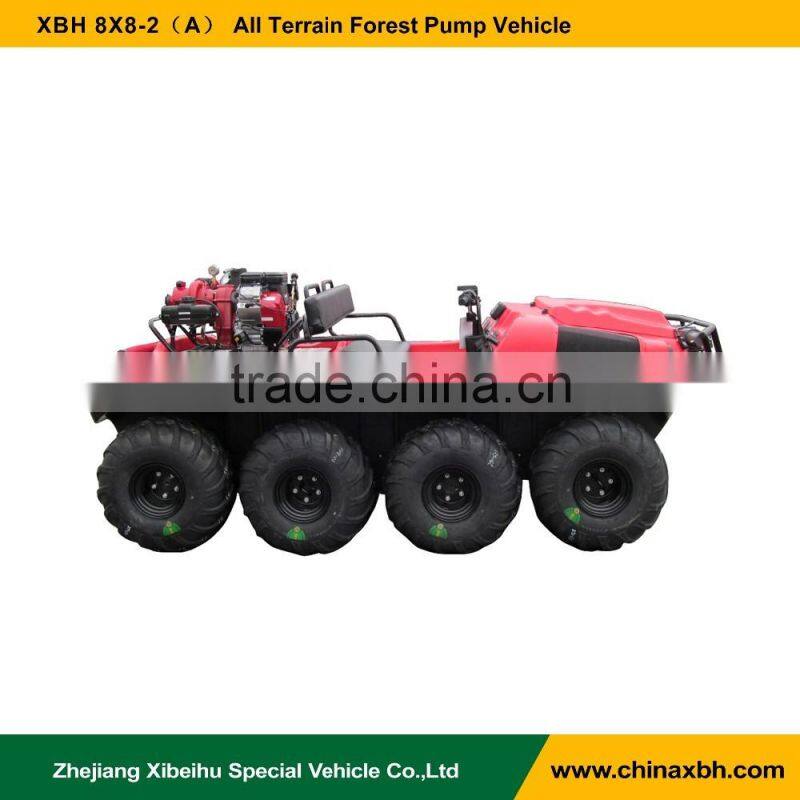

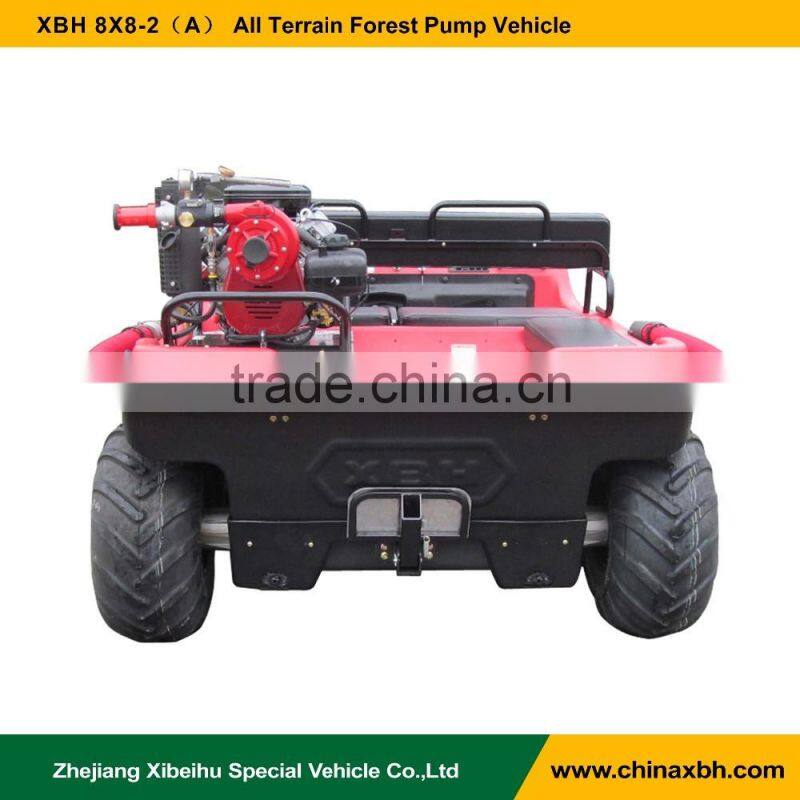

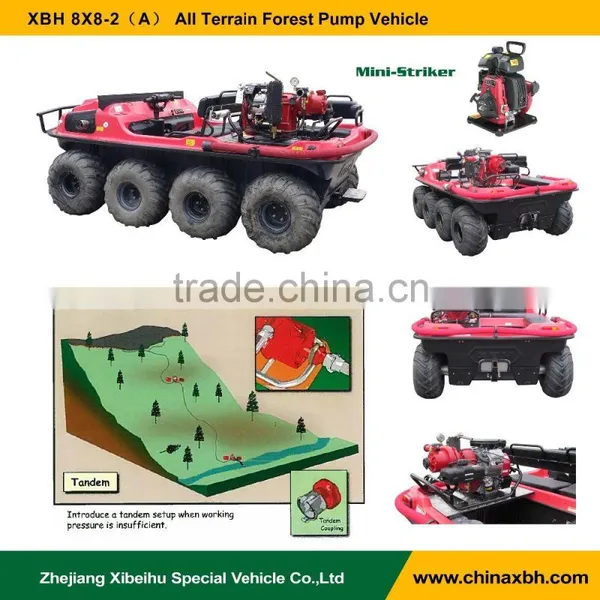

XBH 8X8-2 Forest Pump Vehicle ATV

XBH 8X8-2 Forest Pump Vehicle ATV thumbnail-1
XBH 8X8-2 Forest Pump Vehicle ATV thumbnail-2
XBH 8X8-2 Forest Pump Vehicle ATV thumbnail-3
XBH 8X8-2 Forest Pump Vehicle ATV thumbnail-4
XBH 8X8-2 Forest Pump Vehicle ATV photo-1
XBH 8X8-2 Forest Pump Vehicle ATV photo-2
XBH 8X8-2 Forest Pump Vehicle ATV photo-3
XBH 8X8-2 Forest Pump Vehicle ATV photo-4
Negotiable MOQ: 3 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Zhejiang Xibeihu Special Vehicle Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Chain Drive
Certification Other
Brand Name XIBEIHU
Place of Origin Zhejiang, China
Model Number XBH 8X8-2



Body Parameters:

Dimension

3160×1720×1150mm

Wheel Base

670×670×670mm

Track

1420mm

Minimum Ground Clearance

180mm

Curb Weight

800kg

Rated Load

On Land:300kg(4 People)

Performance Parameters:

Start Mode

Key

Ignition Mode

EFI

Battery Specification

12V/60Ah

Drive Mode

On Land: All-wheel Drive

Top Speed

On Land:45km/h

Minimum Turning Radius

0.71m

Maximum Climbing Angle

32 º

Approach Angle

54 º

Departure Angle

57 º

Brake Mode

Caliper Hydraulic Brake

Tyre Specification

25×12(11.5)-9NHS

Tyre Pressure

5-7psi (34.5-48.3kPa)  With Track: 3-5psi(20.7-34.5kPa)

Transmission Mode

Belt and Chain Transmission

Dynamic Parameters:

Engine Model

SQR372

Engine Type

Vertical 3-Cylinder, Water-cooling, 4-Stroke, Inline DOHC

Oil-supply Mode

MPI

Cylinder Diameter ×Stroke

3-72×66.5mm

  Displacement

812ml

Compression Ratio

9.5:1

Rated Power and Turning Speed

39kW(6000r/min)

Max. Torque and Turning Speed

70N·m(3500~4000r/min)

Idle Speed

900±50r/min

Lubricating Mode

Pressure and Splash Lubrication

Cooling Mode

Forced Circulation and Antifreeze Coolant

Clutch System

CVT

Transmission Type

CVT+2 Forward Gears, Neutral, Reverse Gear

Fuel Type

Gasoline 93#

Oil Tank Capacity

38L

BB-4 High Pressure Forest Fire- fighting Pump:



Product Model

BB-4



Displacement

627cc



Maximum Pressure

440PSI(30.3bar)



Flow Rate

401L/mins



Maximum Lift

310m



Output Power

23HP/17.2kW



Engine Model

Four stroke air cooled single cylinder



Start System

Electrical



Ignition System

Magnetron



Lubrication supply

Oil



Fuel consumption

6.8 L/H



Outline Dimension

890×570×540mm



Inlet Diameter:

51mm



Outlet Diameter:

38mm



 Weight

77kg

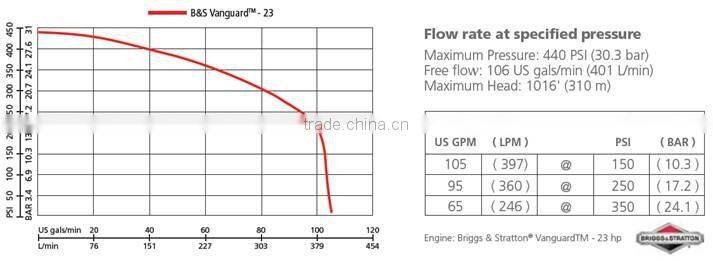

Flow and Pressure Parameters Curve
