China Sports Vehicle Amphibious Atv

Body Parameters:

Dimension

3160×1720×1150mm

Wheel Base

670×670×670mm

Track

1420mm

Minimum Ground Clearance

180mm

Curb Weight

750kg

Rated Load

On Land:500kg(6 People) On Water:300kg(4 People)

Performance Parameters:

Start Mode

Key

Ignition Mode

EFI

Battery Specification

12V/60Ah

Drive Mode

On Land: All-wheel Drive  On Water: All-wheel Drive or Outboard Drive

Top Speed

On Land:45km/h         On Water: 5km/h(Tyre Stroke)or 12km/h(15HP Outboard)

Minimum Turning Radius

0.71m

Maximum Climbing Angle

32 º

Approach Angle

54 º

Departure Angle

57 º

Brake Mode

Caliper Hydraulic Brake

Tyre Specification

25×12(11.5)-9NHS

Tyre Pressure

5-7psi (34.5-48.3kPa)  With Track: 3-5psi(20.7-34.5kPa)

Transmission Mode

Belt and Chain Transmission

Dynamic Parameters:

Engine Model

SQR372

Engine Type

Vertical 3-Cylinder, Water-cooling, 4-Stroke, Inline DOHC

Oil-supply Mode

MPI

Cylinder Diameter ×Stroke

3-72×66.5mm

  Displacement

812ml

Compression Ratio

9.5:1

Rated Power and Turning Speed

39kW(6000r/min)

Max. Torque and Turning Speed

70N·m(3500~4000r/min)

Idle Speed

900±50r/min

Lubricating Mode

Pressure and Splash Lubrication

Cooling Mode

Forced Circulation and Antifreeze Coolant

Clutch System

CVT

Transmission Type

CVT+2 Forward Gears, Neutral, Reverse Gear

Fuel Type

Gasoline 93#

Oil Tank Capacity

38L

Others:

Optional Equipment: Bumper, Drain Equipment, Traction Ball Head, Safety Belt, Rear Foot Pedal, Winch, Outboard Motor,  Track, Foldable Windshield, Windshield Wiper, Anti-roll Rack, Top, Convertible Top, Utility Storage Pouch, Vehicle Cover, Alert Lamp, Four-way Overheating Prevention System, Heating System, Snow Plough, Breakwater Board etc.

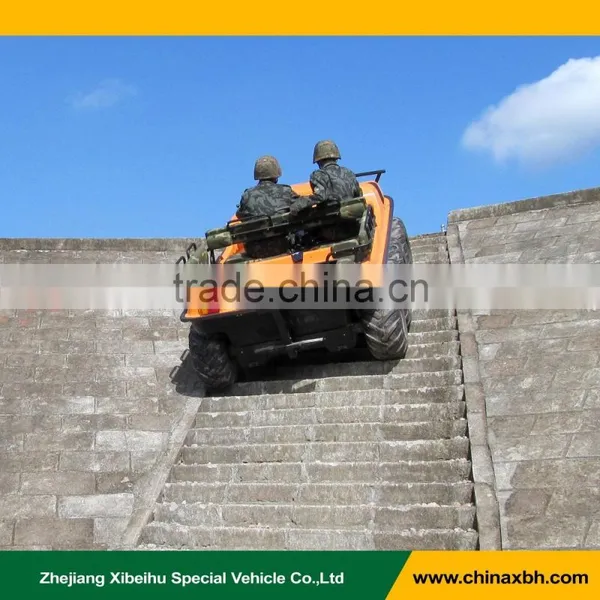

Performance Characteristics: 8×8 All Wheel Drive, Braking Differential Steering, CVT, 32 Degree Climbing, 360 Degree Turning on the Ground, 1 Meter Wide Trenches Across, ±40 ℃ Temperature Work and Full-sealed High Strength Vehicle Body etc.

Certificate: CE certificate, CCS certificate and National Motor Vehicle Products Quality Supervision and Inspection Center certificate.

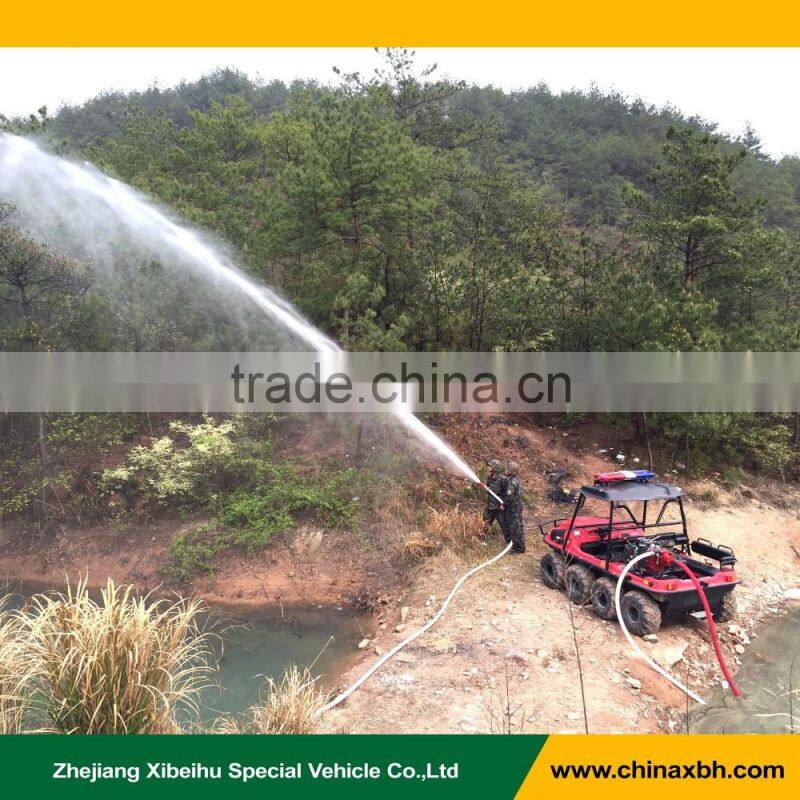

Functionality: Rescue, Exploration, Hunting, Fishing, Tourism, Entertainment etc.

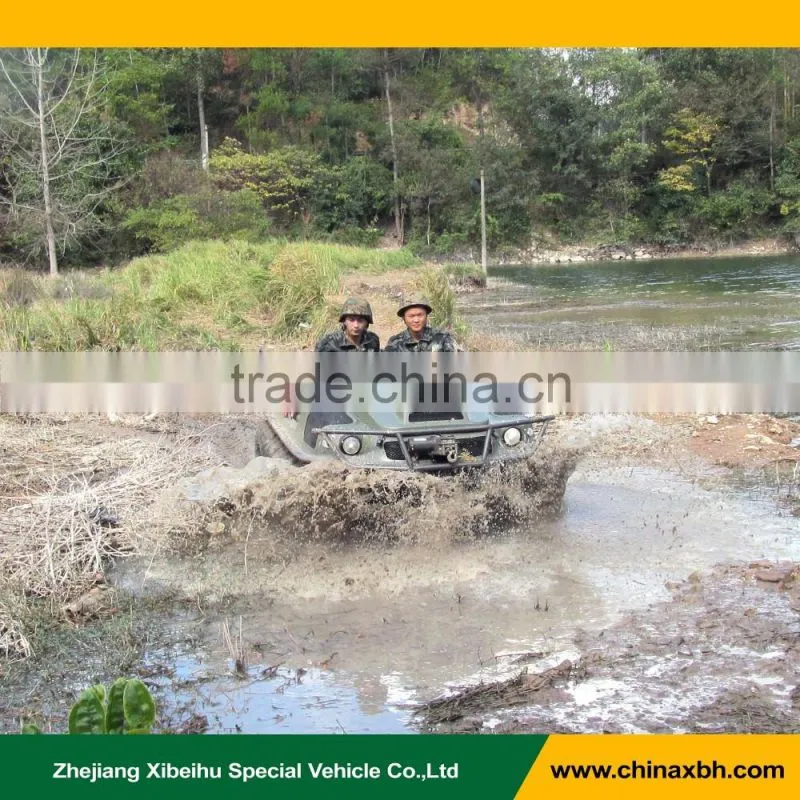

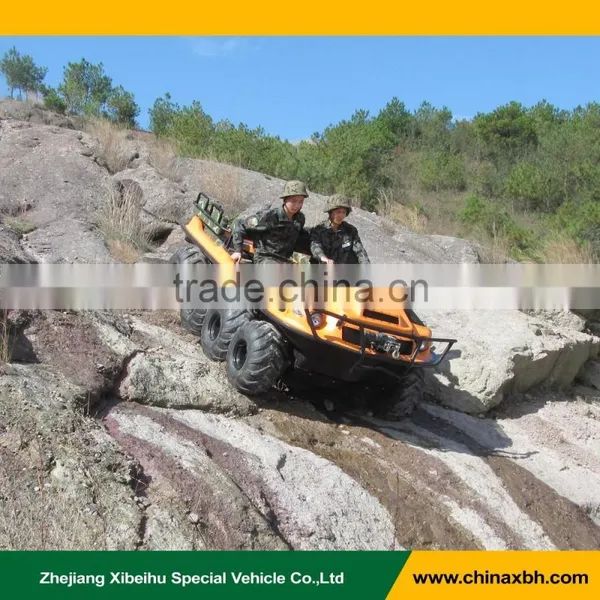

Application Scope: All Terrains such as Swamp, Beach, Non-paved Road; Rivers, Lakes and other Calm Waters ( 4 grade water); Hills, Snow Land, Forest, Desert etc.
