XBH 8x8-2(C) Emergency Lighting Vehicle atv amphibious vehicles all terrains car

Name: XBH 8x8-2(C) Emergency Lighting Vehicle atv amphibious vehicles all terrains car
Brand: XIBEIHU
Price: USD $10,000 - 15,000 / Piece

FOB Price

USD $10,000 - $15,000 / Piece

3 Pieces(Min.Order)

Supply Ability 100 Unit / Units per Month
Port Ningbo

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Fuel:	Gas / Diesel	Engine Type:	4 Stroke
Transmission Type:	Automatic	Transmission System:	Chain Drive	Certification:	Other, CE
Brand Name:	XIBEIHU	Place of Origin:	Zhejiang, China	Model Number:	XBH 8x8-2(C)

Product Description

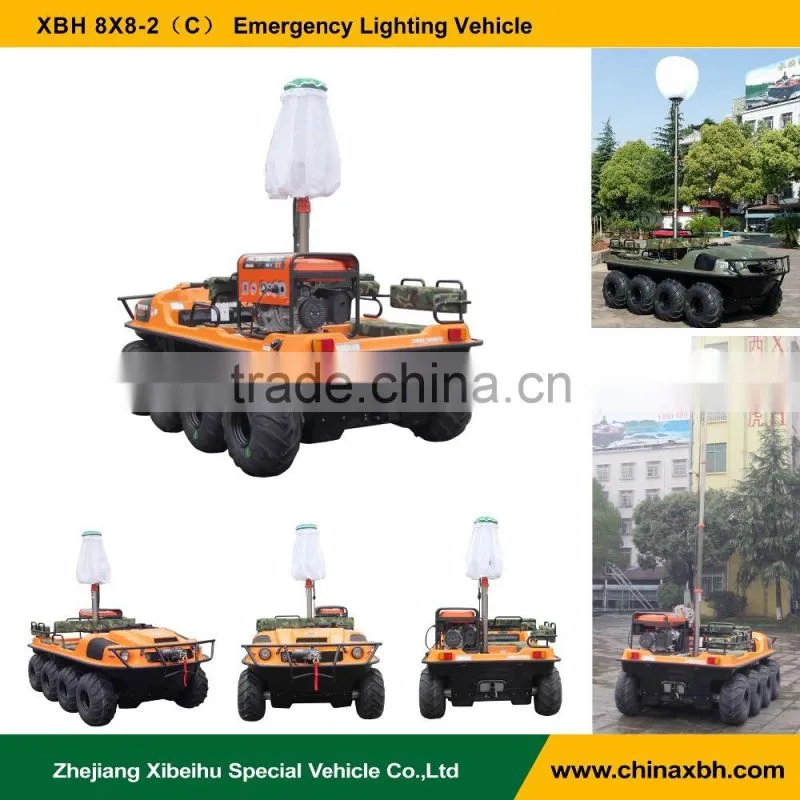

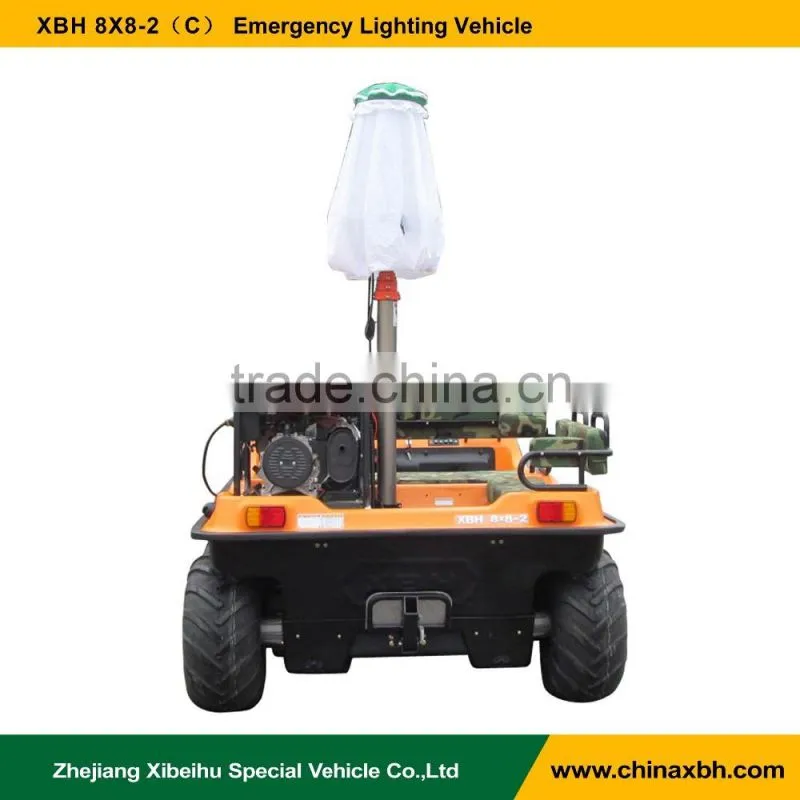

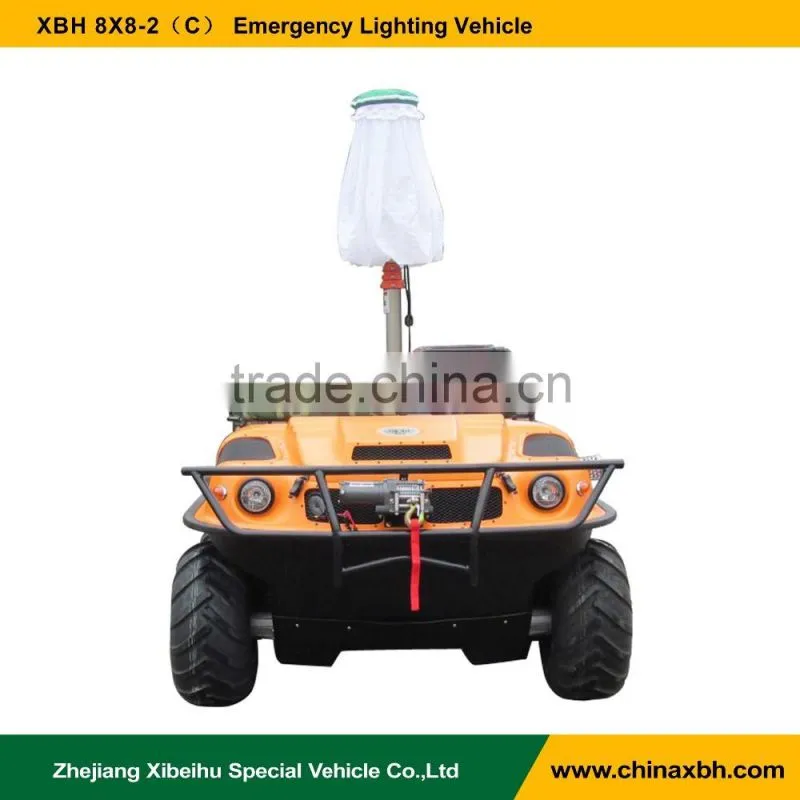

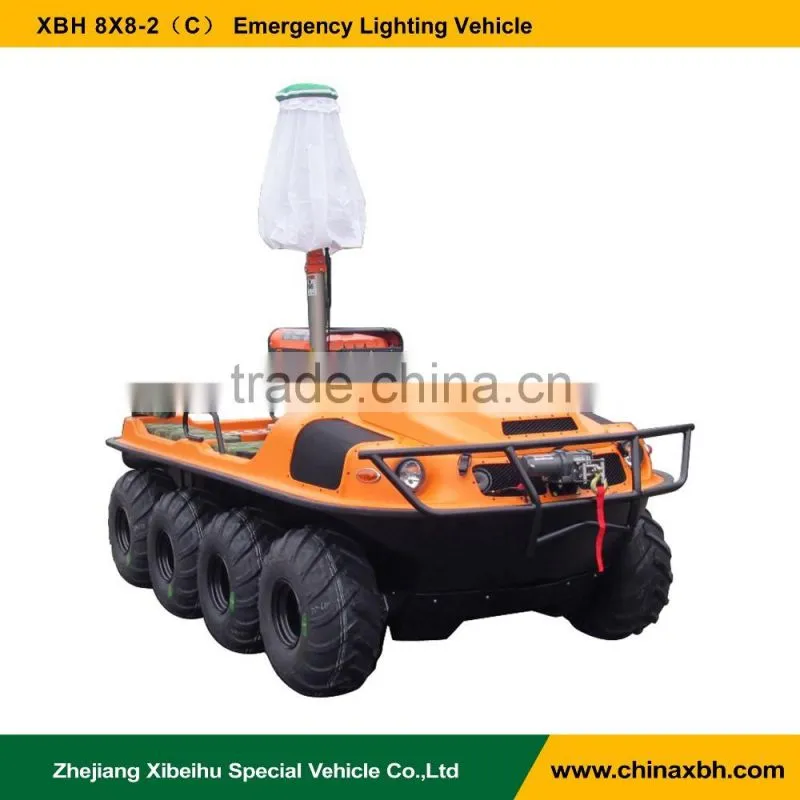

XBH 8x8-2(C) Emergency Lighting Vehicle atv amphibious vehicles all terrains car

Product Description

Model:XBH 8×8-2(C)Emergency Lighting Vehicle

Diesel engine vehicle with emergency lighting and power supply vehicle major parameters:
Dimension	3160×1720×1150 mm(Height with Moon Light:2500mm)
Wheel Base / Track	670×670×670 mm / 1420 mm
Minimum Ground Clearance	180 mm
Complete Vehicle Kerb Mass	900 kg
Rated Load	On Land:300 kg(4 People) On Water:150 kg(2 People)
Top Speed	On Land:35 km/h On Water: 5 km/h(Tyre Stroke)/12 km/h(15HP Outboard)
Minimum Turning Radius	0.71 m
Maximum Climbing Angle	32 º
Engine Model / Engine Type	Diesel, 3M78/ Inline, Water-cooled, Four-stroke, Tunnel-type
Cylinder Diameter ×Stroke	3-78×78.4 mm
Displacement / Compression Ratio	1123 ml / 22:1
Rated Power and Turning Speed	8~18 kW(1800~3600 r/min)
Max. Torque and Turning Speed	60 N·m(1800~2200 r/min)
Fuel Type / Oil Tank Capacity	Diesel 0# / 38 L
Gasoline engine vehicle with emergency lighting and power supply vehicle major parameters:
Dimension	3160×1720×1150 mm(height with moon light:2500mm)
Complete Vehicle Kerb Mass	920 kg
Rated Load	On Land:300 kg(4 People) On Water:150 kg(2 People)
Top Speed	On Land:45 km/h On Water:5 km/h(Tyre Stroke)/12 km/h(15HP Outboard / Jet Pump)
Minimum Turning Radius	0.71 m
Maximum Climbing Angle	32 º
Engine Model / Engine Type	SQR372 / Vertical 3-Cylinder, Water-cooling, 4-Stroke, Inline DOHC
Rated Power and Turning Speed	39 kW(6000 r/min)
Max. Torque and Turning Speed	70 N·m(3500~4000 r/min)
Emergency lighting and power supply system:
Power supply	Output power without emergency lighting:5.5kW; Output power with emergency lighting:3kW; AC220V outlet can be provided upon requested.
Emergency lighting	Voltage:AC220V,Power:1000W×2 Controls:hand-operated switch,50m remote control Luminous flux:9600lm×2 Lighting radius:150m Pneumatic liftable light:2500~4500mm(height),well sealed and can hold for 24 hours, fine appearance, smooth elevation Fast starting:Light bulb fast expands to be ready within 45 seconds Long life span:12000h Wind resistance:≤7grade Pitch :≤10 degree Level of protect:IP54 Environment protection:No pollution Anti-dazzling:No shadow in a large 360°area;do not cause dazzling for drivers passing by and visible from far away
Others:
Functionality	To provide emergency lighting and power supply for rescue vehicles on land or water operations
Applications	Night operations, emergency repairs, disaster rescue, fire-fighting, crime scene evidence-taking, traffic control, Ad shooting, etc.

Company Information

In 2005, Yiwu Xi Beihu Special Vehicle Co., Ltd., which is specially engaged in the development, production and sales of amphibious special vehicles, is a high-tech enterprise invested by Jia's Industrial Co., Ltd. with a total investment of 200 million yuan. The company has a dozens of senior technical staff of the product development team and the international advanced production equipment, and through the Chinese People's Liberation Army Armored Engineering Institute of cooperation to ensure that the company's research and development capabilities and technical level.

After years of research, the company has successfully developed a new generation of complete intellectual property rights of all terrain vehicle --- "Xi Beihu" amphibious special vehicles. The successful development of the car, to fill the domestic amphibious all terrain operation vehicle blank, breaking the domestic automobile industry single use limit.

The performance test and practical application show that "Xi Beihu" in the water, hills, swamps, snow, forests and other bad terrain in the free travel, and can be ± 40 ℃ in the ultra-conventional temperature environment for continuous Operations, the key technical indicators to achieve and exceed the international advanced level.
