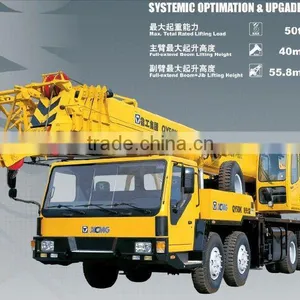

50 Ton Hydraulic Truck Crane

Shanghai Du Kai Industry Co., Ltd.

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Rated Loading Capacity:

50 Ton

Max. Lifting Height:

55.8 m

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai / Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 50 Ton

Max. Lifting Height 55.8 m

Place of Origin Jiangsu, China

Model Number NV50K

Specifications

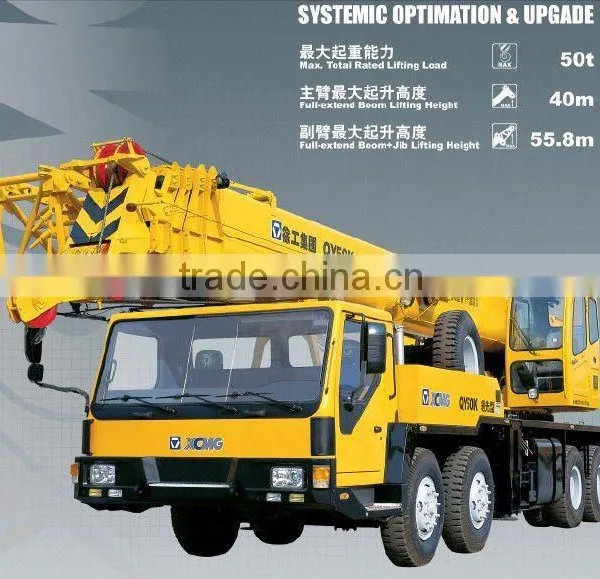

50 Ton Hydraulic Truck Crane
1 Max.Total Rated Lifting Load 50 Ton
2 Full-extended Boom Lifting Height 40M
3 Hydraulic

50 Ton Hydraulic Truck Crane

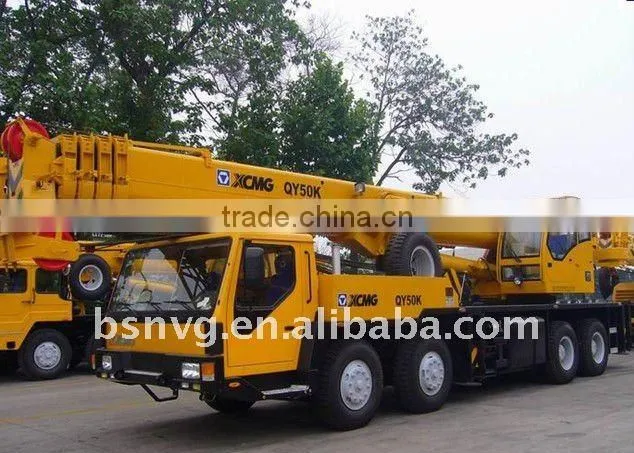

NV50K FULL HYDRAULIC TRUCK CRANE:

Adoption of several China state patents and technical know-how.
5-section telesopic boom of oviform profile and 2 section folding jib, larger working range
Full-width driver’s cab and newly-designed operator’s cab with wide field of vision, convernient for operation.
Swing system with free-sliding function can automatically align to load, Pinion offset makes meshing clearance easy to adjust.
New structure and imported steel material are used to minimize the total weight and maximize the whole vehicle performances, Main performances are in the leading position in the industry.
Electro-hydraulic proportional control system implements all operations precisely and easily.
Main hydraulic components used are international most advanced ones, the whole machine performance improved greatly.
Well-equipped safety devices such as automatic load moment limiter, hoist limit switch, wire rope over- release out-out device, make operation more safe.
Environmental and powerful engine is equipped with the crane, strong drive and good passing-ability

Dimension

Overall Length: 13100 mm

Overall Width: 2750 mm

Overall Height: 3350 mm

Outline Dimension

Weight

Dead weight in travel state: 38580 KG

Axle Load

Front Axle: 12950 KG

Rear Axle: 25630 KG

Power

Lifting Performance

Max.total rated lifting load	t	50
Min.rated working radius	m	3
Turning radius at swing tadble tail	mm	3482
Max.load moment
Base boom	kN.m	1764
Full-extend boom	kN.m	823.2
Outrigger extension distance
Longitudinal	m	5.65
Lateral	m	6.6
Lifting height
Base boom	m	10.75
Full-extend boom	m	40
Full-extend boom+jib	m	55.8
Jib offset	0° 15° 30°
