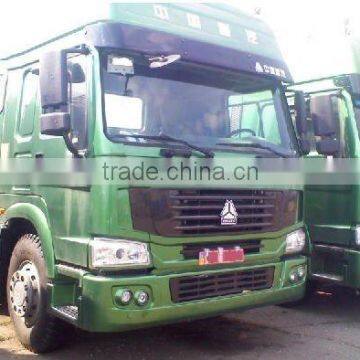

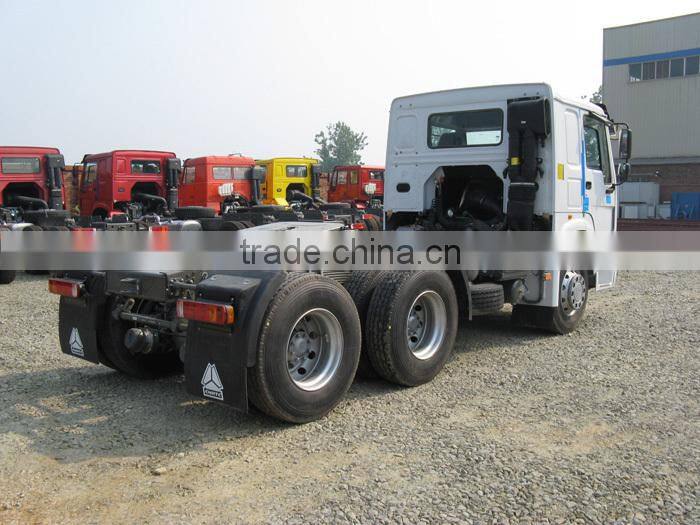

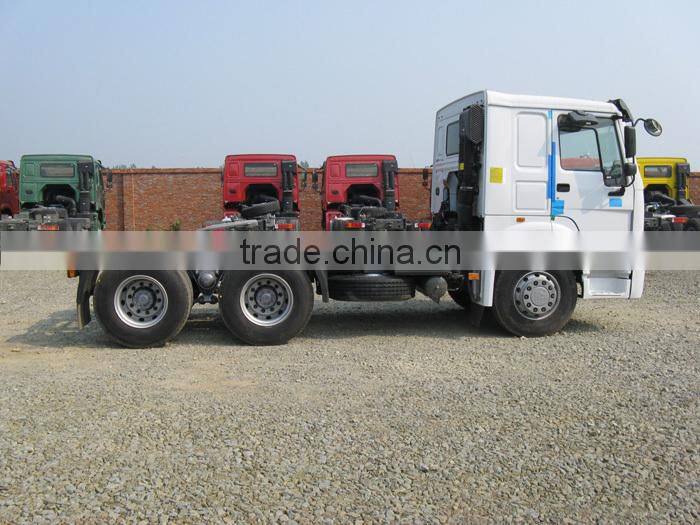

HOWO 6 Wheel Truck Tractor

Name: HOWO 6 Wheel Truck Tractor
Brand: HOWO
SKU: 141684692
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Horsepower:

251 - 350hp

Drive Wheel:

6x4

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Horsepower 251 - 350hp

Drive Wheel 6x4

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Brand Name HOWO

Size 6800x2496x2958

Gross Vehicle Weight 25000

Specifications

HOWO 6 wheel Truck Tractor
1.High load capacity, low fuel consumption.
2.Advanced technology.
3.Safe and reliable

HOWO 6 wheel Truck Tractor

ZZ4257N3241W Main Specification
Cabin
Model	HW76
Type	Lengthen cabin, single sleepers, VDO panel, control module, safe-belt with 2 locks, outer sun shade
Engine
Model	WD615.69
Rated power (kW/rpm)	247/2200
Max.torque (Nm/rpm)	1350/1100-1600
Discharge (L)	9.726
Type	6 cylinder inline, turbo charger inter cooled,WD615 engine with 2 valves, postposition suspercharger,,D12 engine with 4 valves, middle supercharger
Chassis
Gear box	430
Transmission	HW15710 (10 speeds)/ HW19710
Front axle	HF7drum, rated loading 7T,
Rear driving axle	HW1697 single reduction(ratio:3.73)
Suspension	semi-elliptic leaf springs shock absorber+ stabilizer
Steering system	ZF8098
Brake system	NO ABS
Tyre	12.00-20;(11.00-20 available)
Fuel tank capacity (L)	400
Basic Parameter
Overall size (mm)	6800x2496x2958
Total weight of trailer (kg)	39200
Loading capacity of saddle (kg)	15690
Payload (kg)	9180
Gross vehicle weight (kg)	25000
Axle base (mm)	3200+1400
Front/rear suspension (mm)	1500/725
Wheelbase(Front/Rear) (mm)	2022/1850
Work Performance
Min.ground clearance (mm)	267
Approach/departure angle ( °)	16/70
Max.speed (km/h)	102
Max.climbing capacity (%)	24
Min.turning circle (m)	15
Height from saddle to ground (mm)	1360/1326
Front/rear rotation radius (mm)	2790/2230
