3 Axles 25ton 371hp Tractor Truck

Name: 3 Axles 25ton 371hp Tractor Truck
Brand: SINTRUK HOWO
SKU: 141684694
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Horsepower:

351 - 450hp

Drive Wheel:

6x4

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianji/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Horsepower 351 - 450hp

Drive Wheel 6x4

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Brand Name SINTRUK HOWO

Size 6800x2496x2958

Gross Vehicle Weight 25000

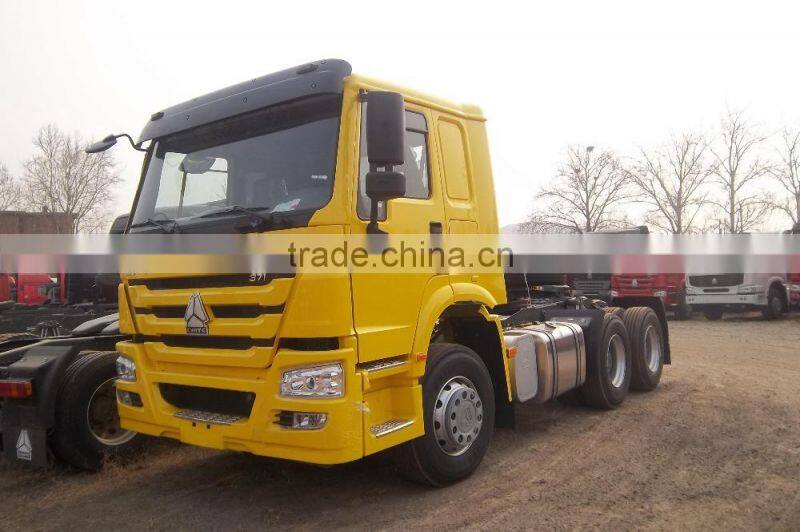

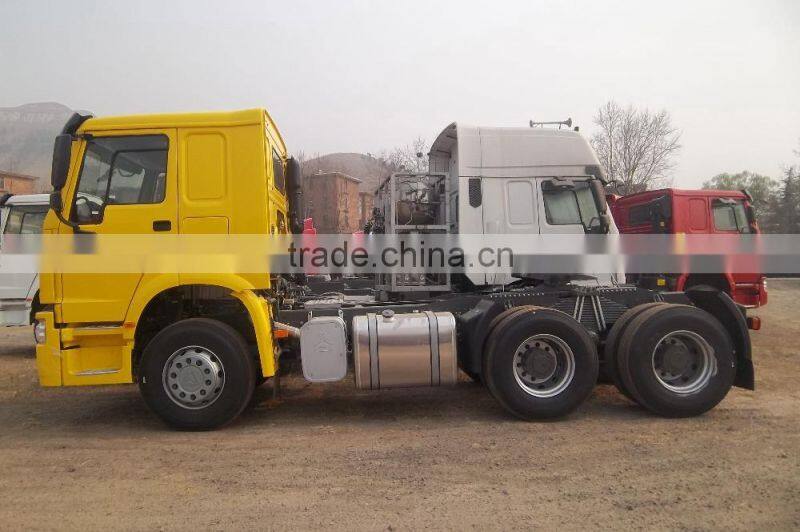

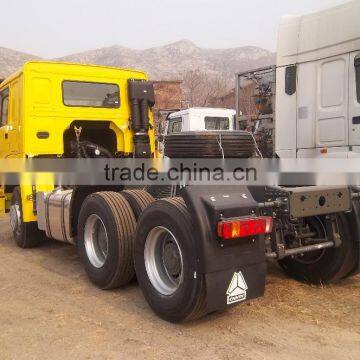

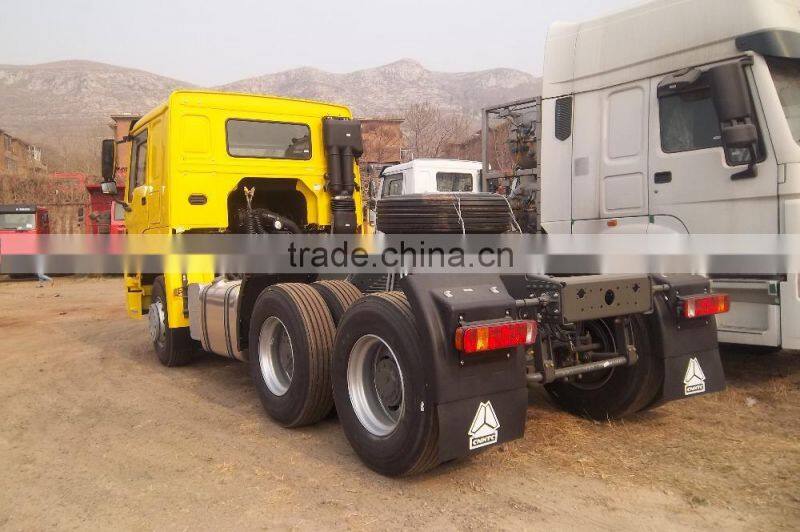

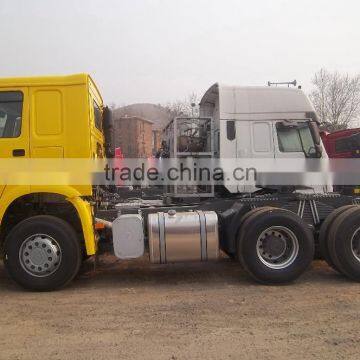

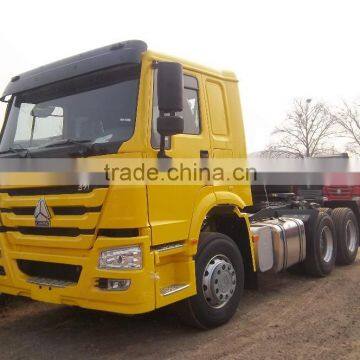

3 axles 25ton 371hp tractor truck

ZZ4257S3241W Main Specification
Cabin	Model	HW76
Cabin	Type	Lengthen cabin, single sleepers, VDO panel, control module, safe-belt with 2 locks, outer sun shade
Engine	Model	WD615.47
	Rated power (kW/rpm)	273/2200
	Max.torque (Nm/rpm)	1460/1300-1600
	Discharge (L)	9.726
	Type	6 cylinder inline, turbo charger inter cooled,WD615 engine with 2 valves, postposition suspercharger,,D12 engine with 4 valves, middle supercharger
Chassis	Gear box	430
	Transmission	HW15710 (10 speeds)/ HW19710
	Front axle	HF7drum, rated loading 7T,
	Rear driving axle	HW1697 single reduction(ratio:3.73)
	Suspension	semi-elliptic leaf springs shock absorber+ stabilizer
	Steering system	ZF8098
	Brake system	NO ABS
	Tyre	12.00-20;(11.00-20 available)
	Fuel tank capacity (L)	400
Basic Parameter	Overall size (mm)	6800x2496x2958
	Total weight of trailer (kg)	39800
	Loading capacity of saddle (kg)	15690
	Payload (kg)	9180
	Gross vehicle weight (kg)	25000
	Axle base (mm)	3200+1400
	Front/rear suspension (mm)	1500/725
	Wheelbase(Front/Rear) (mm)	2022/1850
Work Performance	Min.ground clearance (mm)	267
	Approach/departure angle ( °)	16/70
	Max.speed (km/h)	102
	Max.climbing capacity (%)	26
	Min.turning circle (m)	15
	Height from saddle to ground (mm)	1360/1326
	Front/rear rotation radius (mm)	2790/2230
