Specifications
emergency vehicles1.rated towing weight:7.3T
2.Maxlifting weight:1.5T
3.Maxlifting weight of full extending boom:8T

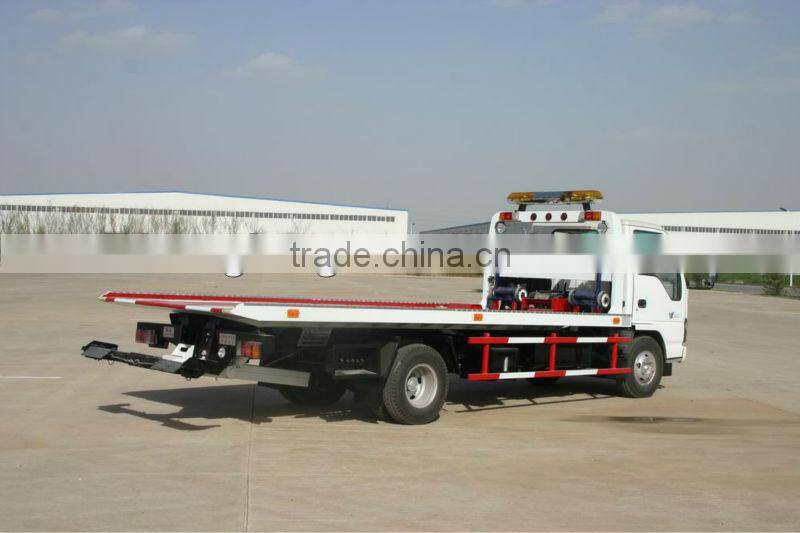

KFM5072TQZ-SQZ1503PQ KaiFan Light-duty P Series (ISUZU) Emergency Vehicles
Working Condition:
1.Altitude: 0-4500m
2.Temperature: -35°C--+45°C
3.Relative humidity: 80%
4.Wind force: ≤8degree
Working Range :
KFM5072TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
Main Parameters
Items | Unit | Value | |
Boom Structure | Rated towing weight | kg | 7300 |
Max. Lifting weight | kg | 1500 | |
Max. Lifting weight of full extending boom | kg | 800 | |
Effective length of boom | mm | 1600 | |
Extension traveling of boom | mm | 1200 | |
Elevation of boom (upper/ lower) | ° | 9~-10 | |

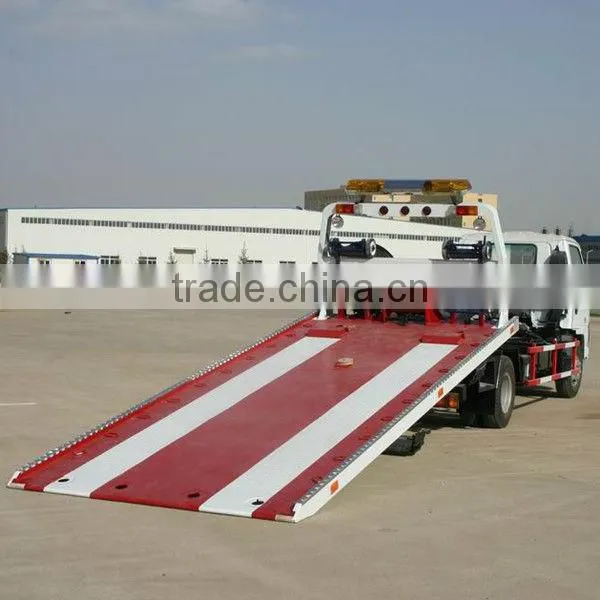

Platform Structure | Min. Elevation of full extending platform | ° | 8 |
Max. Loading of platform | kg | 3000 | |
External dimension of platform (length×width×height) | mm | 5400×2140×57 | |
Ground clearance of cage floor | mm | 1014 | |
Max. Pulling power of winch | kg | 4000 | |
Dia. Of steel cable | mm | 10 | |
Length of steel cable | m | 25 | |
Min. Speed of steel cable | m/min | 4.5 | |
Vehicle Parameters | External dimension | mm | 7460×2220×2460 |
Chassis model |
| NKR77PLPACJAY | |
Drive |
| 4×2 | |
Axle base | mm | 3815 | |
The whole weight of empty load | kg | 4170 | |
Load of front axle of empty load | kg | 1620 | |
Load of rear axle of empty load | kg | 2550 | |
The whole weight of full load | kg | 7300 | |
Load of front axle of full load | kg | 1950 | |
Load of rear axle of full load | kg | 5350 | |
Wheel base (front/rear axle) | mm | 1404/1425 | |
Front suspension | mm | 1015 | |
Rear suspension | mm | 2100 | |
Approach angle | º | 24 | |
Departure angle | º | 13 | |
Max. Speed | km/h | ≥95 | |
Max. Grade ability | % | ≥30 | |
Min. Turning diameter | m | 14.1 | |
Min. Ground clearance | mm | 190 | |
Engine model | - | 4KH1-TC | |
Engine emission | ml | 2999 | |
Rated power | kw/r/min | 96/3400 | |
Max. Torque | n·m/r/min | 280/1700 | |
Fuel type |
| Diesel | |
Standard of emission |
| EN III | |
Tire size |
| 7.50-15,7.00-16 (option 7.50R15,7.00R16) | |
Persons |
| 2 | |
If there is any question, please contact me at any time!
Name: Haitao Yan
Tel: +86 -15254123683
Skype: ady958958
