Specifications
Rated loading weight (kg)58000kgFront axle HF12 Beam boxing type front axle
Rear axle AC26(cast steel 2x26ton hub-reduction

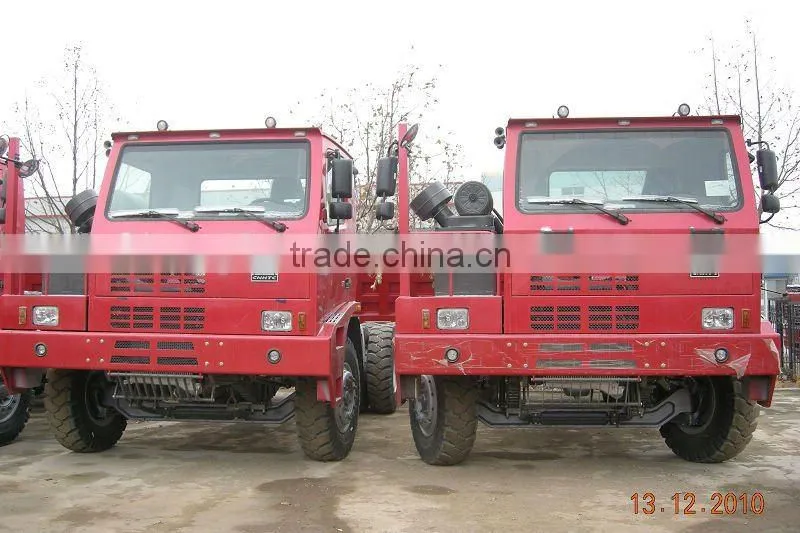

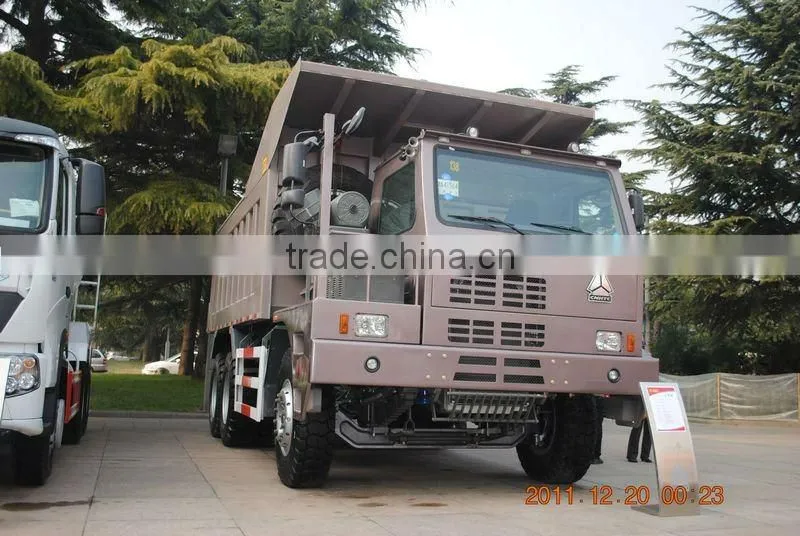

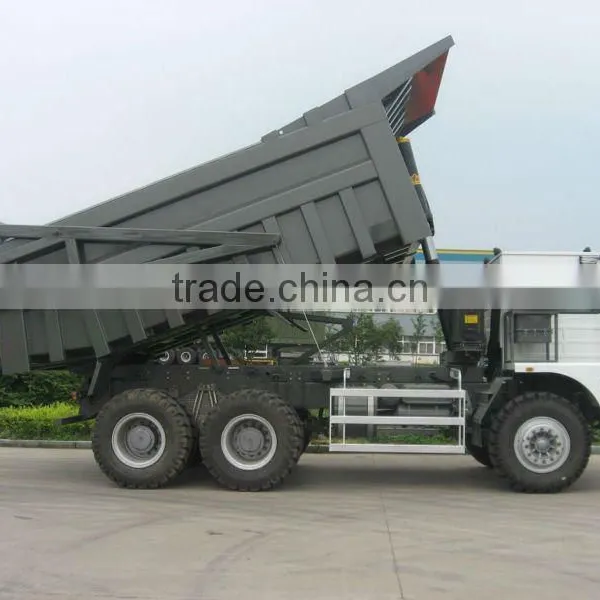

371HP Howo 70 heavy Mining Truck
Howo 70 ton mining hydraulic truck dumpers
Big loading capacity, mainly used in mining area.
High efficiency, professional
HOWO mining dump tuck is developed for mine working condition completely, applies to the transportation of open pit mine,reclamation works,steel works, hydropower construction site and port works.
The perfect functions of air window, windshield, and defrosting make it suitable for works in cold area.
Machinery Name |
HOWO off-road mining dump truck |
Driving type |
6×4 |
Chassis No |
ZZ5707V3842CJ |
Cabin |
HW7D 53° tiltable with A/C and sleeper |
Brand |
SINOTRUK HOWO |
Overall dimensions (L×W×H) mm |
8634x3296x3770 |
Dump body dimensions (L×W×H) mm |
5900x3100x1800 |
Wheel base(mm) |
3800+1500 |
Tare weight(kg) |
12000kg |
Rated loading weight (kg) |
58000kg |
Front axle |
HF12 Beam boxing type front axle |
Rear axle |
AC26(cast steel 2×26ton hub-reduction axle), cross-axle diff locks and inter-axle diff locks Speed ratio :10.47 |
Axle load |
1x6960 2x10300 |
Max.Driving speed(km/h) |
50 |
Engine Type |
4stroke,direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling |
Engine Model |
D12.42 |
Nominal power kw/(r/min) |
309kw(420hp) |
Maximum torque Nm/(r/min) |
1500/1100~1600 |
Emission standard |
12L |
Gearbox |
HW23710 |
Clutch |
Diaphragm spring clutch, diameter 430mm |
Brakes |
Service brake: dual circuit compressed air brake; Parking brake:spring enengy, compressed air operating on rear wheels Auxillary brake: engine exhaust valve brake |
Steering gear |
ZF8098,left, hydraulic steering with power assistance |
Forward gears transmission ratio |
14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.8; 1.34; 1 |
Reverse ratio |
13.91; 3.18 |
Electric system |
HOWO electric systemminus,24V, minus earth |
Fuel tank(L) |
500L |
Tire |
14.00-25NHS,1000±10kPa |
front suspension |
1500mm; Half the elliptical leaf spring with shock absorber cavitation |

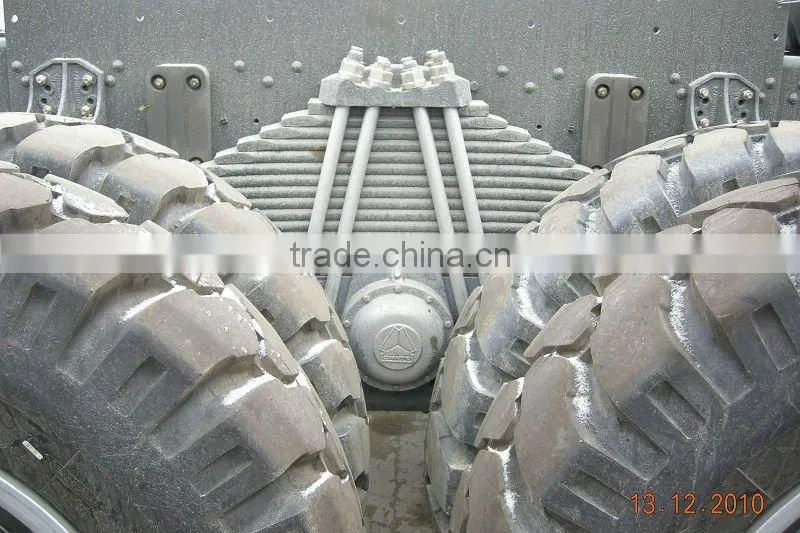

Rear suspension |
1000mm; The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt |
Color |
Red,white,green,yellow |
