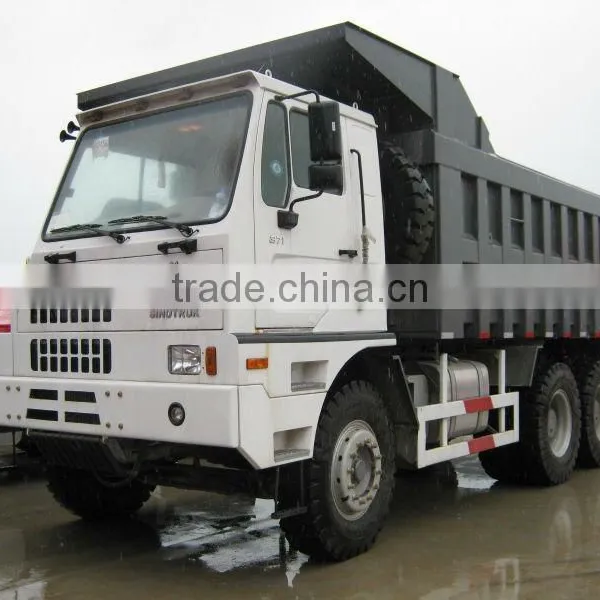

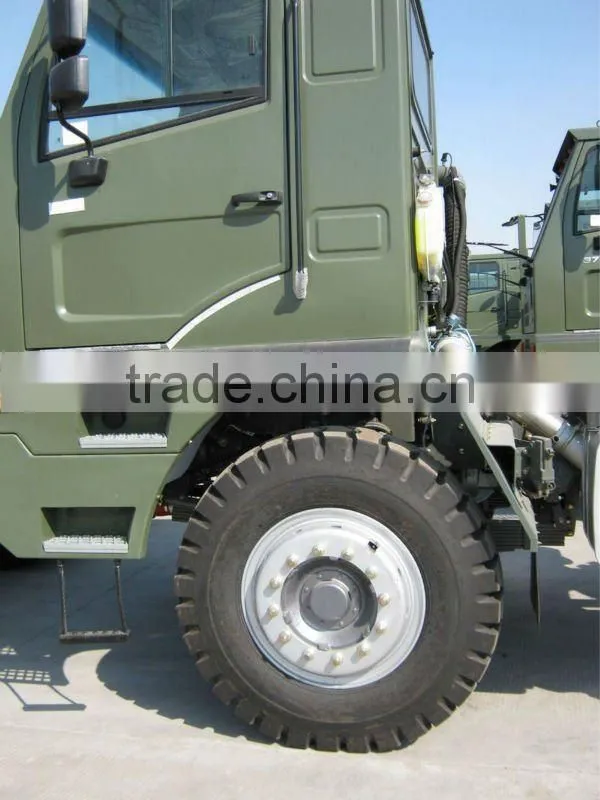

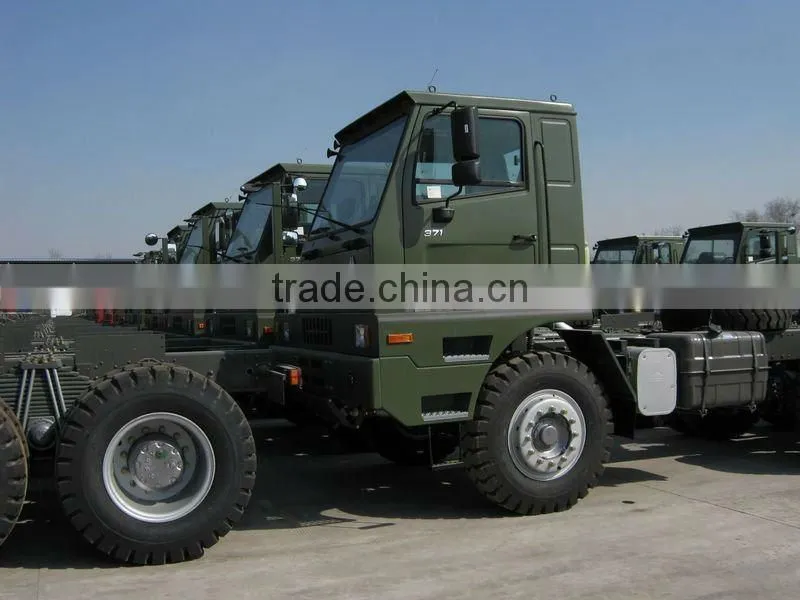

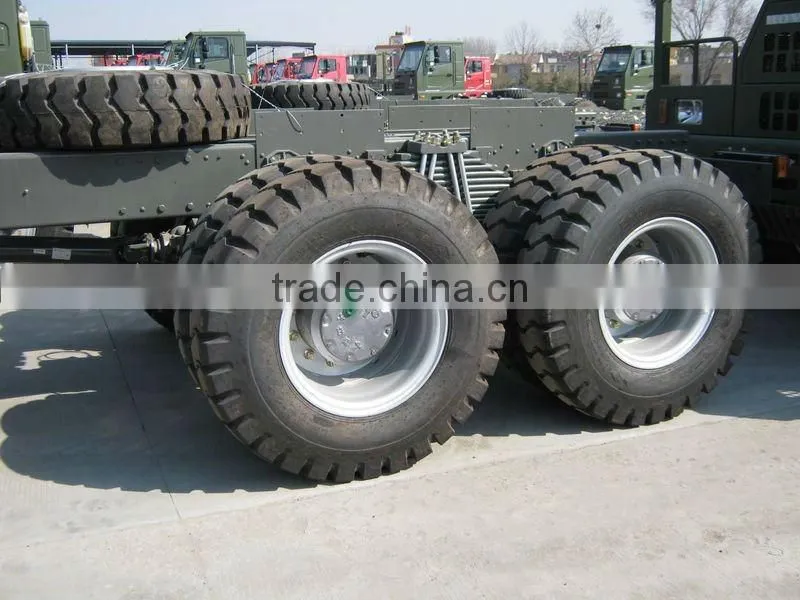

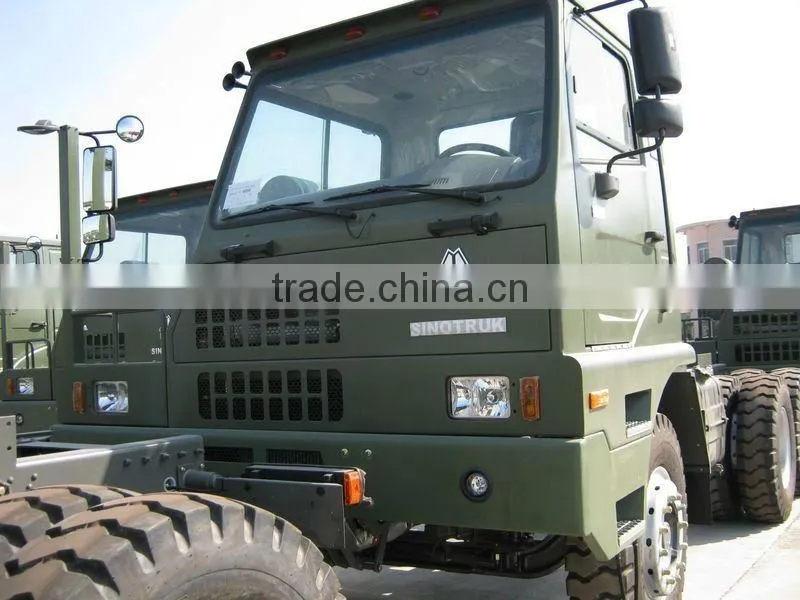

336HP 6x4 HOVA 60T DUMP TRUCK

Name: 336HP 6x4 HOVA 60T DUMP TRUCK
Brand: Sinotruk
SKU: 141683488
Availability: InStock

US$ 65,000 - 68,000 MOQ: 1 Set

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

51 - 60t

Horsepower:

251 - 350hp

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 51 - 60t

Horsepower 251 - 350hp

Condition New

Transmission Type Manual

Emission Standard Euro 2

Fuel Type Diesel

Gross Vehicle Weight 200000

Brand Name Sinotruk

Model Number ZZ5607VDNB38400

Dimensions (L x W x H) (mm) 8360x3000x3475

Specifications

Sales code HV7/336/K38/6x4D
Dimension (mm) 8360x3000x3475

336HP 6x4 HOVA 60T DUMP TRUCK

HOVA 60 ton mining hydraulic truck dumpers
Big loading capacity, mainly used in mining area.
High efficiency, professional

	Truck model	ZZ5607VDNB38400
	Sales code	HV7/336/K38/6x4D
Size parameters	Dimension (mm)	8360x3000x3475
	Dimension in container (mm)	5800x2800x1500
	Wheelbase(mm)	3800+1500
	Front overhang/rear overhang (mm)	1500/1560
	Min.ground clearance (mm)	380
	Approach angle/departure angle(°)	29/35.5
Weight parameters	Total weight(kg) / Max.rated contained quality	20000/40000
Performance parameters	Max.speed (km/h)	49
Performance parameters	Max.gradeability ( %)	50
Engine	Model	WD615.69
	Rated engine power (kw/rpm)	247/2200
	Max.torque ( N.m/r/min)	1350/1100-1600
	Specific fuel consumption (g/kw.h)	192
Clutch	SINOTRUK 430 spiral spring
Gearbox	Model	HW18710 FULLER 9
Gearbox	Ratio	14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.8 1.34 1.00 R13.91 R3.18
Drive axle	Strengthened wide steel two-grade reducing & double tires drive axle (10.24)
Front axle	HF9
Overhang	Strengthened front parallel leaf semi-oval steel spring , column shock absorber , front stabilizer bar, strengthened rear complete balancer suspension , 4 U bolts obliquely equipped on single side , rear stabilizer bar
Tire	13.00-25 13.00-20Tube
Brake system	Service brake	Dual circuit brake
	Park brake	Spring energy air cut brake
	Auxiliary	Engine exhaust brake
Electric system	Single line 24V negative grounded
Fuel tank	400L
Min.diameter of tuming (m)	22.5
