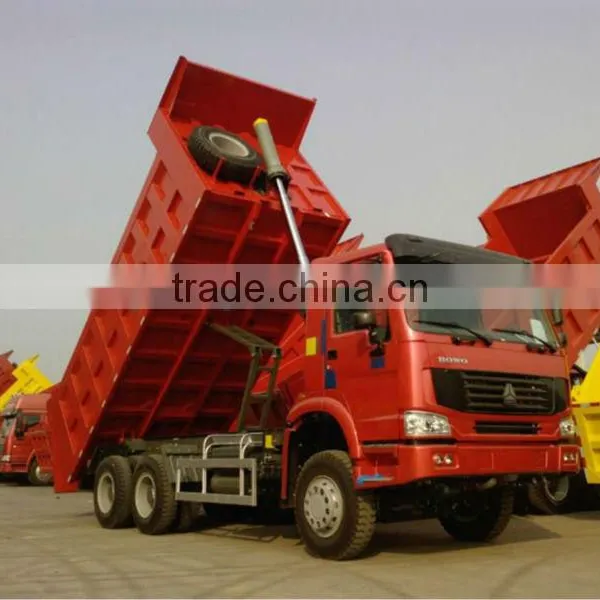

howo 6x4 dump truck/4 wheel drive dump trucks

Specifications

HOWO 6x4 dump truck
4wd dump trucks
1.driving mode:6x4
2.Fuel tank:300L
3.Driving mode:4x2;4x4;6x4;6x6;8x4;10x6

howo 6x4 dump truck/4 wheel drive dump trucks

Production Description:

A dump truck is a truck used to convey loose materials like sands, pebbles, soils, building materials, coals, ores, crops, farm products, etc. A dump truck is usually installed with a hydraulic motivated open-box bed hinged at the rear. The front of this open-box can be lift up so that the materials are discharged on the ground behind the truck.

Main Features:

1.Large torque, low rotate speed and low oil consumption

2.Compliance with EURO3/EURO4

3.Adopt to SMARTSHIFT-AMT

4.Adopt to tubeless tires, 315/80R22.5

5.The engine is tailor-made

Main Parameters:



Descriptions & Specifications()

HOWO 6×4 Tipper ZZ3257N3647B /NOB(H7/336/K36/6×4)

Engine:CNHTC brand WD615.69,  336hp

Transmission:HW15710, 10 forward, 2 reverse

Steering:ZF8098 hydraulic steering with power assistance

Cab:HW70 standard cab, air conditioner, no bunk

Rim/Tyres: 12.00-20 bias tyre(optional)

Brake: NO ABS system(optional)

Carriage Internal Dimensions:5600×2300x 1400mm

Steel thickness of Carriage:Floor: 8mm, Side:4mm

Hydraulic Lift of Carriage: F model (ventral lift)

English panel

Whole truck dimensions: 8214x2496x3370mm;   Dead weight:13060, Gross vehicle weight:32000

Color: howo red  (optional)

Fuel Tank:  300L



We would be pleased to produce individually customized trucks for you!

OPTIONAL:

[1] HOWO Tippers

[2] HOWO Concrete Mixers

[3] HOWO Tractors

[4] HOWO Water/Milk/Oil / Fuel Tank Trucks

[5] HOWO Cargo Truck

[6] Semi-trailers

howo 6x4 dump truck/4 wheel drive dump trucks
