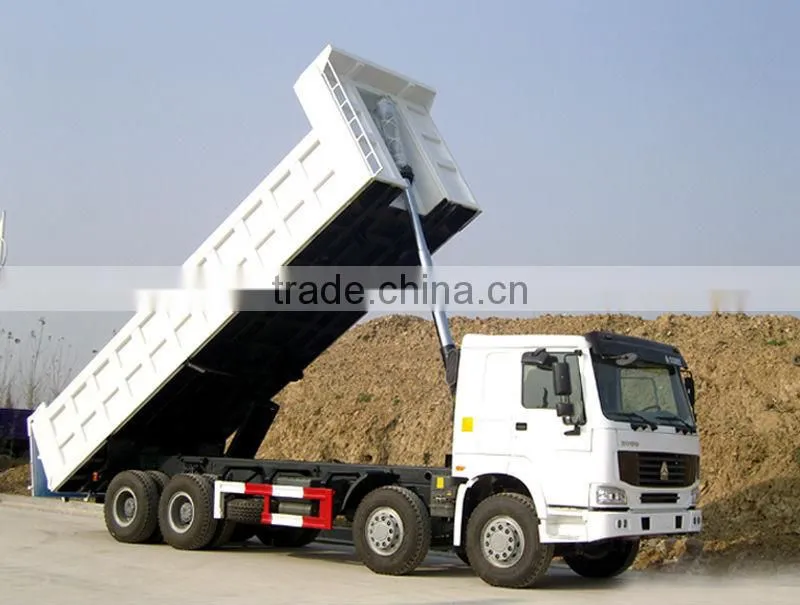

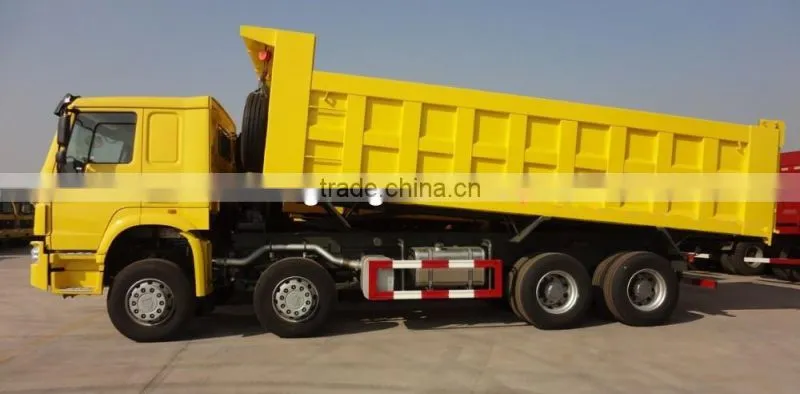

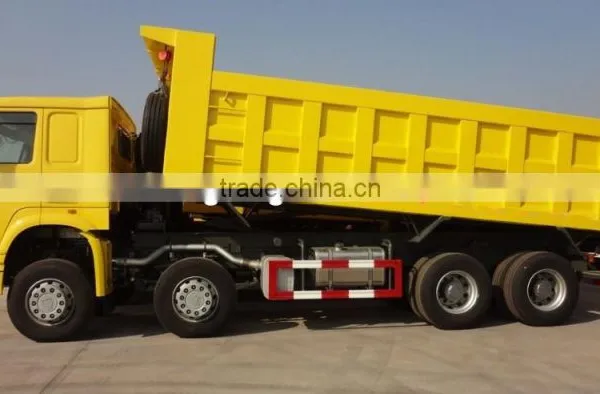

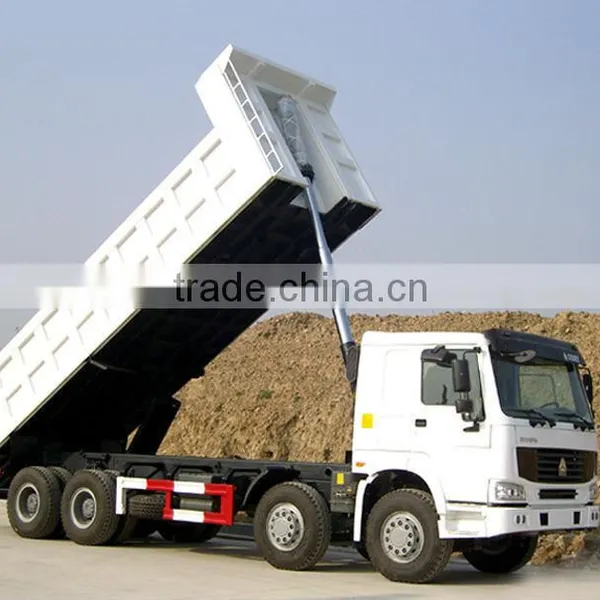

SINOTRUCK HOWO 8x4 Dump truck ZZ3317
Production Description:
A dump truck is a truck used to convey loose materials like sands, pebbles, soils, building materials, coals, ores, crops, farm products, etc. A dump truck is usually installed with a hydraulic motivated open-box bed hinged at the rear. The front of this open-box can be lift up so that the materials are discharged on the ground behind the truck.
Main Features:
1.Large torque, low rotate speed and low oil consumption
2.Compliance with EURO 2/ EURO 3 / EURO 4
3.Adopt to SMARTSHIFT-AMT
4.Adopt to tubeless tires, 315/80R22.5
5.The engine is tailor-made
Main Parameters:
Descriptions & Specifications |
HOWO 8×4 Dump truck ZZ3317N3867W |
Engine: WD615.47, 371hp , Euro II emission, LHD; |
Cab: HW76 length cab, with air-conditioner, one sleeper; |
Transmission: HW19710, 10 speeds; HW50 power takeoff |
Front axle : HF9 ,drum brake |
Rear driving axle : HC16(ration:5.73) |
Steering: ZF8118 hydraulic steering with power assistance; |
Brake system |
Driving brake: dual circuit compress air brake; |
Parking brake: spring energy,compressed air operating at rear wheel; |
Electric system : CAN bus control , voltage:24V; |
Alternator : 1540W; starter: 7.5KW; battery: 12V/165Ah, 2pcs |
Overall Dimensions (L x W x H): 10745×2496×3190 mm |
Axle base : 1800+3800+1350 mm |
Carriage Internal Dimensions: 7800 mm×2300 mmx1500 mm ; |
Steel thickness of Carriage: Floor: 8 mm, Side: 4 mm; |
Hydraulic Lift of Carriage: PERMCO FC model (front lifting); |
Gross vehicle weight : 31000 kg |
Rated loading weight : 15750kg |
Dead weight:15120 kg |
Max.driving speed : 75 km/h |
Rim/Tyres: 12.00R20 Steel tire ; |
Fuel Tank: 300 L; English panel; |
Color: howo red (optional) |
We would be pleased to produce individually customized trucks for you!
OPTIONAL:
[1] HOWO Tippers
[2] HOWO Concrete Mixers
[3] HOWO Tractors
[4] HOWO Water/Milk/Oil / Fuel Tank Trucks
[5] HOWO Cargo Truck
[6] Semi-trailers
