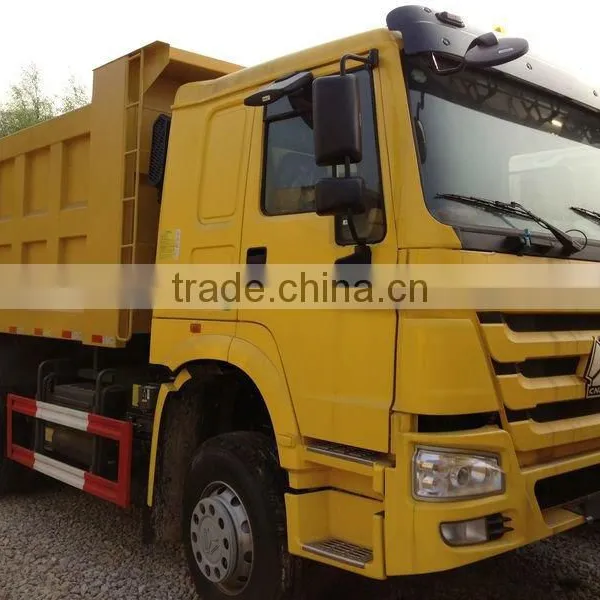

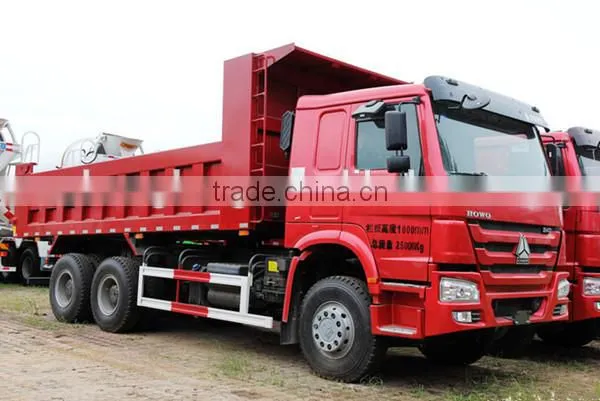

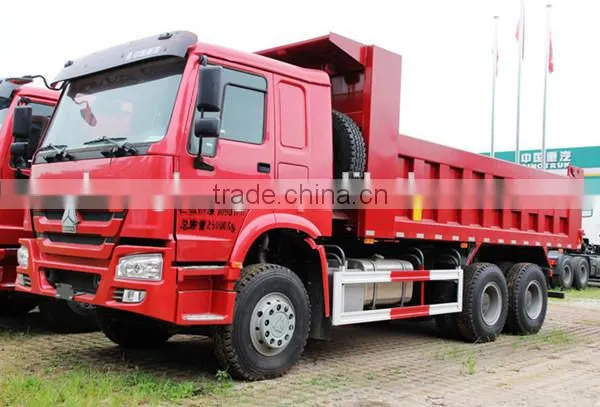

HOWO dump truck ZZ3257N3847A 6x4 336hp truck for sale
1,PRODUCT FEATURRE:
HOWO HEAVY DUTY TRUCK TECHNOLOGY PROMOTION
Adopting the most nowadays internatinally advanced engine and transmission assembly technique route,
i.e. high torque common trail engine of broad speed belt+manual and automatic transmission
(SMART SHIFT) + small speed ratio driving bridge. This brings chinese trucks into epochal automatic
shift stage and makes the fuel consumption 3-5% lower than that of manual shift; howo dump truck
1. Oil Saving---two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve
improvement, entire car optimizing assembly, AMT automatic transmission case, empty / full load switch,
the latest streamline driving cab reducing wind resistance effectively, standard tractor reducing self weight
by 200--500kg, and etc.
2.Safety---disc brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
Main parameter of HOWO 6x4 336hp dump truck
ZZ3257N3847A/N0WA | |
CABIN | |
Model |
HW76, 1 sleeper, with A/C |
Type |
Lengthen cabin, adjustable steering wheel, VDO panel, control module, safe-belt with 2 locks, outer sun shade. |
ENGINE | |
Model |
WD615.69,336hp, EURO 2 |
Type |
Diesel, 6-cylinder in-line, water cooling, 4-stroke, 2 valves, turbo-charging and inter-cooling, postposition supercharger. |
Rated power (hp(kW)/rpm) |
336(247)/2200 |
Maximum torque (N.m/rpm) |
1350/1100~1600 |
Displacement (L) |
9.726 |
CHASSIS | |
Clutch |
Ø430B single plate dry diaphragm, hydraulically with air assist. |
Transmission |
SINOTRUK HW15710, 10 speeds, main and auxiliary box structure, the main box double counter shaft planetary reducer, with HW50 power takeoff. |
Front Axle |
HF9 drum, rated loading 9T. |
Rear Axle |
HC16 double reduction (central reduction and hub reduction), ratio: 5.73 |
Front/Rear suspension |
Semi-elliptic leaf springs + shock absorber + stabilizer. |
Steering system |
ZF8098 steering gear box, ZF power steering pump, system pressure: 18MPa. |
Brake system |
Driving brake: dual circuit compress air brake; Parking brake: spring energy, compressed air operating at rear wheel; Auxiliary brake: EVB + engine exhaust. |
Hydraulic lifting |
Ventral lifting |
Fuel tank capacity (L) |
400 |
Tyres |
12.00R20, Radial tyres |
PARAMETER | |
Load weight (kg) |
12600 |
Dead weight (kg) |
12270/8710 |
Gross vehicle weight (kg) |
25000 |
Overall size L*W*H (mm) |
8545*2496*3170 |
Chassis size L*W*H (mm) |
7575*2496*2985 |
Cargo body size L*W*H (mm) |
5600*2300*1400 |
Floor/Side steel thickness (mm) |
8/6 |
Cargo box volume (m³) |
18 |
Axle base |
3825+1350 |
Front/Rear overhang |
1500/(1870/900) |
Front/Rear wheel track |
2022/1850 |
Min. ground clearance (mm) |
314 |
Approach/Departure angle (°) |
19/(23/50) |
Max. driving speed (km/h) |
75 |
Max. climbing capacity (%) |
≥50 |
Min. turning circle (m) |
17 |
ELECTRICS | |
Operating voltage |
24V, CAN bus control |
Alternator |
1540W |
Starter |
7.5KW |
Batteries |
12V, 165Ah, 2 PCS. |
