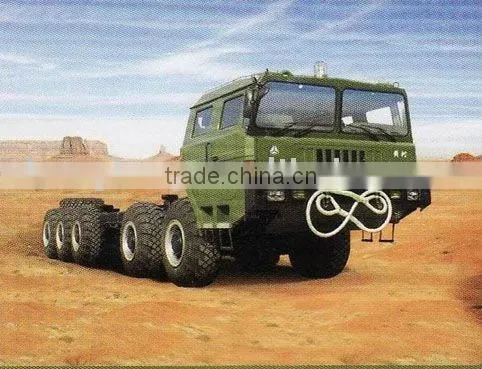

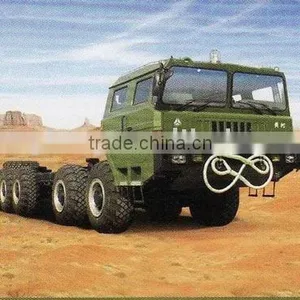

Huang He10*10 All-wheel drive truck

huanghe 10x10

                                               JN5560A         JN5560B

Dimension (length*width*height)

14860x3080x3050      15175x3080x3050

Max.Gross weight(kg)

55000

Front overhang/rear overhang

28/35                 28/24

Max.speed(km/h)

85

Max.gradability

40

Engine

Model

BF12L513C

Rated power(Kw/r/min)

406/2300

Max.torque(N.m/r/min)

2040/1550

Sub actuator

ZF VG2000/300(0.89/1.536)

ZF VG2000/300(speed ratio 0.89/1.536)

Gearbox

5HP900electric automatic transmission

Driving axle

the first,second,&fifth axle are steering drive axles.the third and forth axle are tandem driveaxles.speed ratio 8.23

Steering

ZF421dual circle hydraulic power assisted synchronous steering with emergency steering gear

Tyre

1500x600-635low pressure adjustable tire,strong alluminum alloy rim

Fule tank(L)

700
