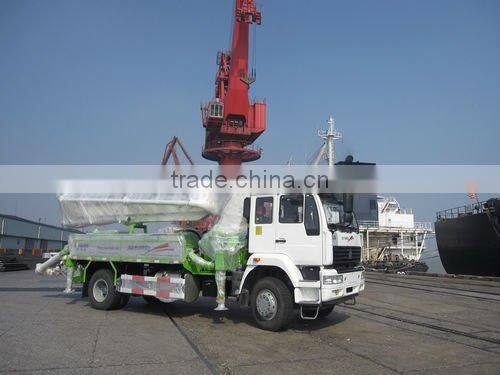

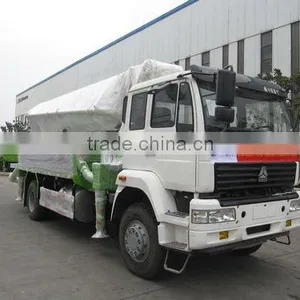

HOWO 22M Truck-Mounted Concrete Pump

Specifications

HOWO 22M Truck-Mounted Concrete Pump with high quality. We can supply new truck-mounted concrete pumps from 22 m to 56 m.

HOWO 22M Truck-Mounted Concrete Pump



Product Model52M Truck-mounted Concre
40M Truck-mounted Concre
37M Truck-mounted Concre
37M Truck-mounted Concre
40M Truck-mounted Concre
44M Truck-mounted Concre
46M Truck-mounted Concre
47M Truck-mounted Concre
49M Truck-mounted Concre
50M Truck-mounted Concre
42M Truck-mounted Concre
22M Truck-mounted Concre

Model
ZLJ5281THB125-37
ZLJ5292/3THB125-37
ZLJ5294/5THB125-37

Pumping

System
Max. Theo. Outputm3/h
120
120
120

Max. Output pressure of the concreteMpa
6.5
6.5
6.5

Rated working pressureMpa
32
32
32

Min-1 Pumping frequency
22
22
22

Hopper capacityL
550
550
550

Feeding heightmm
1540
1540
1540

Mode of the hydraulic system
Closed/open
Closed/open
Closed/open

Mode of the distribution valve
S valve
S valve
S valve

Cylinder diameter× Strokemm
130× 2100
130× 2100
130× 2100

Cylinder diameter× Strokemm
230× 2100
230× 2100
230× 2100

Cooling of the hydraulic oil
Air-cooled
Air-cooled
Air-cooled

Recommended collapsed slumpcm
12~23
12~23
12~23

Max. Dimension of the aggregatesmm
40
40
40

Booms
Max. Pumping heightm
36.6
36.6
36.6

Max. Pumping radiusm
32.6
32.6
32.6

Max. Pumping depthm
24.9
24.9
24.9

Slewing angle
365°
365°
365°

Number of the booms section
4
4
4

Length of each boommm
8650/7860/7980/8080
8650/7860/7980/8080
8650/7860/7980/8080

Angle of unfolding the booms
100° /180° /180° /270°
100° /180° /180° /270°
100° /180° /180° /270°

Diameter of the delivery pipemm
125
125
125

Length of the end hosemm
3000
3000
3000

Chassis and whole vehicle
Chassis model
CYZ51Q
Actros 3340/3341
FM 400/JHW5330F49B4E

Drive mode
6× 4
6× 4
6× 4

Wheelbasemm
4595+1310
4500+1350
4900+1370

Wheel gauge (front/rear)mm
2065/1850
2034/1804
2019/1834

Model of the tyre
295/80R22.5
315/80R22.5
12.00R20

Model of the engine
6WF1A
OM501LA
D13

Max. Power of the enginekW/(r/min)
265/1800
290/1800 or 300/1800
294/1400~1800

Max. Torque of the engineN. M/(r/min)
1422/1100
1850/1080 or 2000/1080
2000/1050~1400

Displacement of the enginecc
14256
11946
12800

Type of the fuel
Diesel
Diesel
Diesel

Capacity of the fuel tankL
380 aluminum
400
410 aluminum

Standard of the exhaust emission
EUROIII
EUROII/ EUROIII
EUROIII

Max. Speed of the whole vehiclekm/h
85
85
≥ 80

Mass of the whole vehiclekg
28190
28830
28850

Overall dimension of the whole vehicle (length× Width× Height)mm
11650× 2500× 3870
11690× 2500× 3800
11910× 2500× 3845
