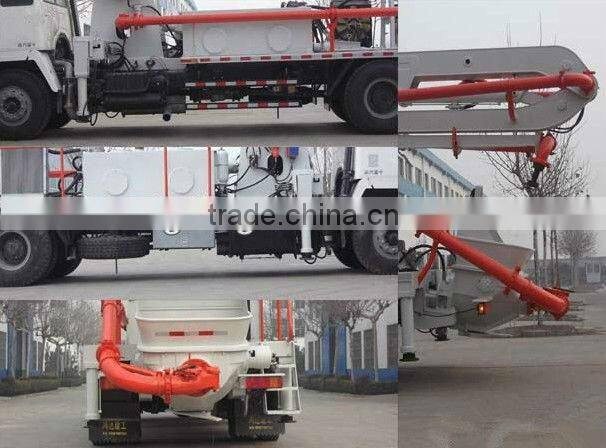

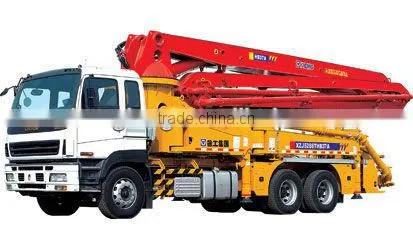

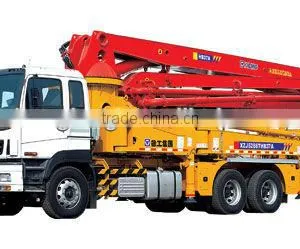

XCMG Concrete pump truck HB37A
Concrete Pump
No. 2 manufacture base covers 270,000 m2, and is specialized in manufacturing crawler crane and concrete pump.
Parameter of concrete pump truck
No. | Item | Unit | Parameter |
1 | Max. speed | km | 90 |
2 | Min. turning diameter | m | 18.4 |
3 | Brake distance | m | 7 |
4 | Approach angle | ° | 31 |
5 | Departure angle | ° | 12 |
6 | Chassis model |
| CXZ51Q ( Japan ) |
7 | Total weight | kg | 28150 |
8 | 1st axle load | kg | 6780 |
9 | 2nd, 3rd axle load | kg | 21220 |
10 | Engine model |
| 6WF1 |
11 | Max. Engine power | kW | 287 |
12 | Max. Engine torque | N.m | 1862 |
13 | Max. grade-ability | % | 38 |
14 | Fuel consumption limit | L/100km | 34 |
15 | Outline dimensions (Length´ Width ´Height) | mm | 11990´2490´3900 |
Technical Data for Pumping Operation
No. | Item | Unit | Parameter |
1 | Theoretical output | m3/h | 138/90 |
2 | Max. delivery pressure | MPa | 8.7/13 |
3 | Reach height | m | 37.4 |
4 | Reach depth | m | 23.7 |
5 | Front outrigger transverse span | mm | 7280 |
6 | Rear outrigger transverse span | mm | 6600 |
7 | Outrigger longitudinal span | mm | 6860 |
8 | Delivery pipe diameter | mm | 125 |
9 | Remote control distance | m | 100 |
10 | Placing boom slewing range | ° | 370 |
