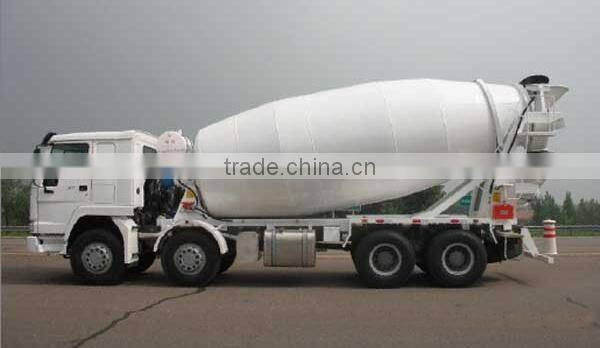

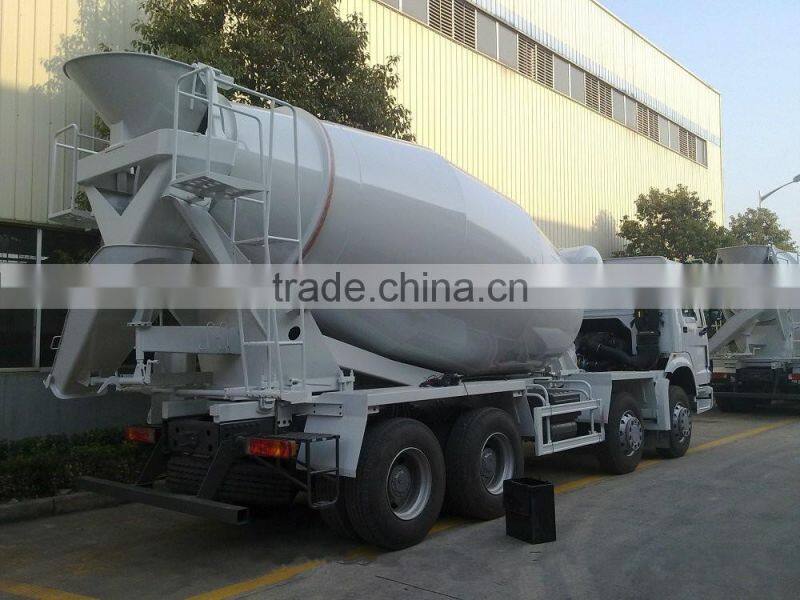

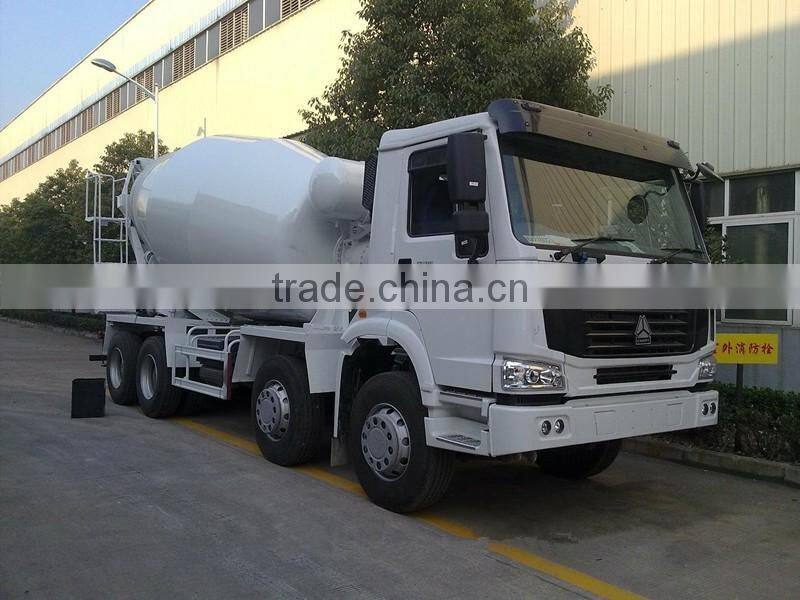

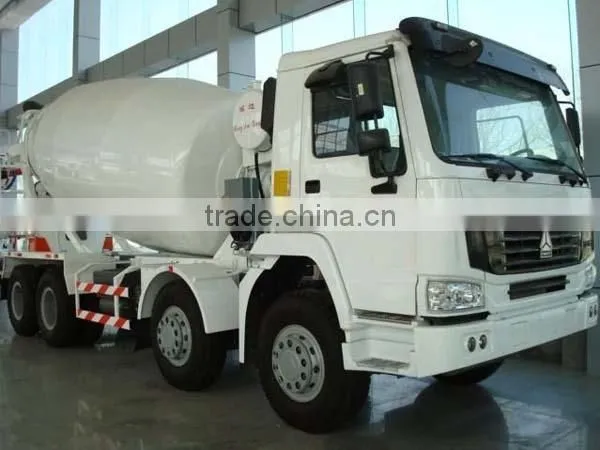

SINOTRUK HOWO 8x4 Truck for Cement (ZZ1317M3261W)

VEHICLE SECIFICATIONS

DESCRIPTION

Model

ZZ1317N3261W

Type of vehicle

Bulk cement truck/Concrete mixer truck

Engine Power(Hp)

290hp

Traction

8x4

The Total Mass(kg)

31000

Curb Weight(kg)

14600

Driving Position

LHD/RHD

Max Driving Speed(Km /h)

75

Chassis & Add Components

Size(LxHxW)

9660x2496x3025

Wheelbase(mm)

3200

Front/ Rear Suspension

1500/(2300/1810)

Color

White

Green

Yellow

White

Black

Other

Engine

Model

WD615.87

Power

213Kw(290hp)

Torque(Nm/rpm)

1160/1100-1600

Fuel Type

Diesel

Emission Standard

Euro 2

Clutch & Gear Box System

Clutch

Sinotruk 430 Single Plate Dry Diaphragm

Transmission

SINOTRUK HW15710,10 series

AXLES

Producer

SINOTRUK

Front Axle Model

HF9 drum Type, Load 9ton

Rear Axle Model

HC16 Double Reduction

ELECTRIC SYSTEM

Batteries Quantity / Voltage

2x12V,165Ah

Alternator Model / Voltage

1540Kw

BRAKE SYSTEM

Front Wheel

Disc

Rear Wheel

Shoe

ABS

No

The above mentioned data is for your reference only. The detailed specification will be subject to our final confirmation

WHEEL & TYRES

Type

11.00-20/11.00R20/12.00-20/12.00R20

Material

Nylon/Radial/Tubeless

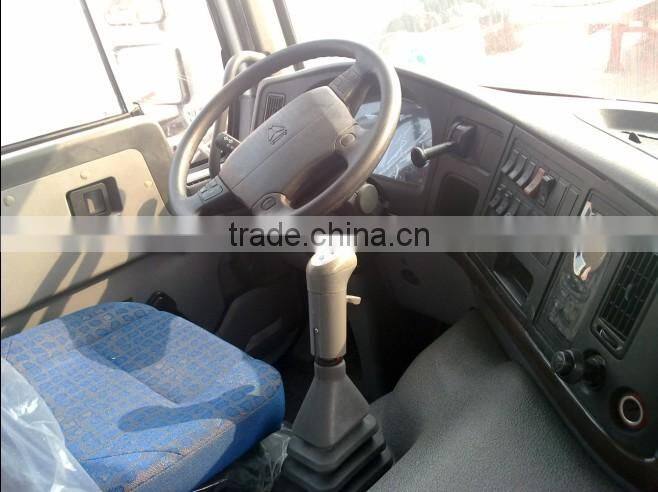

CABIN

Model

HW76

Type

Lengthen cabin, single sleeper, adjustable steering wheel
