Specifications

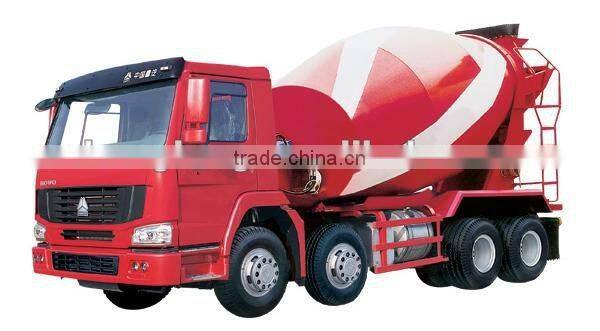

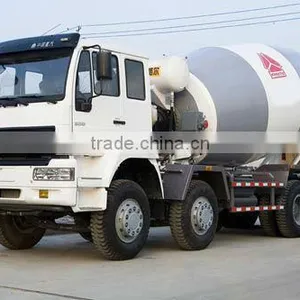

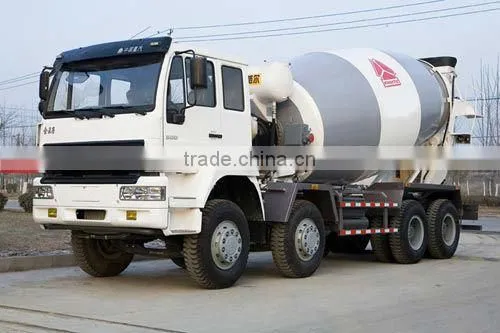

31t 12m3 concrete Mixer Truck1.Max speed(km/h):75
2.Effective volume:12;14
3.Chassis size:9660x2496x3025
SINOTRUK HOWO 8x4 336hp Mixer Truck
Main mixer truck model | ZZ1317N3261W | ||
Cabin | Model | HW76 | |
Engine | Model | WD615.69 | |
| Rated power (kW/rpm) | 247/2200 | |
| Max.torque (Nm/rpm) | 1350/1300-1600 | |
| Discharge L | 9.726 | |
Suspension |
| Front&rear suspension are semi-elliptic leaf springs+shock absorber+stabilizer | |
Steering system |
| ZF8098 steering gear box,ZF power steering pump,system pressure:18MPa | |
Tyre |
| 11.00-20;(12.00-20 available) | |
Fuel tank capacity | L | 300 | |
Payload | kg | 14600/10800 | |
Gross vehicle weight | kg | 31000 | |
Rated loading weight | kg | 16270/20070 | |
Overall size | mm | 10150*2496*3900 | |
Chassis size | mm | 9660*2496*3025 | |
Axle base | mm | 1800+3200+1350 | |
Front/rear suspension | mm | 1500/(2300/1810) | |
Wheelbase(front/rear) | mm | 2022/1850 | |
Min.ground clearance | mm | 314 | |
Max.speed | km/h | 75 | |
Min.turning circle | m | 23.7 | |
Elective volume | m^3 | 12;14 | |
Remarks |
| WD615.62 available | |
1. Multiple security and reliability represent it's leading position in heay-duty truck industry in China.
2. The tank body uses the latest design concept, the whole body adopts the lightweight structure and streamlined design, and is made of pollution, and high safety.
3. Equipped with Hayward hydraulic systerm it is the latest product with the features of value for money and security and reliability in recent times.
If you want to know more , welcome to contact us:
/
Phone: 86 15165120181
alibaba: cn209754450
