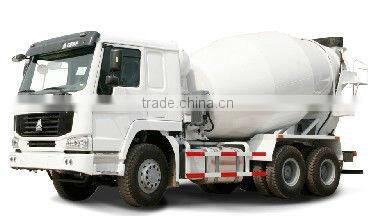

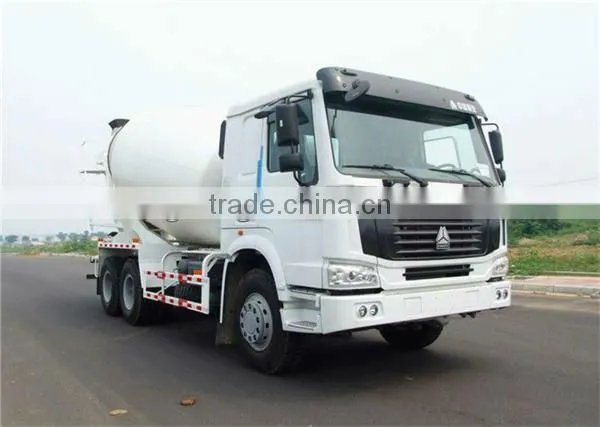

HOWO Contrete Mixer Truck EURO2

Name: HOWO Contrete Mixer Truck EURO2
Brand: HOWO
SKU: 141682968
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

HOWO

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

china port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name HOWO

Model Number ZZ1257M327W

Weight 25000

Dimension(L*W*H) 8204x2496x3850

Specifications

HOWO HW79 Mixer Truck EURO3
1.High load capacity, low fuel consumption.
2.Advanced technology.
3.Safe and reliable

HOWO Contrete Mixer Truck EURO2

Main mixer truck model		ZZ1257M3247W

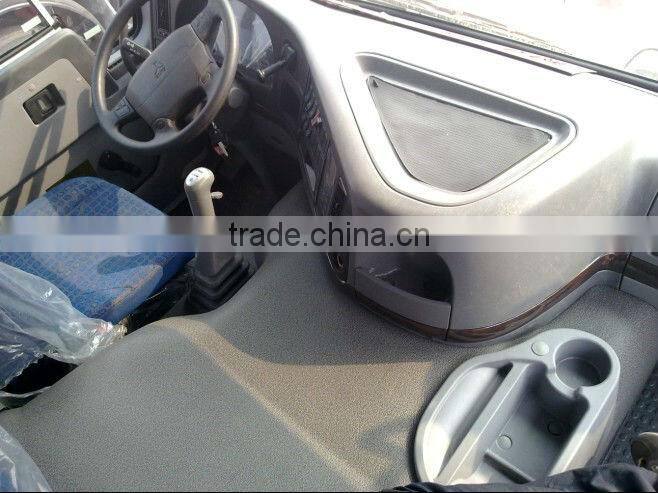

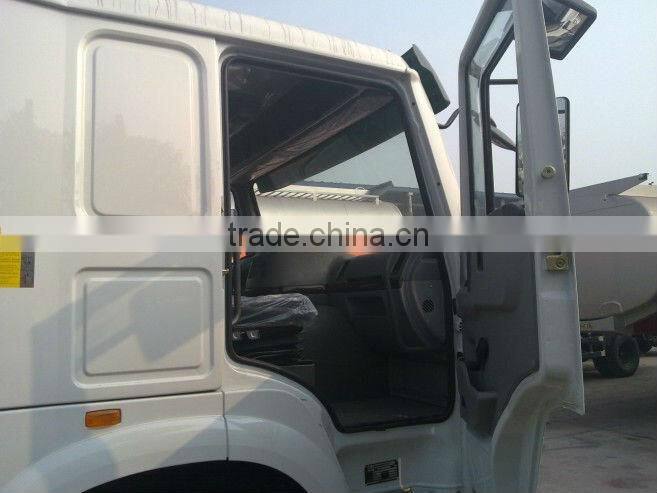

Cabin	Model	HW76

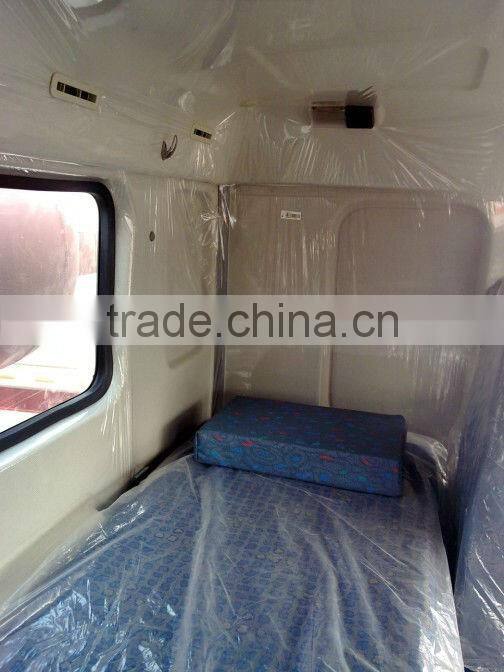

	Type	Lengthen cabin, single sleeper,
Engine	Model	WD615.87
	Rated power (kW/rpm)	213/2200
	Max.torque (Nm/rpm)	1160/1100-1600
	Discharge L	9.726
	Type	6 cylinder inline, turbo charger inter cooled,2 valves, postposition supercharger.
Transmission		SINOTRUK HW15710 (10 speeds)
Front axle		HF9 drum type, rated loading 9T
Rear driving axle		HC16 double reduction ,ration:5.73
Steering system		ZF8098 steering gear box, system pressure:18MPa
Electric system		CAN bus control,voltage:24V:alternator:1540W;starter:7.5KW;battery:12V/165Ah,2 pcs
Tyre		11.00-20;(12.00-20 available)
Fuel tank capacity (L)		400
Payload (kg)		12800/8650
Gross vehicle weight (kg)		25000
Rated loading weight (kg)		12070/16220
Overall size (mm)		8204x2496x3850
Chassis size (mm)		7350x2496x2958
Axle base (mm)		3225+1350
Front/rear suspension (mm)		1500/(2129/1275)
Wheelbase(front/rear) (mm)		2022/1850
Min.ground clearance (mm)		314
Approach/departure angle (°)		16(32/36)
Max.speed (km/h)		75
Max.climbing capacity (%)		≥50
Min.turning circle (m)		15
Elective volume (m^3)		6;7;8
Remarks		WD615.62 available
