Specifications
9m3 Cement tanker1.chassis: howo,golden prince
2.volume: 6,7,8,9,10m3

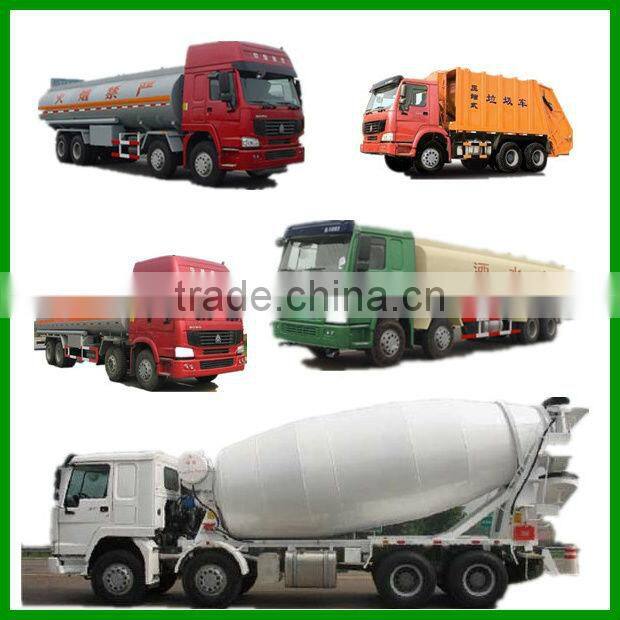

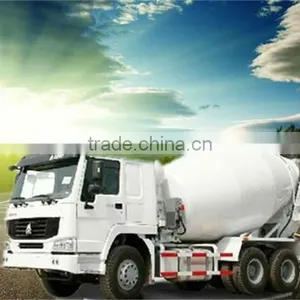

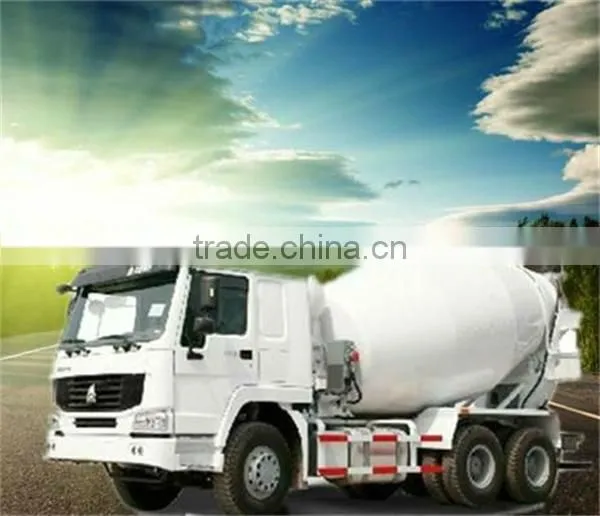

9m3 Howo rear double axle concrete mixer trucks
Main mixer truck model | ZZ1257N3641W |
Chassis | |
Cabin | HW76 Lengthen cabin, single sleeper |
Engine | WD615.69 336hp |
Transmission | HW15710 (10 series) |
Front axle | HF9 drum, rated loading 9T |
Rear axle | HC16 double reduction; ration:5.73 |
Suspension | semi-elliptic leaf springs+ shock absorber+ stabilizer |
Steering system | ZF8098 steering gear box |
Tyre | 11.00-20;(12.00-20 available) |
Chassis size (mm) | 7775x2496x2958 |
Axle base (mm) | 3625+1350 |
Front/rear suspension (mm) | 1500/(2240/1300) |
Wheelbase(front/rear) (mm) | 2022/1850 |
Fuel tank capacity (L) | 400 |
Main specification | |
Gross vehicle weight (kg) | 25000 |
Rated loading weight (kg) | 11770/16070 |
Payload | 13100/8800 |
Overall size (mm) | 8715x2496x3850 |
Payload (kg) | 12800/8650 |
Work performance | |
Min.ground clearance (mm) | 314 |
Approach/departure angle (°) | 16(26/35) |
Max.speed (km/h) | 75 |
Max.climbing capacity (%) | ≥50 |
Min.turning circle (m) | 16,3 |
Elective volume (m^3) | 9 |
We can provide the mixer chassis or cement tank or the truck.
expect to cooperate with you.
Thanks for your time.
Skype: xiuyun.li1
Tel: 86-15165082845
