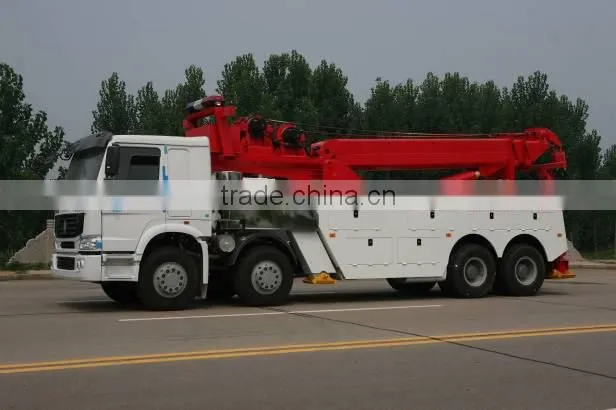

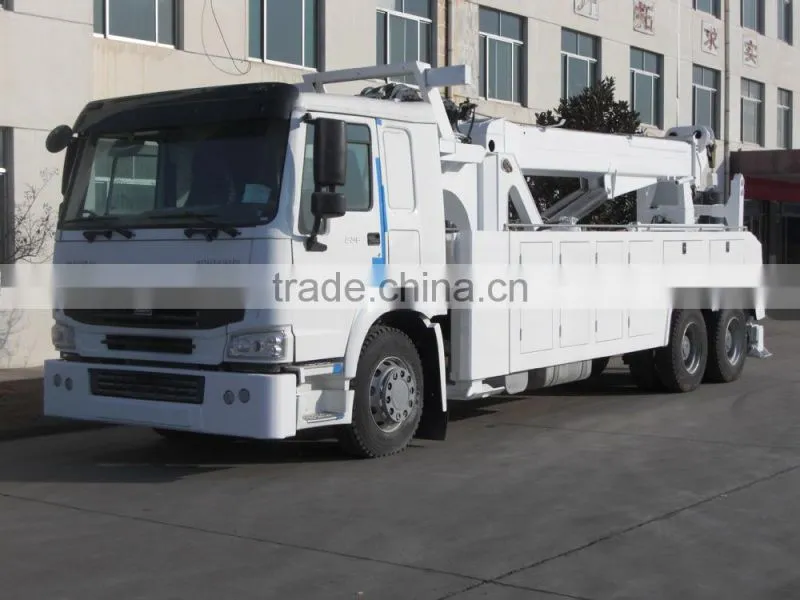

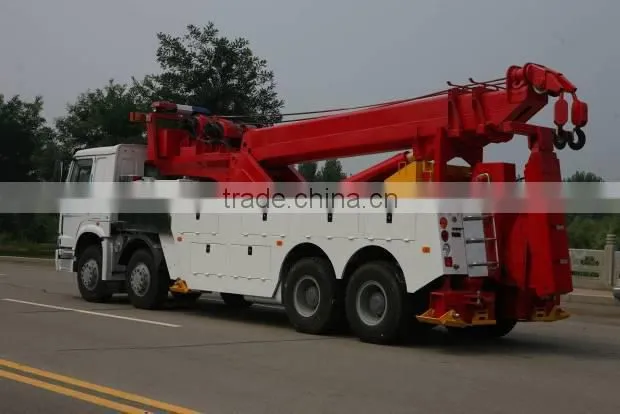

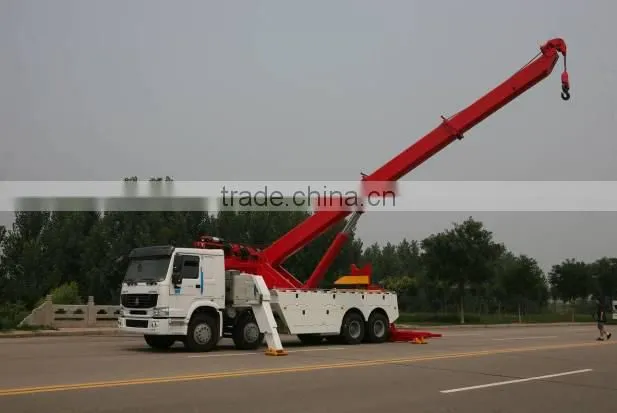

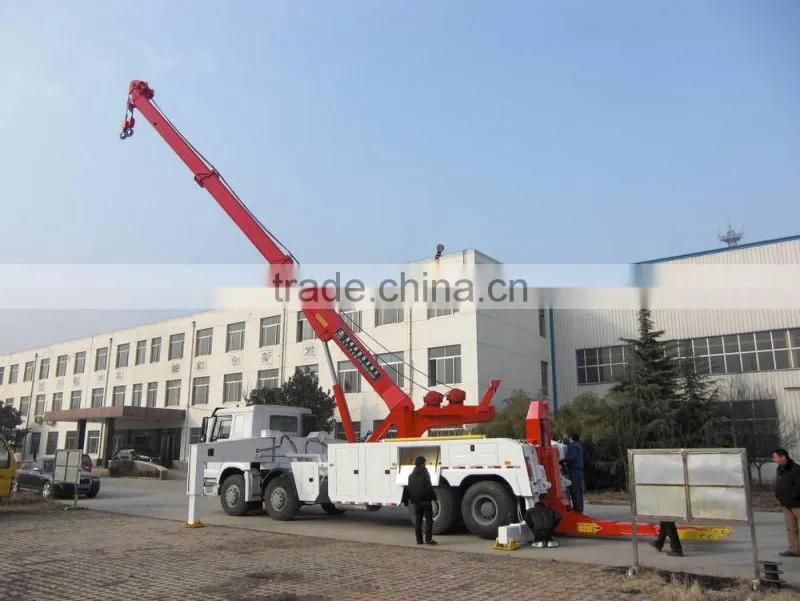

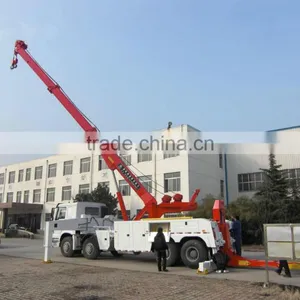

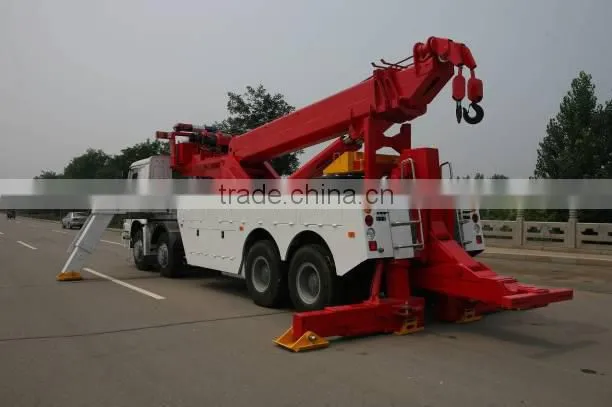

8X4 WRECKER WITH RELIABLE QUALITY

Overall Dimensions

10,375×2,495×3,640 mm

Operating Weight

23,710 Kg

Boom

Boom Lifting Capacity

20,000 Kg

Boom Extension Range

3,510 mm

Boom Lifting Height

9,500 mm

Rotary Angle of Boom

360°

Boom Elevation Angle

50°

Winch Rated Pulling Force

2 Winches; 100KN each;

Winch Rope

Length 40m; Diameter 18mm

Underlift

Underlift Lift & Draw Capacity

50,000 Kg

Maximum Lift Capacity of Underlift

16,000 Kg

Rated Lift Capacity of Underlift

6,670 Kg

Lift Capacity of Underlift at Full Extension

4,840 Kg

Underlift Extension Range

1,640 mm

Underlift Elevation

-9°~93°

Outrigger

Outriggers Capacity

4×147 KN

Span of Front and Rear Outriggers

6300 mm

Chassis Model

HOWO ZZ1257M5841W with air condition.

Drive Type

6X4

Maximum Speed

102KPH

Maximum Gradeability

32%

Tire

12.00-20

Battery

2*12V

Mean Fuel Consumption per 100KM at 50KPH

32L

Fuel Tank Volume

400L

Wheel Base

5,600mm+1,350mm

Engine

WD615.87

290HP at 2,200rpm; 1,160N.m at 1,300~1,600rpm 6-cylinder in Line; Water Cooling Direct Injection diesel engine; Turbo charged & inter-cooler; Euro II;

Clutch

430mm,Single Dry Plate, Pressurized with Diaphragm spring, cable operating with pneumatic booster

Gearbox

RT-11509C

Single Lever Shifting; Pneumatic Control Range Gears

Twin Countershaft; 9 Forwards (incl. Crawler) & 1 Reverse
