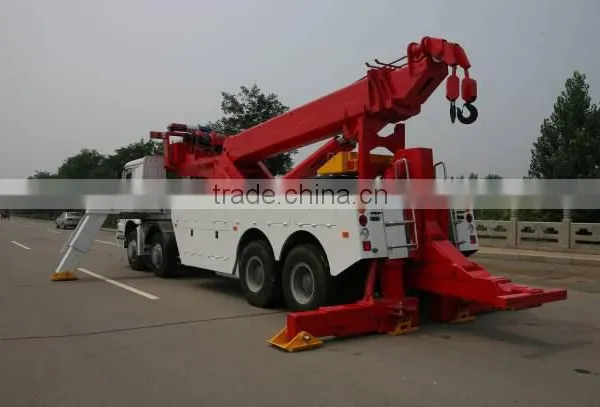

WRECKER WITH RELIABLE QUALITY

Name: WRECKER WITH RELIABLE QUALITY
Brand: SINOTRUK
SKU: 141666188
Availability: InStock

SINOTRUK Qingdao Heavy Industry Co., Ltd.

US$ 70,000 - 90,000 MOQ: 1 Unit

Key Specifications

Fuel Type:

Diesel

Emission Standard:

Euro 2

Condition:

New

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA MAIN PORT

Delivery Detail:

Delivery time depends on order quantity.

Fuel Type Diesel

Emission Standard Euro 2

Condition New

Transmission Type Manual

Place of Origin Shandong, China

Brand Name SINOTRUK

Specifications

Top class in the fied of special truck, professional manufacturer.

Overall Dimensions		10,375×2,495×3,640 mm
Operating Weight		23,710 Kg
Boom	Boom Lifting Capacity	20,000 Kg
	Boom Extension Range	3,510 mm
	Boom Lifting Height	9,500 mm
	Rotary Angle of Boom	360°
	Boom Elevation Angle	50°
	Winch Rated Pulling Force	2 Winches; 100KN each;
	Winch Rope	Length 40m; Diameter 18mm
Underlift	Underlift Lift & Draw Capacity	50,000 Kg
	Maximum Lift Capacity of Underlift	16,000 Kg
	Rated Lift Capacity of Underlift	6,670 Kg
	Lift Capacity of Underlift at Full Extension	4,840 Kg
	Underlift Extension Range	1,640 mm
	Underlift Elevation	-9°~93°
Outrigger	Outriggers Capacity	4×147 KN
Outrigger	Span of Front and Rear Outriggers	6300 mm
Chassis Model		HOWO ZZ1257M5841W with air condition.
Drive Type		6X4
Maximum Speed		102KPH
Maximum Gradeability		32%
Tire		12.00-20
Battery		2*12V
Mean Fuel Consumption per 100KM at 50KPH		32L
Fuel Tank Volume		400L
Wheel Base		5,600mm+1,350mm
Engine	WD615.87	290HP at 2,200rpm; 1,160N.m at 1,300~1,600rpm 6-cylinder in Line; Water Cooling Direct Injection diesel engine; Turbo charged & inter-cooler; Euro II;
Clutch		430mm,Single Dry Plate, Pressurized with Diaphragm spring, cable operating with pneumatic booster
Gearbox	RT-11509C	Single Lever Shifting; Pneumatic Control Range Gears Twin Countershaft; 9 Forwards (incl. Crawler) & 1 Reverse
