High Quality 35 Ton Curtain Box Trailer In Truck Semi Trailer

Trailer Model

3 Axle Curtain type Semi Trailer

Cargo Inner Dimension(Lx W x H)(mm)

can be choose

Whole Dimension(Lx W x H)(mm)

13000*2550*3700

Thickness of Cargo(mm)

Bottom 3mm

Remark

The side cover can be move

Axle Brand

FUWA 13TON Axle or BPW

Axle Number

Three

Loading Capacity(kg)

40000kg

Wheelbase(mm)

6750+1310+1310

Suspension system

Common Mechanical suspension

Steel Spring

leaf spring suspension

The material of Main beam

The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.

Tire Type

12R22.5 tubeless tires

Tire quantity

12units(Spare wheel can be choose)

Traction Pin

50mm or 90mm

Spare Wheel Bracket

2 piece

Tool Box

1 Standard

Landing Gear

28ton(JOST Can be choose

Brake system

WABCO Brand

ABS

Can be choose

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Painting

Color by customer’s requirement

If customer have special requirements, we will try our best

to reach your request, Thanks`

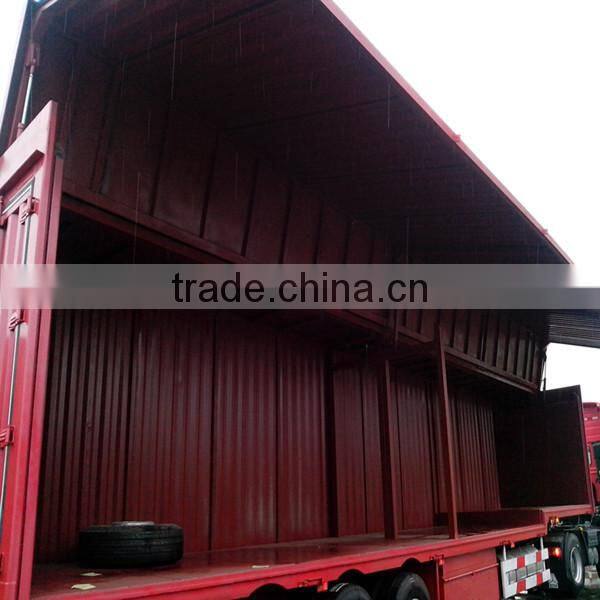

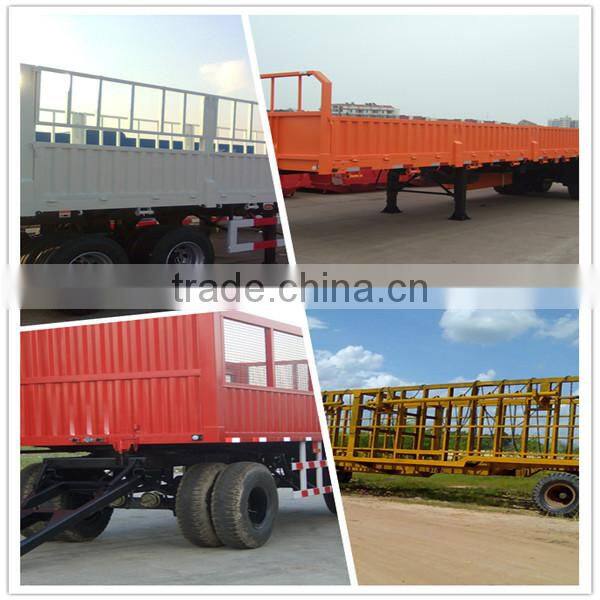

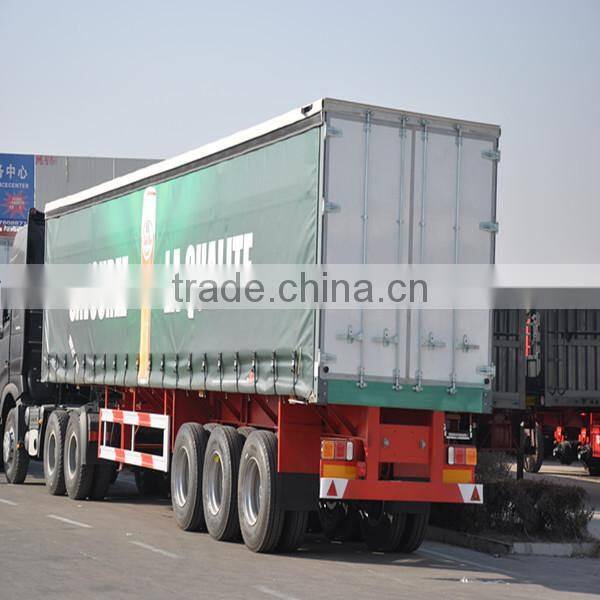

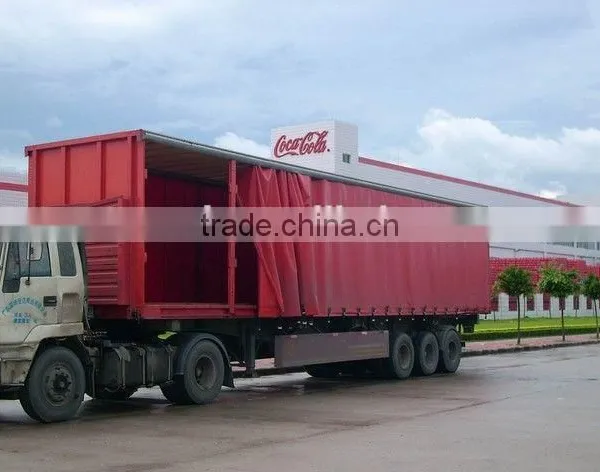

Semi Trailer detail pictures as below:
