Home > Products > Semi-trailer > SINOTRUK Flatbed Semi Trailer

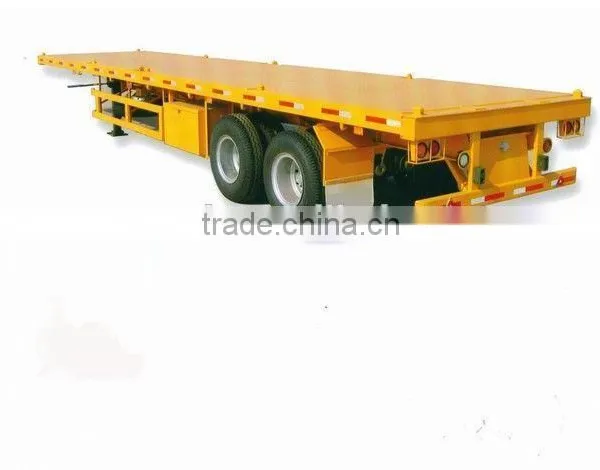

SINOTRUK Flatbed Semi Trailer
- Any Chinese Port
- T/T L/C D/P D/A
You May Like
Product Details
| Max Payload | 20000kg | Size | 7200*2500*1500 | |
| Brand Name | SINOTRUK |
Product Description
Specifications
1, Genuine spare parts;2,We are factory, not sale company;
3, Have 60 years history;
4, Quality products and best services
Factory Outlook
Certificate:
Production line:
Products Specifications:
DIMENSIONS |
| ||||||||||||
Tare weight | 5500kg | Payload | 20000 kg |
| |||||||||
Overall length | 7200mm | Overall width | 2500mm | Overall height | 1500mm | ||||||||
SPECIFICATION | |||||||||||||
Chassis | Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 8mm;bottom flange16mm,width 140mm | ||||||||||||
Axle | Number | 2 | Brand | Fuwa | Capacity | 13T | |||||||
Suspension | Mechanical suspension american type |
| |||||||||||
Leaf spring | Leaf spring 90x16mm 4 pcs |
| |||||||||||
Floor | 3mm .checkered plate |
| |||||||||||
Tire | 12R22.5 8pcs |
| |||||||||||
Wheel rim | 9.0 8 pcs |
| |||||||||||
Kingpin | 2’’ bolt-in king pin |
| |||||||||||
Landing gear | brand two-speed,manual operating ,heavy duty landing gear 28T |
| |||||||||||
Twist lock | 4 no.of ISO twist lock for 1x20ft container |
| |||||||||||
Vehicular applications | Container (20ft.) transport |
| |||||||||||
Drawing | Including |
| |||||||||||
Braking system | RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .24V |
| |||||||||||
Paiting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| |||||||||||
Accessories | One standard tool box | ||||||||||||
