IS615 Radius Flush Grid Plastic Modular Conveyor Belt
US$ 110 - 125
MOQ: 5 Square Meters
Key Specifications
Get Latest Price
Condition:
New, new
Type:
Other, radius belt
Material:
Other, POM/PP/PE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
IS615 Radius Flush Grid With Hold-down Edge Plastic Conveyor BeltUS$ 100 - 120MOQ: 5 Square Meters -
IS615 Radius Flush Grid With Pop-up Flights Plastic Conveyor BeltUS$ 125 - 135MOQ: 5 Square Meters
-
2400A Radius Flush Grid Plastic Conveyor BeltUS$ 100 - 130MOQ: 5 Square Meters
-
2400B Flush Grid Modular Conveyor Radius BeltUS$ 110 - 150MOQ: 5 Square Meters
-
2400C Flush Grid With Hold-Down Edge Radius Plastic Modular BeltUS$ 110 - 140MOQ: 5 Square Meters
Type
Other, radius belt
Material
Other, POM/PP/PE
Structure
Belt Conveyor
Place of Origin
Jiangsu, China
Brand Name
Tuoxin
Model Number
IS615 Modular Conveyor Belt
Certification
ISO9001
IS615 Radius Flush Grid Plastic Modular Conveyor Belt
- Belt pitch: 38.1mm
- Backflex radius: 50mm
- Open area: 75%
- Belt Material: POM/PP/PE
- Assembling method: connected with rods
- Belt width less than 610mm, Inside turning radius:Rmin=2.2*W
- Belt width over 610mm, Inside turning radius:Rmin=2.5*W
The radius belts offer a solution for almost any curved applications. As a standard, the belts are supplied in POM for beverage and PP for direct food contract.
Engineering data:
| Belt type | Material | Temperature range | Working load(max.) | Weight | Backflex radius(min.) | ||
| dry | wet | N/m(Straight) | N(Curved) | Kg/m² | mm | ||
| IS615 | POM | 5 to 80 | 5 to 65 | 21000 | 1700 | 8.7 | 50 |
| PP | 5 to 90 | 5 to 90 | 14000 | 1100 | 5.8 | ||
| PE | -40 to +65 | -40 to +65 | 11000 | 800 | 6.0 | ||

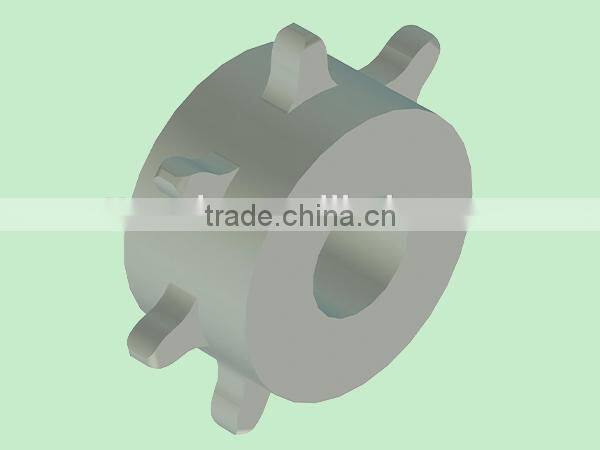

Related sprockets:
Other products:
Nantong Tuoxin Conveyor Equipment Co, Ltd
Specialized in:
1.Plastic Tabletop Chains
2.Modular Conveyor Belt
3.Conveyor Components
Price:
We have our own factory, so the price is competitive and reasonable.
Quality:
The competitive price is based on the good quality. Our products have been exported to many countries including India, Iran, Australia, Newzealand, UAE and so on. We have got a good reputation in our colleagues and clients.
Applications:
Certificate:
