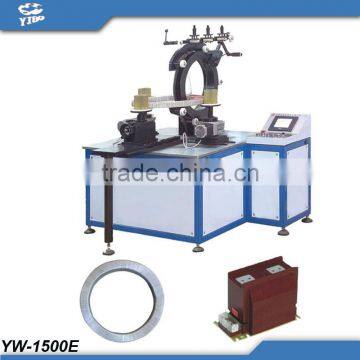

Professional factory large-sized copper winding machine for curent transformer YW-1500E
YW-1500E large-sized CNC toroidal copper winding machine is the new generation of circular winding equipment specially designed for solving the problem of large manual winding labor intensity, low working efficiency and incorrect turns of large-sized circular coils.
Main Technical Parameters Copper winding machine
Item |
Technical Parameters |
Model |
YW-1500E |
Diameter range of windable electromagnetic wire |
Φ1.0-3.5mm |
Min inner diameter of winded coils |
Φ 200mm |
Max outer diameter of winded coils |
Φ 1500mm |
Max height of winded coils |
250mm |
Max winding rotation speed |
100rpm |
Machine tool power |
2.2KW |
Max outline size of machine tool |
1300*1000*1500mm |
Features
- PLC system, it has the machine tool wire storage automatic computation, automatic counting,automatic stop, stop memory and so on, and simplifies the operation greatly.
- Multi-wire winding mechanism,it realize the dual-wire or multi-wire multi-layer winding.
- High precision and wide application range.
- Low maintenance cost, energy saving and low noise.
- It is the domestic most advanced large-sized circular winding equipment.
Steps of Quality Control
- Strictly control the purchase standard of raw materials.
- With high precision equipments and rich experience workers to process components, make each process up to standard.
- Assembly process, recheck the quality of the components, the machine appearance etc.
- Before shipment, test all operating procedures by winding the core to ensure the machine work normally.
Test & Debug The Machine
Packaging:
With plastic film and wooden case.
- The only manufacturer who can supply one-stop complete solution service for electric industry of resin products,we professional manufacture APG machine ,APG molds,casting molds,Toroidal winding machine,laser marking machine for whom produce CT,PT,insulators,contact box,etc,with best factory price and fast shipment.
- Professional rich experience engineers and research team, our engineers have more than 20 years experience who serviced many years in ABB, many patented products are owned by us.
- Have a line and lab special for producing CT and PT.we can winding samples and test in our lab.
- Professional Technique training, our engineer is available to train technique overseas or you send engineers learn technique from our factory.
- Full range of service.
- 24 hours service, email or call contact.
- Offer technology support before and after the sale.
- Provide high quality machines.
- Provide spare parts.
- Provide after-sales service.
Frequently Asked Questions Toroidal winding machine
Q:What’s information do you need before quote?
A:Max outer core diameter(OD),Min inner core diameter(ID),Core height,Wire diameter(All diameters are after winding) and photo or drawing.
Q:What is your delivery time?
A:Within 20 days after receipt of down payment.
Q:What is your payment terms?
A:Telegraphic transfer (T/T),Letter of credit(L/C) etc.
Q:What is the shipping port?
A:Shanghai, Shenzhen, Ningbo etc
Q:What is the warranty period of the CNC winding machine?
A:One year for the machine, supply spare parts lifelong.
Q:How about your experience in this field?
A:We have more than 20 years experience in this field.
Q:Which countries or districts you products are exported to ?
A:Our products have been exported to America(RIDZ, ABB),Germany,Ukraine,
Italy,Macedonia,Colombia,Argentina,Brazil,Bangladesh,Malaysia,Vietnam,Indonesia,Korea,Taiwan,Thailand,Iran etc.
