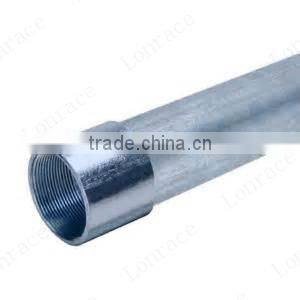

Product description |
|

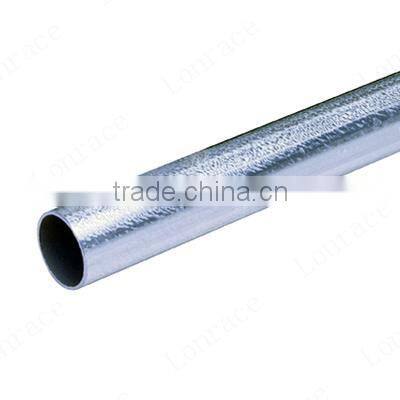

The electrical metallic tubing(EMT), sometimes called thin-wall, is commonly used instead of galvanized rigid conduit(GRC), as it is less costly and lighter than GRC. EMT itself is not threaded, but can be used with threaded fittings and clamp to it. Lengths of conduit are connected to each other and to equipment with clamp-type fittings. Like GRC , EMT is more common is commerical and industrial buildings than is residential applications. EMT is generally made of coated steel. |

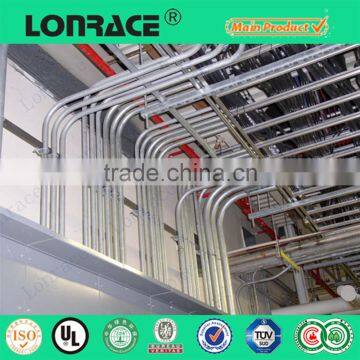

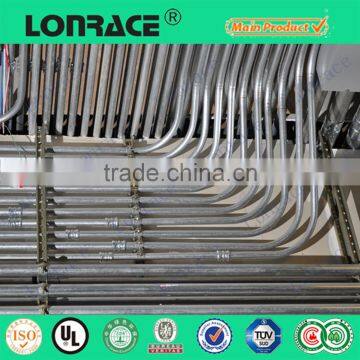

| Application |
|
|
To know how to install system, See it on youtube:
/watch?v=t5z8HC1PTag
| Common size |
| EMT(Electrical Metallic Tubing) Dimensiions and Weights | ||||||||
| Nominal Diamension | Outside Diameter | Wall Thickness | Length | Weight | ||||
| Size | Size | |||||||
| Inch | mm | Inch | mm | Inch | mm | FT | mm | KG/Meter |
| 1/2" | 16 | 0.706 | 17.93 | 0.042 | 1.07 | 10 | 3050 | 0.439 |
| 3/4" | 21 | 0.922 | 23.42 | 0.049 | 1.24 | 10 | 3050 | 0.669 |
| 1" | 27 | 1.163 | 29.54 | 0.057 | 1.45 | 10 | 3050 | 0.99 |
| 1-1/4" | 35 | 1.51 | 38.35 | 0.065 | 1.65 | 10 | 3050 | 1.469 |
| 1-1/2" | 41 | 1.74 | 44.2 | 0.065 | 1.65 | 10 | 3050 | 1.698 |
| 2" | 53 | 2.197 | 55.8 | 0.065 | 1.65 | 10 | 3050 | 2.17 |
| 2-1/2" | 63 | 2.875 | 73.03 | 0.072 | 1.83 | 10 | 3050 | 3.177 |
| 3" | 78 | 3.5 | 88.9 | 0.072 | 1.83 | 10 | 3050 | 3.879 |
| 3-1/2" | 91 | 4 | 101.6 | 0.083 | 2.11 | 10 | 3050 | 5.17 |
| 4" | 103 | 4.5 | 114.3 | 0.083 | 2.11 | 10 | 3050 | 5.75 |

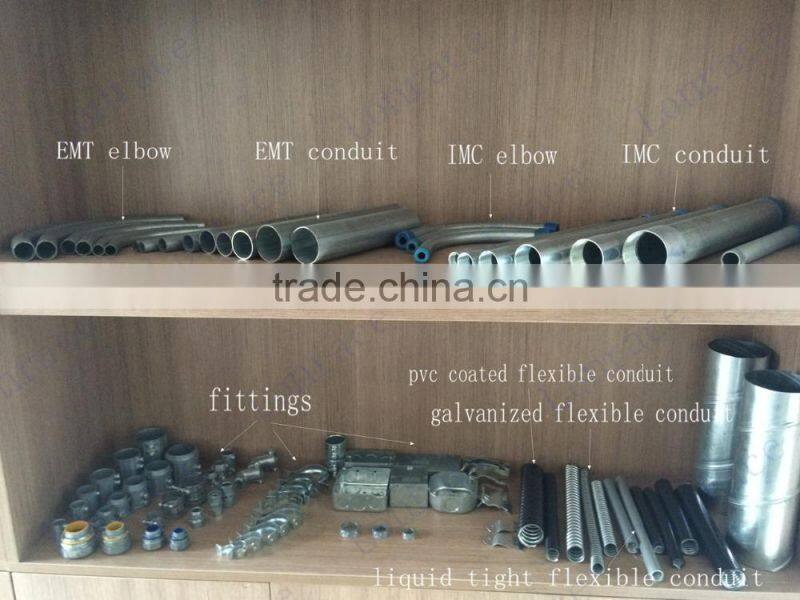

| Related products | |
 | |

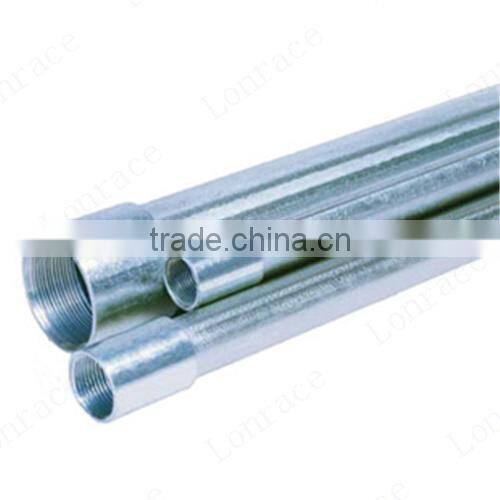

| Rigid Metal Conduit(RMC)---hot dipped galvanized | Galvanized rigid conduit(GRC)---highly galvanzied |
| | |

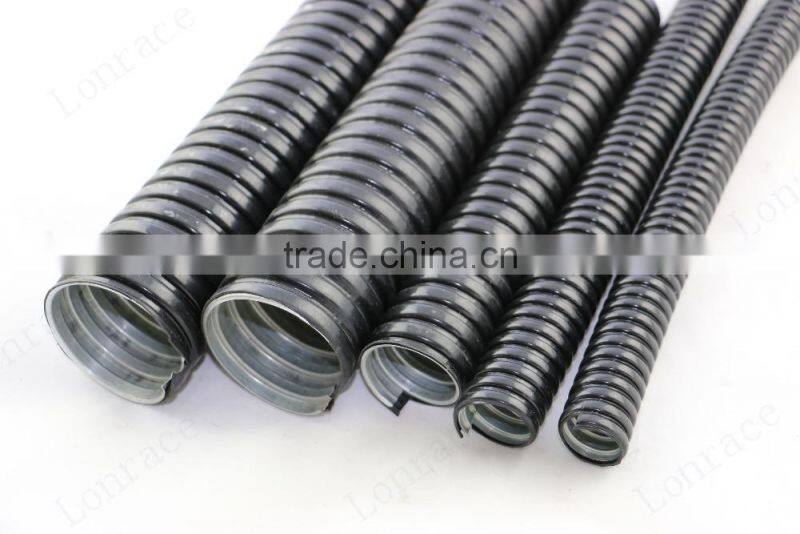

| Intermediate Metal Conduit(IMC)---It can be threaded directly | Flexible Metallic Conduit(FMC)---flexible and light |
| Cost relative to Rigid Galvanized Steel(RGS) conduit, 3/4 inch (21metric) size |
| Type | Labor | Weight | Material cost |
| RMC | 1.0 | 1.0 | 1.0 |
| Aluminum | 0.89 | 0.34 | 0.99 |
| IMC | 0.89 | 0.76 | 0.84 |
| EMT | 0.62 | 0.42 | 0.35 |
| PVC | 0.55 | 0.2 | 0.43 |
| Exact ratios of installation labor weight and material cost vary depending on the site of conduit, but the value for 3/4 inch (21metric) trade size are representative. | |||

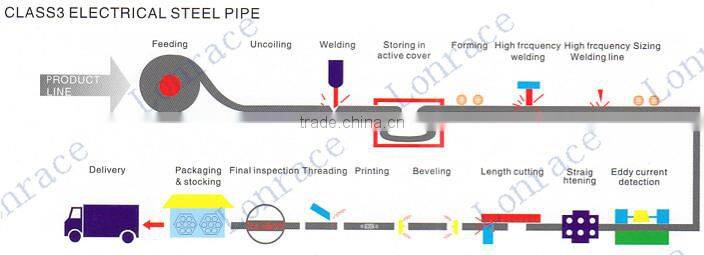

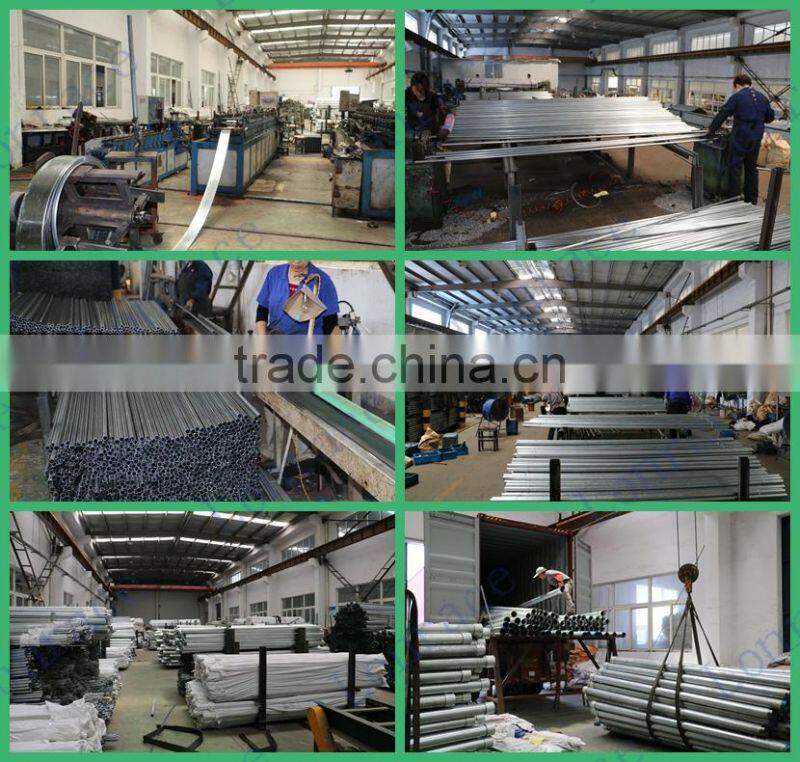

| Production |
|
|
| Why Choose Us? |
Jiangyin Lonrace International Trade Co., Ltd. is a leading company which specialized in dealing |
|
| Certification |
|
| Our Services |
1. 24 hours prompt reply by email 2. Other thickness & size also available on request 3. 30 years warranty (special material rate, installation in relative humidity 97% below & 050 ℃ in room, no deformation) 4. Free samples for your reference 5. Flexible terms of payment (T/T,L/C,DP and so on are all accepted) 6. Excellent after-sale service |
| FAQ |
1.Q:What is your delivery time?
|
