Tufting & Drilling Brush Making Machine
US$ 120,000 - 125,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Makng Brush
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 CNC Brush Making Machine Tufting Machine& Brush Making MachineUS$ 120,000 - 125,000MOQ: 1 Set -
5 Axis Tufting Machine 5 Axis Brush Making MachineUS$ 120,000 - 125,000MOQ: 1 Set
-
5 Axis 5 Head Drilling and Tufting Brush MachineUS$ 120,000 - 125,000MOQ: 1 Set
-
5 Axis 3drilling 2 Tufting Machine/5 Axis 5heads Brush Making MachineUS$ 120,000 - 125,000MOQ: 1 Set
-
5 Axis 3 Drilling 2 Tufting Machine/brooms Toilet Tufting Drilling Machine Brush Making MachineUS$ 50,000 - 55,000MOQ: 1 Set
Condition
New
Application
Makng Brush
Automatic Grade
Automatic
Production Capacity
900Holes/min
Place of Origin
Jiangsu, China
Brand Name
PAIGE
Model Number
PG-CNC5A5H
Voltage
3/380V
Power(W)
3KW
Dimension(L*W*H)
2.5M*1.4M*1.98M
Weight
2000KG
Certification
ISO 9001 CE
Warranty
1 Year
After-sales Service Provided
Overseas service center available
Tufting & Drilling Brush Making Machine
Contact Us
Specification
Maximum production speed |
900holes/minute |
The maximum filament length |
240mm |
Dia. Of tufting holes |
3.0mm -6.0mm |
Machine Size |
2.8m*1.85m*2.2m (L*W*H) |
Power Consumption |
5000W |
Driving Motor |
AC Servo Motor |
Power Supply |
Three-phase 380V |
Weight(gross weight) |
3500kg |
Product Sample
PG-CNC5A5H 5 Axis 5-Head Brush Drilling And Tufting Machine Feature:
| Standard Working Area of Working Table | X-axis x Y-axis x Z-axis x A-axis x H-axis = 100mm x 320mm x 100° x 40° x 120mm (Other size could be customized) |
| Material of Brush Handle | Plastic or wood; with flat, corrugated or fan-shaped surface, or cylindrical shape; |
| Material of Brush Filaments | PP, nylon, copper wire, stainless steel wire, bristle |
| Length of Filaments (Outside Holes) | 10mm - 120mm |
| Diameter of Brush Filaments | 0.08mm - 1.2mm |
| Diameter of Holes | 3mm - 5mm |
| Colors of Filaments | Either single color or two colors |
| Maximum Tufting Speed | 5 holes per second |
| Specifications of Machine Body | 2.2m(Length) x 1.6m(Width) x 2.5m(Height) |
| Motor (Power System) | With step-motor by default; also we could use servo-motor instead, if required by clients. |
| Data Input | Teaching-type: Operator manually puts tufting head into holes one by one, then presses “Enter” on hand-controller, the position of these holes will be saved by computer one by one. By this way, all data for tufting position has been entered and saved. |
| Digits-type: Operator manually enters digits(coordinates of X/Y axis) for tufting position. | |
| Touchable Screen | With 5.4'' touchable monitor controller; interface is in English or other language required by client, operating in dialogue-mode, which is quite simple and easy. |
| Speed Adjusting | Frequency-conversion stepless-adjustable speed |
| Qty of Programs Saved | It saves totally 84 programs for making different brushes. |
| Gross Weight | Around 2500KGS |
| Programming | PLC (Programmable Logic Controller) |
| Power Supply | 3-Phase 380V, or Single-Phase 220V; 50-60Hz; 600W |
| Replaceable Grippers | FMS type. Operator could make other kinds of brushes, as long as he changes grippers. |
| Tufting Mode | Staple-type (using round wires) |
| Packing | It’ll be packed into wood cases. |
| Machine Body: 2.2m(Length) x 1.6m(Width) x 2.5m(Height) | |
| Computer Box: 63cm(Length) x 61cm(Width) x 145cm(Height) |

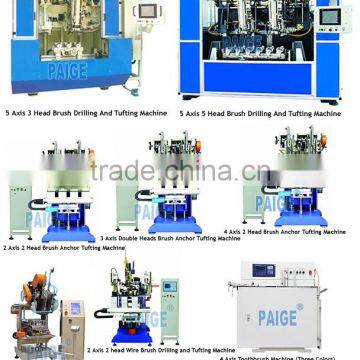

Product Show
