Home > Manufacturing & Processing Machinery > Commodity Making Machine > Brush Making Machine > 5 Axis 3 Drilling 2 Tufting Machine/brooms Toilet Tufting Drilling Machine Brush Making Machine

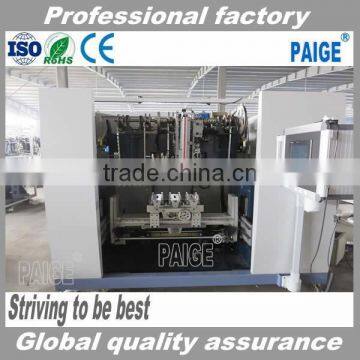

5 Axis 3 Drilling 2 Tufting Machine/brooms Toilet Tufting Drilling Machine Brush Making Machine
US$ 50,000 - 55,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Makng Brush
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PAIGE Brush Making MachineUS$ 12,000 - 125,000MOQ: 1 Set -
PAIGE Brush Making MachineNegotiableMOQ: 1 Set
-
PAIGE Brush Making MachineUS$ 120,000 - 125,000MOQ: 1 Set
-
2016 CNC Brush Making Machine & Tufting Drilling MachineUS$ 120,000 - 125,000MOQ: 1 Set
-
Tufting & Drilling Brush Making MachineUS$ 120,000 - 125,000MOQ: 1 Set
Condition
New
Application
Makng Brush
Automatic Grade
Automatic
Production Capacity
900Holes/min
Place of Origin
Jiangsu, China
Brand Name
PAIGE
Model Number
PG-CNC5A3H
Voltage
3/380V
Power(W)
3KW
Dimension(L*W*H)
2.5M*1.4M*1.98M
Weight
1500kg
Certification
ISO 9001 CE
Warranty
1 Year
After-sales Service Provided
Overseas service center available
Specification
Maximum production speed |
900holes/minute |
The maximum filament length |
240mm |
Dia. Of tufting holes |
3.0mm -6.0mm |
Machine Size |
2.8m*1.85m*2.2m (L*W*H) |
Power Consumption |
5000W |
Driving Motor |
AC Servo Motor |
Power Supply |
Three-phase 380V |
Weight(gross weight) |
3500kg |

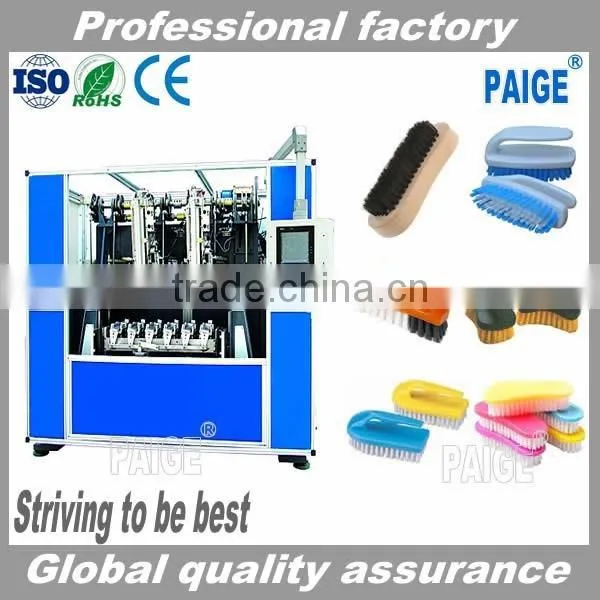

Product Sample
Technology
PG-CNC5A3H 5 Axes 3-Head Brush Drilling And Tufting Machine Feature:
| Model | PG-CNC5A3H 5 Axes 3-Head Brush Drilling And Tufting Machine |
| NO. of axis | 5-axis |
| Qty of heads | 3 Heads,2 drilling heads and 1 tufting head. |
| Setting of Worktable | high-precision straight-line rail and ball screw,steady and durable. |
| Material of Brush Handle | Polyethylene, polystyrene, return materials, wood |
| Material of filaments | PP,PET,PVC,STEEL WIRE |
| Diameter of filaments | 0.08mm-1.2mm |
| Application | To make varieties of toilet brushes and radial brushes |
| The length of filament(outside the hole) | 15-110mm |
| Diameter of hole | 3.0mm-8.0mm |
| Colors of Brush Filaments | double colors |
| Maximum Drilling and tufting Speed | 450 holes/minutes |
| Max Speed | 15000n/min |
| High Speed Motor | Delta High-Speed Motor |
| AC motor | Delta Brake Motor |
| Type&Brand of Driver/Motor | Delta servo motor by default, can adopt some brand motor&driver requested by users. |
| Adjust Speed | Frequency-conversion stepless-adjustable speed |
| Replaceable Fixture | FMS type. It can be easily changed to make other kinds of brushes. |
| Head mode | Anchor or Staple |
| Programme Storage | Store 2000 programme,each can imput 100 thousand processing data. |

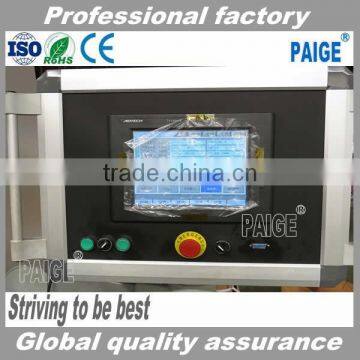

| Program System | CNC system,high precision,stability and efficiency |
| Dimension(L*W*H) | 2500mm×1400mm×1980mm |
| Gross weight | 2700kgs |
| Power | AC three phases 380, 50Hz |
| Total power | 3KW |
| Compressed Air Pressure | 0.6-0.8Mpa |
Product Show
