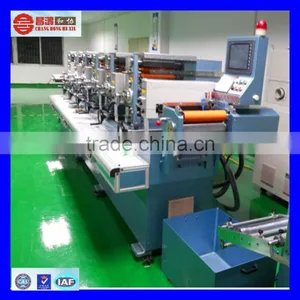

CH-300 China Roll to Roll Small Paper Sticker Label Letterpress Printing Machine Price
CH-300 China Roll to roll small paper sticker label letterpress printing machine price
1. Specifications:
| Property | CH-280 | CH-300 | CH-320 |
| max web size | 280mm | 300mm | 320mm |
| rotary printing area | 265*326mm | 275*326mm | 300*326mm |
| max intermittent printing area | 260*280mm | 275*280mm | 300*280mm |
| min intermittent printing area | 70*30mm | 70*30mm | 70*30mm |
| printing speed(times/hour) | 12000 | 12000 | 12000 |
| max unwinding diameter | 700mm | 700mm | 700mm |
| max rewinding diameter | 700mm | 700mm | 700mm |
| UV dirver power | 4.8kw | 4.8kw | 4.8kw |
| voltage | 380v | 380v | 380v |
| machine dimension(L*W*H/mm) | 4900*1620*1500 | 4900*1620*1500 | 4900*1620*1500 |
| machine weight | 5000kg | 5500kg | 5500kg |
| packing size | 20CBM | 25CBM | 25CBM |
2. Fetures:
1). Computer controlled ink supply system spreads ink stably and exactly.
2). Complete function and hight quality printing.
3). With YASKAWA servo system to control machine to run smoothly.
4). High speed and accurate registe, with high stability during accelerating
and deccelerating.
5). Low backlash high precise gear, high speed running, low noise.
6). UV dryer holder can automatichly switch power.
7). High speed, eye tracking is adopted to ensure high quality on secondary
printing, reduce printing waste.
8). Max intemittent printing dimension is 280mm, minimum dimension is 30mm.
3. Machine's printing labels:
4. Standard Configuration:
| UV machine | 6 groups |
| UV electricl controlling case | 1 set |
| main power transformer | 1 set |
| pasting machine | 1 set |
| cylinder | 12 pieces |
| UV rubbers | 6 groups |
| ink sink | 6 pieces |
| feeding box | 1 piece |
| rewinding box | 1 piece |
| driver | 8 sets |
main Servo motor (4.4kw * 2 pieces +1.3kw*6 pieces) | 8 sets |
| ink Servo motor | 6 sets(0.75kw) |
| intermittent Servo motor | 1 set(4.4kw) |
| feeding machine | 1 set |
| rewinding machine | 1 set |
| standard tools | 1 set |
5. Application:
Our products are suitable for label area of electronics, food, garment, chemical, toy, supermarket bar code industries...etc.

Our products are all packed with strong fumigated wooden case with film and canvas cover and strong container, all examed by 3 groups of inspection teams before packing. It usually takes about 30-40 days to delivery, we will give you every detail to assure you our delivery process.


Payment Terms | T/T, L/C, Western Union, Money Gram, Cash |
| Supply Ability | 10 sets/month |
| Delivery Time | 30-40 days |
| FOB Port | Shenzhen |
1. Factory:
We have 3 floors of total over 3000 square meters factory, first floor is assembly workshop, second floor is manufacturing workshop, third floor is storage.
2. Office:
We have both experience international and domestic sales team, Design apartment, Production apartment, QC apartment and HR apartment.
3. Our certificates:
Our products highly meeting CNCA's requirements of ISO9001:2008
4. Our Team:
We are a family of 50 young and experienced members, we also love to go out for climbing, swimming, playing games and party...etc.
5. Contact us:
Harick Zhong (sales manager)
Skype: live:zhq_20
Wechat: harick86
Cell Phone: 86-158 1863 1840
Office Phone: 86-755-2898 6010
Fax: 86-755-2898 6853
Website: http://cnchlm.en.china.cn
/
